Arduino Experimenters Kit

Solarbotics has teamed up with Oomlout to produce their clever Arduino Experimenter's Kit here in North America.

This open-source project features 12 experiments that are step-by-step simple, and with a full-colour template overlay for your breadboard, you're unlikely to go wrong. We've combed through the documentation to make it as clear and concise as we can, and have re-posted it back up to the archive at http://www.ardx.org (ain't open-source cooperation great?).

We've selected hardware for our version of the kit that easily meets or exceeds the requirements of the Experimenter's Kit. Of particular note are:

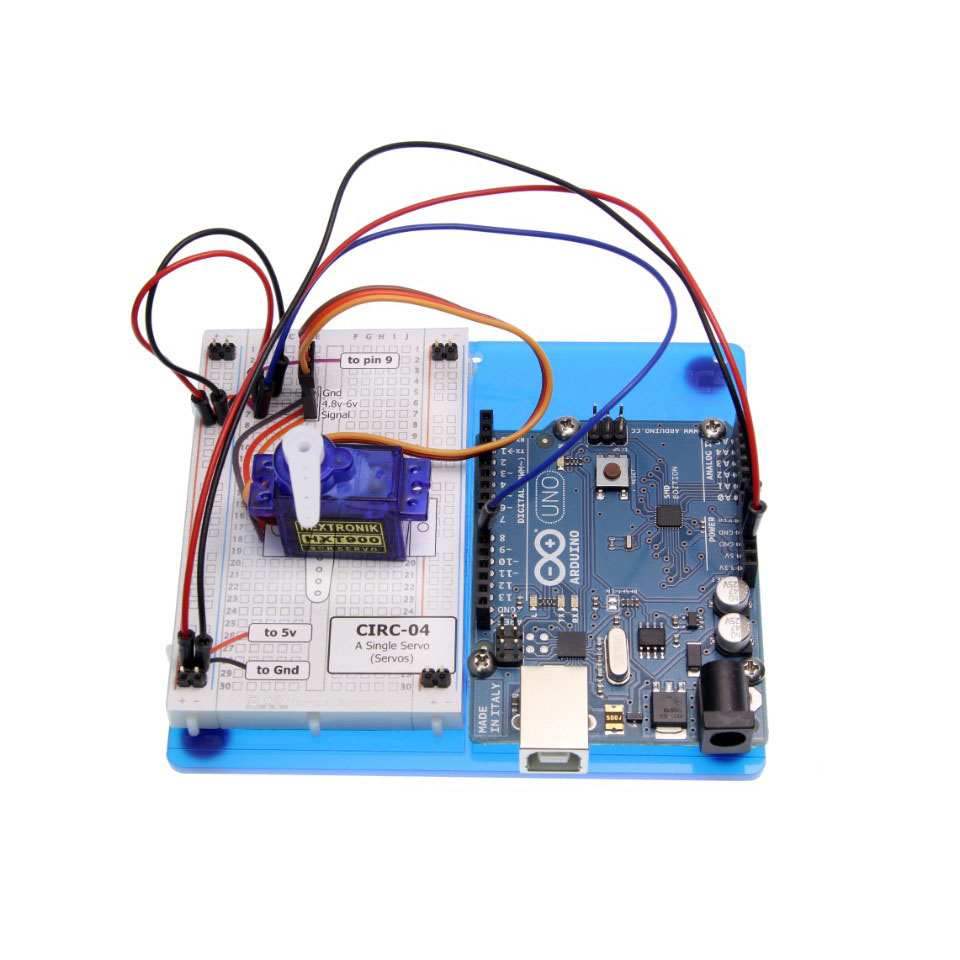

• 12 color breadboard template overlay sheets. These make identifying the right place for each connection very simple.
• The 5-cell AA battery pack holder. 7.5V means the 5V power regulator on your Arduino/SB-Freeduino will run perfectly with no fear of a voltage sag, even comes with 2.1mm Barrel jack

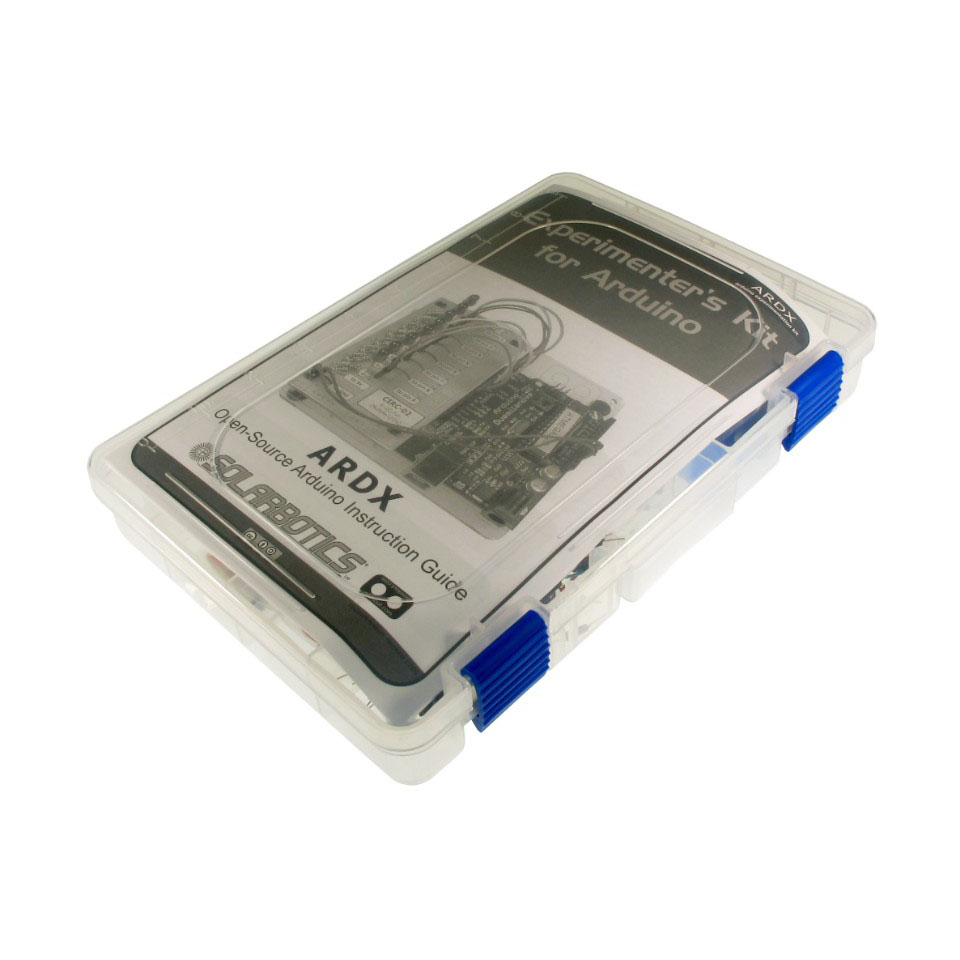

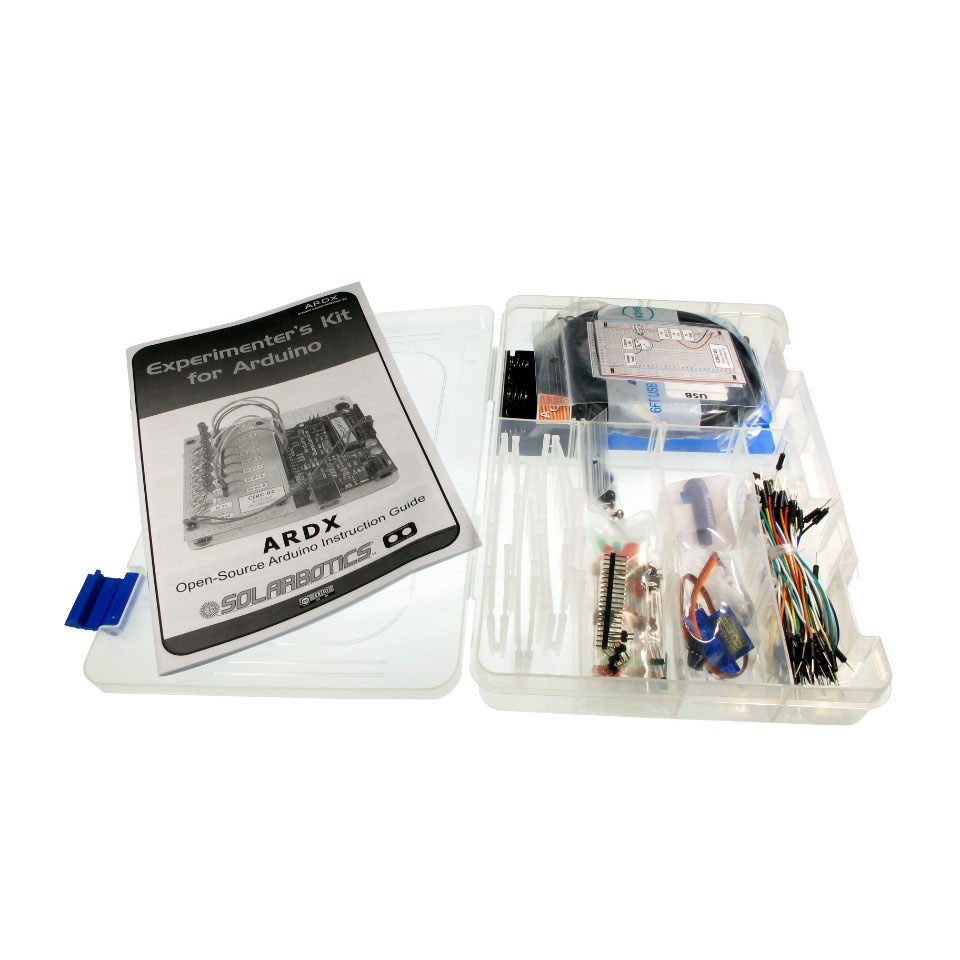

• Large 11 x 7" plastic case has plenty of space for your whole experimenter's package - even the manual!
• Larger-than-normal 10 x 6x3/8" 32-page manual is easier to read than a folded 8.5x5.5" half-sheet manual

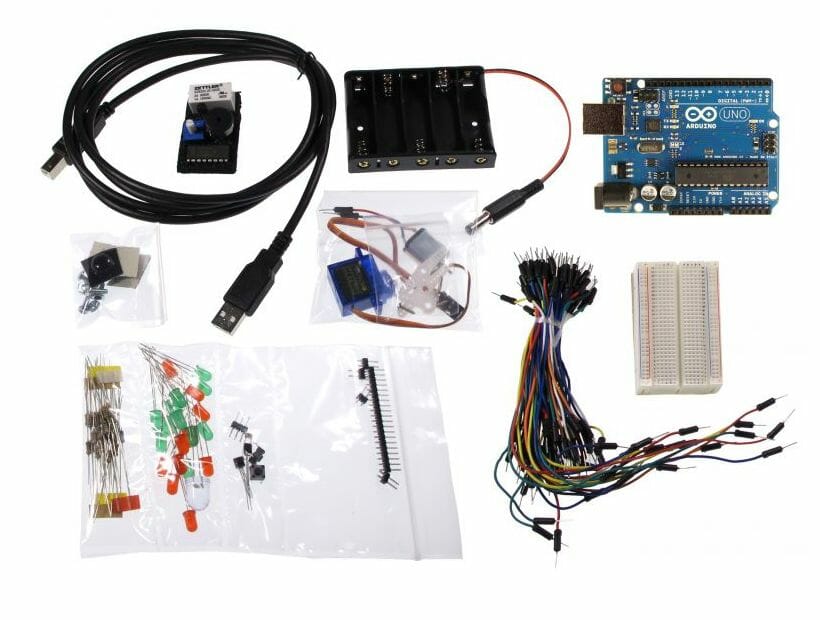

The rest of the kit contains a veritable plethora ("lots of neat things"), including:

• Arduino UNO R3 with ATmega328
• 300 point half-size breadboard
• Laser cut acrylic baseplate (usually translucent blue in color)
• USB A-B cable
• 70-piece flexible jumper wire bundle (these are nice)
• 10 x Red 5mm LEDs
• 11 x Green 5mm LEDs
• 1 x massive 10mm blue LED
• 1 x DC Motor
• 1 x Micro Servo
• 1 x 74HC595 8-bit shift register IC
• 1 x Piezo Speaker/sensor element
• 2 x Pushbuttons
• 1 x 10k Trimpot with handy finger-sized knob
• 1 x Photo resistor (CdS cell)
• 1 x TMP36 Temperature sensor
• 1 x 5V DPDT relay
• 2 x 2n2222 transistors
• 25 x 560ohm resistors
• 3 x 2.2k resistors
• 3 x 10k resistors
• 2 x 1N4001 diodes
• Arduino-to-acrylic base mounting hardware
• 4 x 2-pin male header (for pinning the templates to the breadboard)
• 2 x 20-pin male header (for pinning more templates to other breadboards)
• RGB LED (Common Cathode)

It's a great way to get started with Arduino. With a laptop (with the Internet to download code samples) and this bundle, you really can just sit down and get right to work! You can find the code for the circuits under our resources tab. The code is Arduino 1.0+ tested and found compatible.

Download your own documents here:

• ARDX Manual (web or print resolution PDF, or CorelDraw X4 original)
• Breadboard Instruction Templates (PDF compilation, Original individual files)

• [Documentation]: Circuit Sheets (pdf)
• [Documentation]: ARDX Instruction Manual - Sept 11, 2012
• [Documentation]: ARDX Instruction Manual - May 11, 2012
• [Documentation]: ARDX Instruction Manual in Russian - May 15, 2012
• [Documentation]: ARDX Circuit sheets Russian - May 15, 2012
• [Documentation]: ARDX Instruction Manual - November 9, 2010
• [Sample Code]: ARDX Code repository (online at TXT)
• [Sample Code]: CIRC Collection of Oomlout Arduino sample code
