TMP36 Temperature Sensor

35045

3.20 USD
Qty
Price
1
$3.20 ea.

This is a tidy analog temperature sensor with a functional range of -40°C to +125°C


Description [Hide]

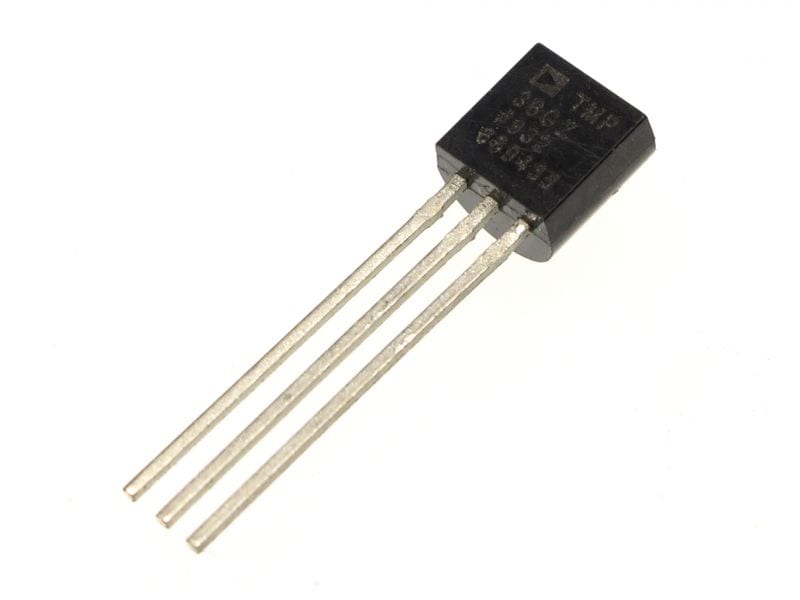

The TMP 36 series of temperature sensors are pretty handy. This one comes in a tidy TO-92 transistor-like package. Feed it Vcc and ground and you get a precise analog output indicating the temperature in degrees C. The accuracy is pretty good too, being ±2°C over a range of -40° to +125°C.

The output is 10mV per °C, with 25°C reading 750mV. Tie this to your microcontroller's A2D port, and you are set to go!

Specifications

  • 3-Pin TO-92 package
  • Analog output
  • Operating Temperature: -40C to 125°C
  • Operating Supply Voltage: 2.7V - 5V nominal, 5.5V Maximum
  • Output can be modified to read °F with 4 resistors and a 1.23V zener
  • Use of a 0.1µF bypass capacitor on the Vin line is recommended for best stability
