Standard LED

SLED

0.30 USD
Qty
Price
1
$0.30 ea.
20+
$0.15 ea.

Standard sized diffused T1-3/4 LEDs, great for indicators. Available in green, red, yellow, white and blue.


Description [Hide]

There's always a need for a nice, diffused tinted LED as an indicator. These 5mm (T1-3/4 LEDs) are the same as we use in many of our kits.

These LEDs have a nominal working current of 20mA, with a maximum rating of 30mA continuous and 150mA pulse (1/10 duty cycle @ 1kHz). They are still quite visible with only 5mA.

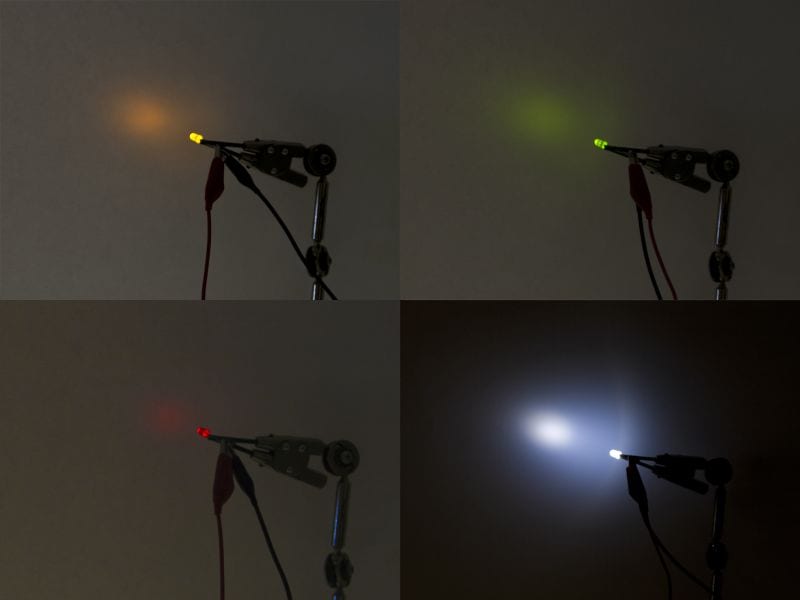

Available in:

  • Green (100mcd, 2.20Vfwd)
  • Red (220mcd, 1.95Vfwd)
  • Yellow (30mcd, 2.1Vfwd)

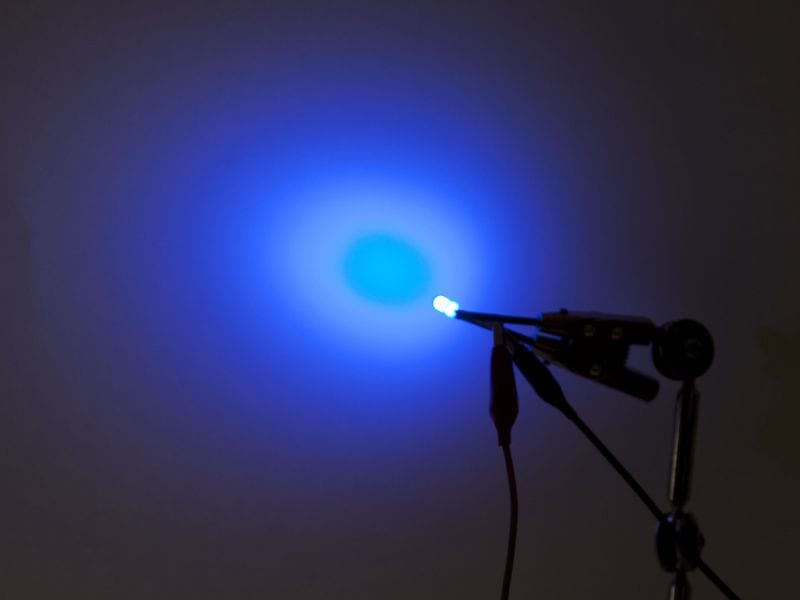

  • Blue (900mcd, 2.7Vfwd)
  • White (2000mcd, 2.7Vfwd)
