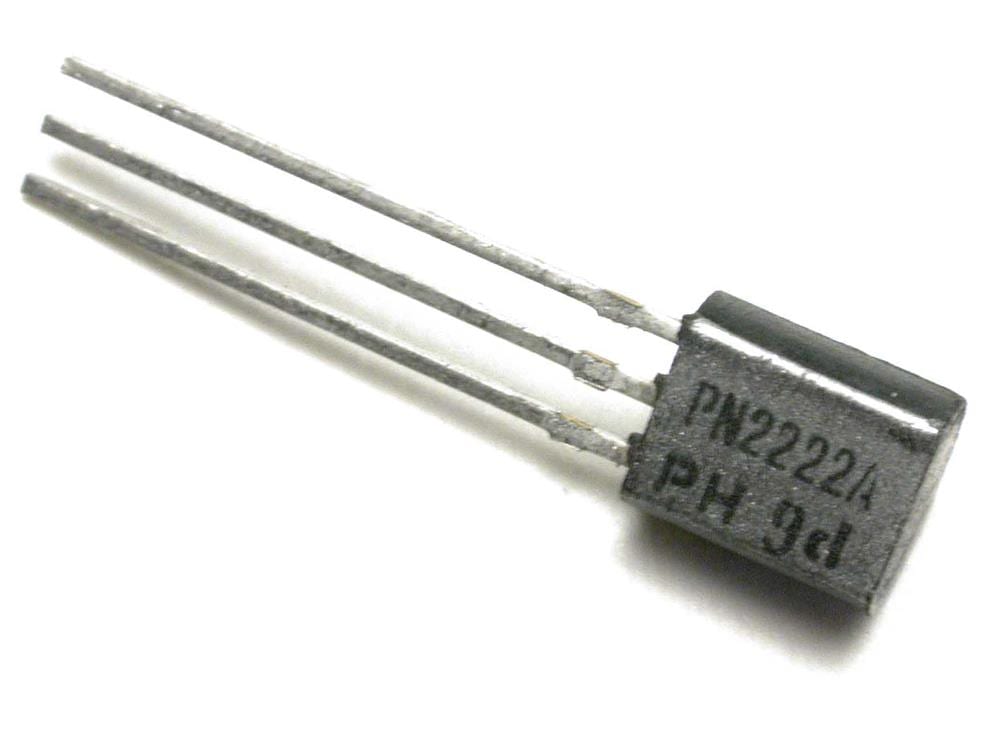

PN2222 NPN Transistor

TR2222

0.15 USD
Qty
Price
1
$0.15 ea.

This NPN transistor is similar to the TR3904, but can deliver higher maximum current at better efficiency ratings.


Description [Hide]

This NPN transistor is similar to the TR3904, but can deliver higher maximum current at better efficiency ratings. Got a demanding design? Substitute one of these into where the TR3904 should go.

The PNP-style complement to this transistor is the TR2907.

Documentation [Hide]
