Ultra Bright 10mm LED

UBLED10

1.00 USD
Qty
Price
1
$1.00 ea.
10+
$0.60 ea.

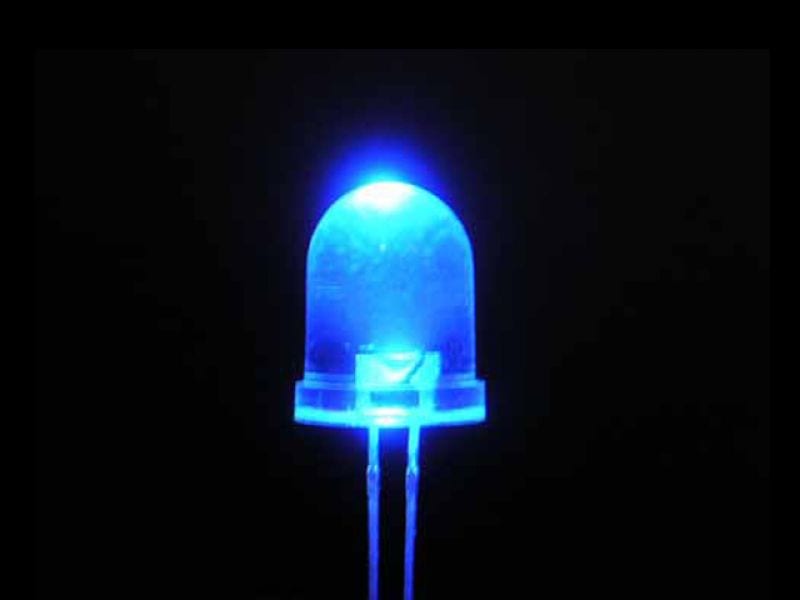

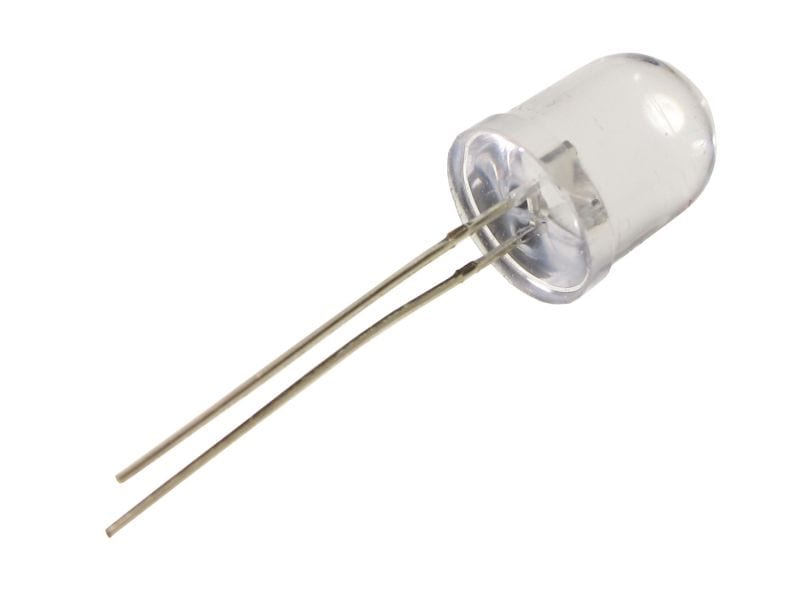

These 10mm LEDs are big and bright.


Description [Hide]

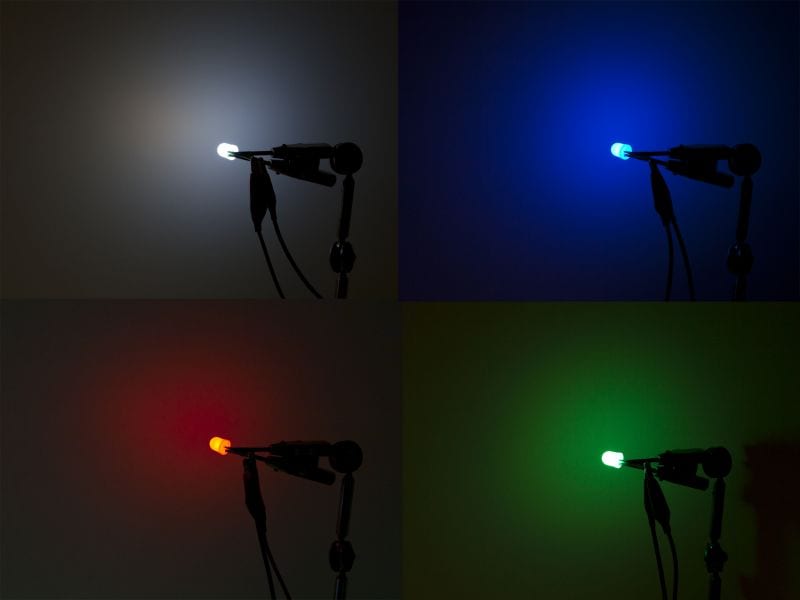

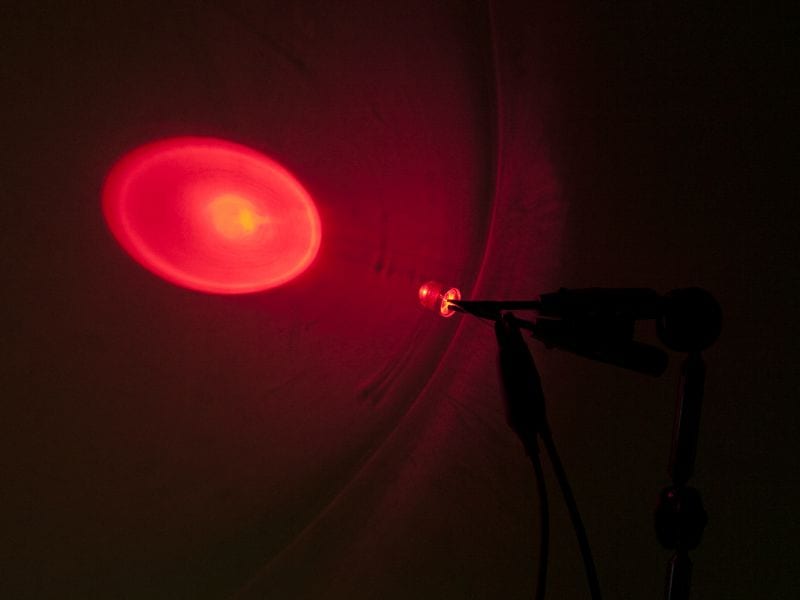

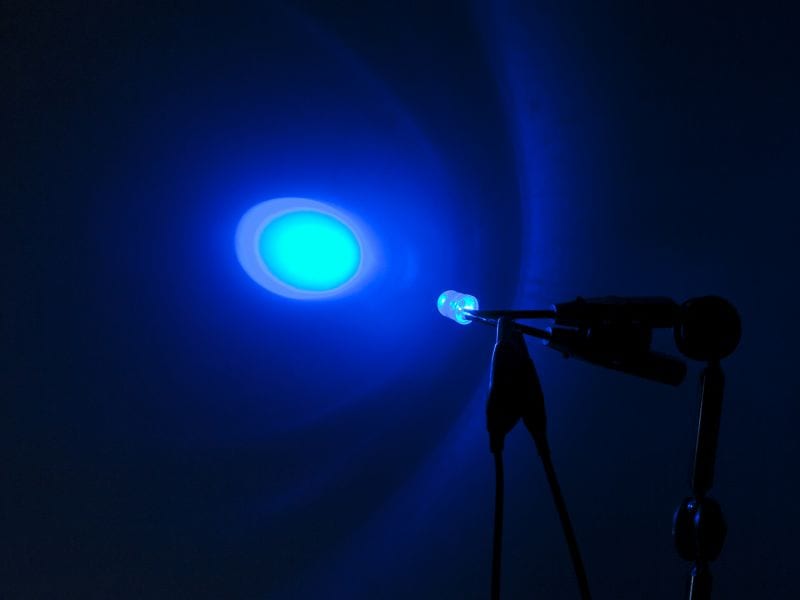

Looking for a monster LED? These are pretty hefty. I've seen bigger, but this is pretty nice at 10mm (13/32") diameter. And being clear and focused, they throw a pretty decent beam!

Specifications

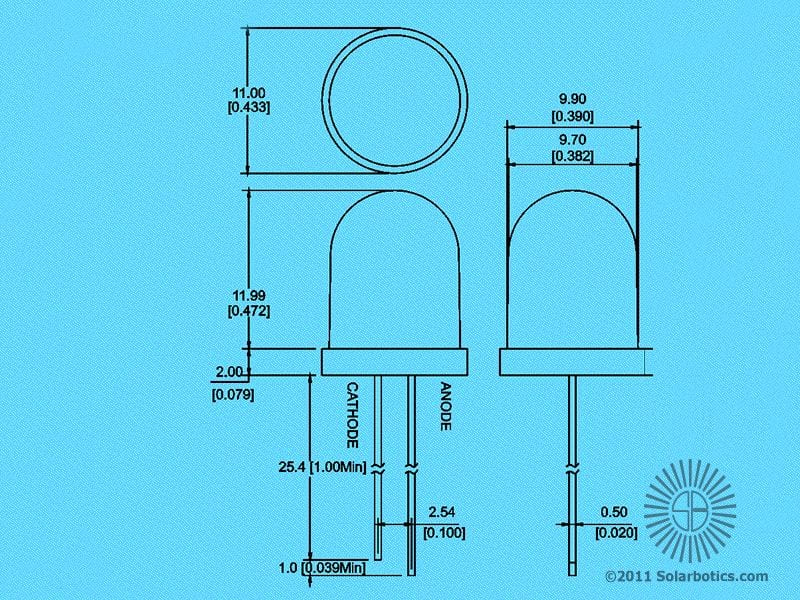

  • 10mm diameter
  • Forward Voltage (V): 3.2 ~ 3.8
  • Reverse Current (uA): <=30
  • Luminous Intensity Typ Iv (mcd): 8000 (blue), 10000 (red)
  • Life Rating: 100,000 Hours
  • Viewing Angle: ±10°
  • Absolute Maximum Ratings (Ta=25°C)
  • Max Power Dissipation: 80mw
  • Max Continuous Forward Current: 30mA
  • Max Peak Forward Current: 75mA
  • Reverse Voltage: 5~6V
  • Lead Soldering Temperature: 240°C (<5Sec)
  • Operating Temperature Range: -25°C ~ +85°C
  • Preservative Temperature Range: -30°C ~ +100°C
