12.5mm Piezo Buzzer

17855

2.00 USD
Qty
Price
1
$2.00 ea.

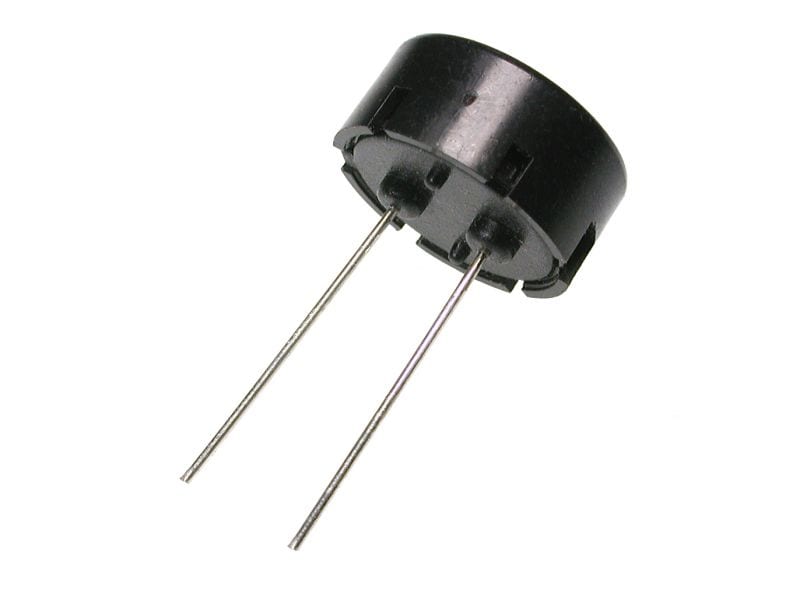

Here's an unamplified Piezo element for breadboarding sound applications (making or detecting sound!)


Description [Hide]

Piezo elements are actually one of the coolest crystals you'll play with. Flex them, they generate a voltage (pretty high, actually). Pass power through them, and they'll flex. Do it fast enough, and they'll start to make a sound! So besides making annoying little beepy noises, you could use it as a sensor to detect a knock or other similar vibration.

Specifications

  • Operating Voltage: 1.0 ~ 20.0V
  • Rated Voltage: 3.0V
  • Diameter: Ø12.5mm
  • Total Height: 6.3mm
  • Capacitance: 15,000pF
  • Current Consumption: ≤2mA
  • Resonance Freq: 4,000Hz
  • Sound Pressure Level at 10cm: ≥75db
  • Connection Method: Pin Type
  • Self Drive: No
