Standard Motor

RM1A

2.95 USD
Qty
Price
1
$2.95 ea.
2+
$2.35 ea.
25+
$2.22 ea.
100+
$2.10 ea.

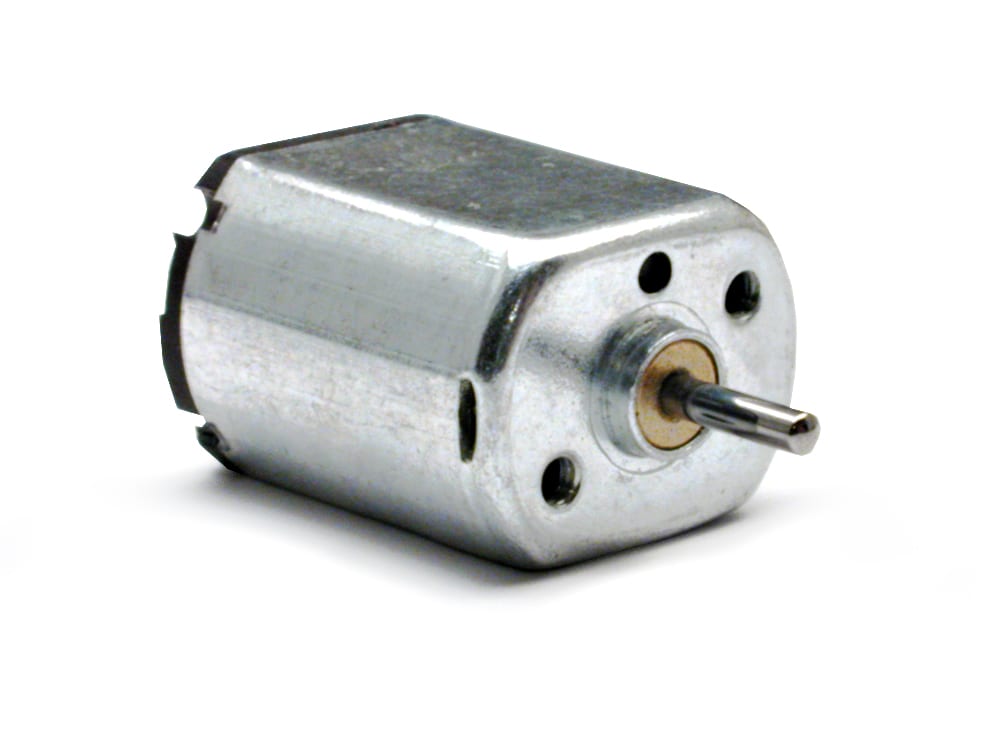

This "030" form factor motor replaces the old Mabuchi FF-030 we used to stock, and is still a good candidate for torquey Solarengine and small battery-powered robots.


Description [Hide]

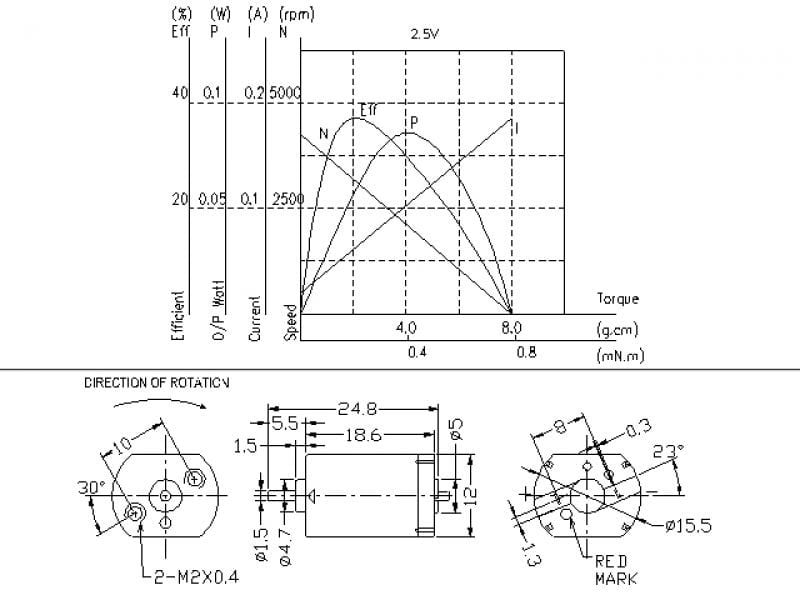

This 030 form-factor motor with precious-metal brushes offers pretty good performance for a flat-sided motor. Offering 7400 rpm @ 4.7V, drawing 150mA and giving 4 gm*cm torque (17 @ stall), it's very similar to the Mabuchi FF-030 it replaces.

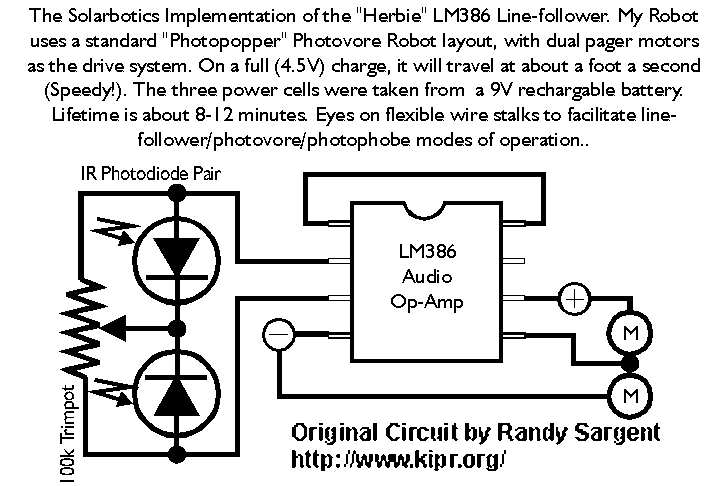

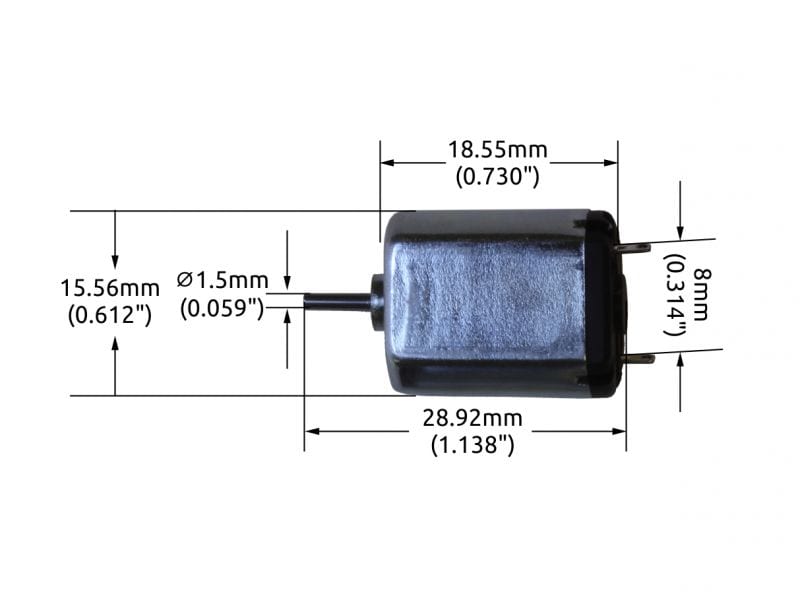

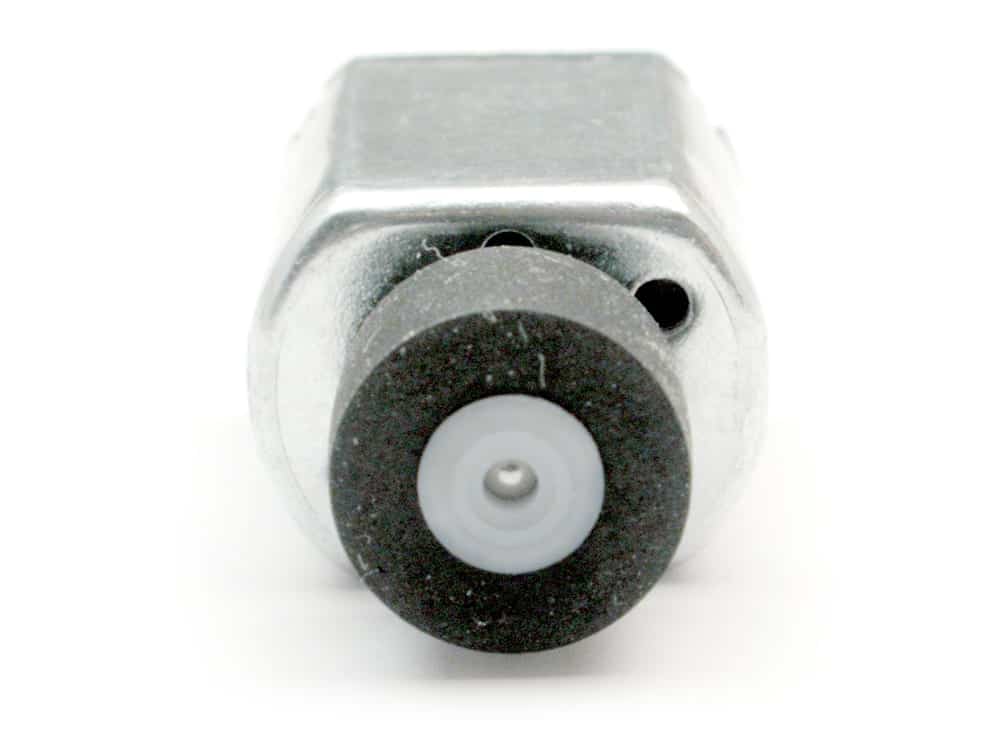

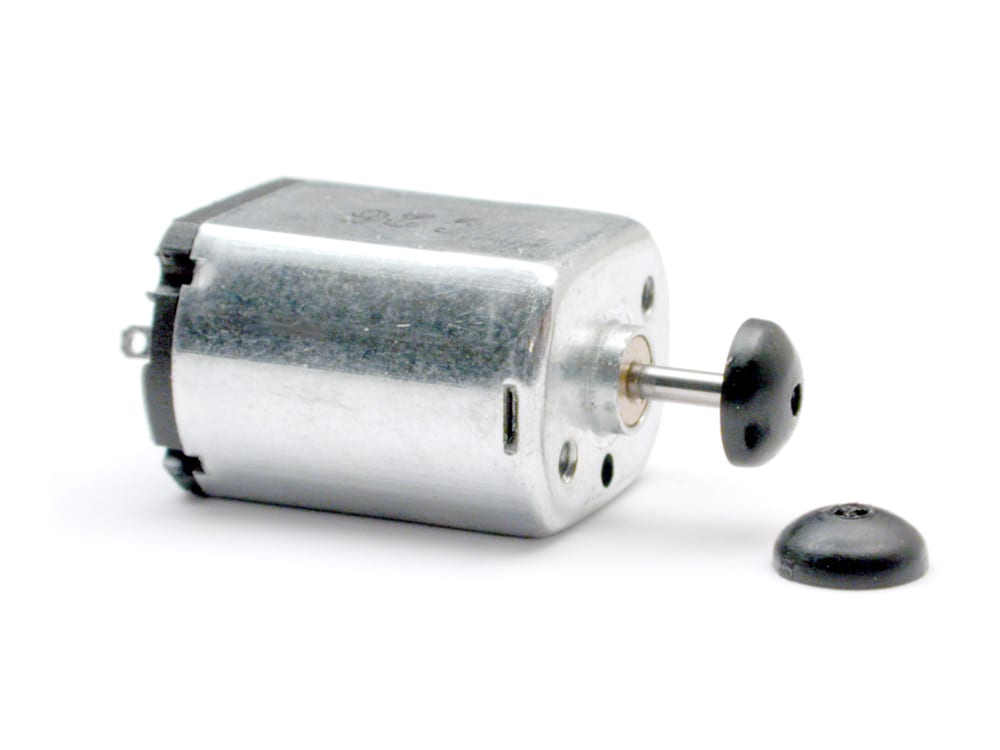

We're finding it runs a bit longer per solarengine discharge than the old motor, and the 1.5mm output shaft is a perfect match for our RW 10mm diameter wheels. A touch of glue, and you've got an excellent tilted wheel platform (like for Herbie robots)! And if you need a friction fit, the "PRet" (Plastic retainer) press-fits on too.

Wheel and retainers sold separately.
