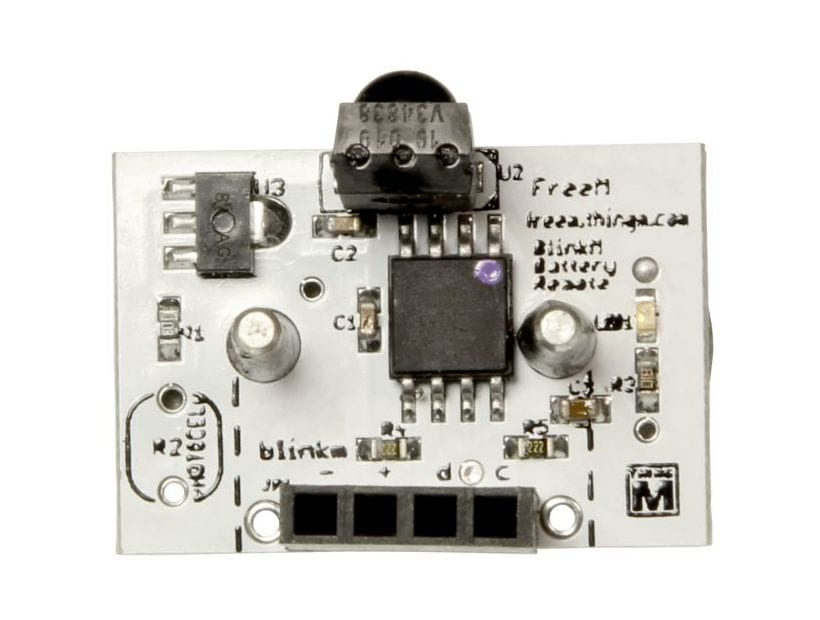

FreeM Infrared Controller

When used with the CtrlM transmitter, the FreeM creates an invisible, wireless, & low-power method to control BlinkMs, MiniMs, or any I2C device up to 45 feet (14m) away (and can be easily modified for much greater range).

It's designed to work transparently with the rest of the BlinkM product line. Plug a CtrlM into a LinkM, point it at a FreeM, fire up the BlinkM Multitrack sequencer, and start programming it from afar.

It's perfect for wearables, architectural lighting, stage sets, mood lighting, RC car lights, or anywhere else that's difficult to get to.

Plus, as a bonus, it works with any TV remote that supports the SICS (Sony remote control) protocol, which includes nearly every universal remote made, such as our SYSTEM Universal Remote. Using basic TV remote keys it'll turn BlinkMs off and on, change their brightness and hue, and run user-definable scripts.

• Wireless I2C controller for all BlinkM products up to 45 feet (14m) away.
• Supports all BlinkM I2C commands.
• When used with CtrlM, FreeM acts as one end of “virtual wire” connecting a LinkM USB adapter or Arduino to BlinkMs mounted in locations where data cabling is impossible or undesirable.
• Every FreeM can control an arbitrary number of BlinkM devices.
• One CtrlM can control any number of FreeMs.

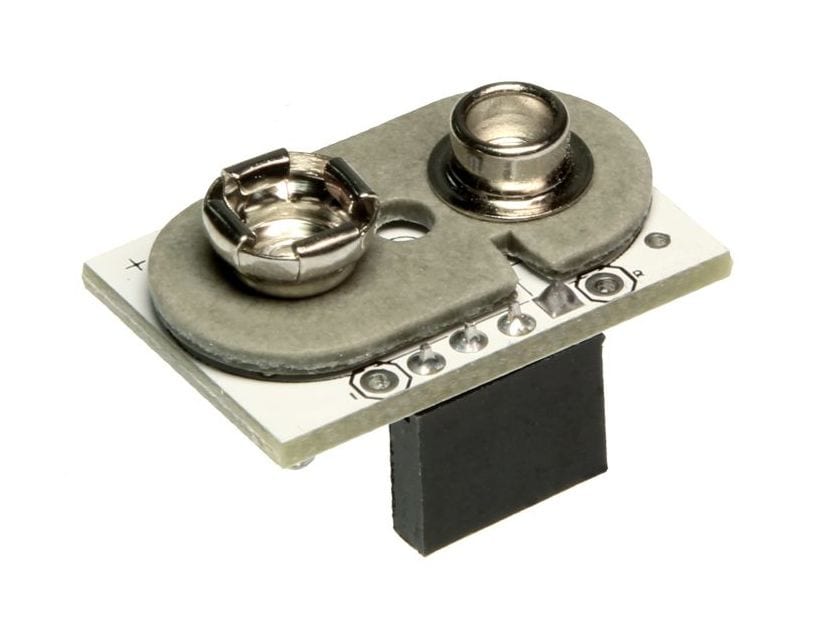

• Built in power supply with 9V battery connector
• Reconfigurable IR network address in CtrlM mode.
• Firmware upgradable.
• Supports 12-bit SICS (Sony) TV remote protocol with built-in behaviors including moodlight, beacon, hue select, flashlight, script play.

Downloads

• BETA DOCUMENTATION
• Code

Note: To program the SYSTEM Universal Remote to a Sony remote code in order for it to work with the FreeM just press and hold the SET button for 4 seconds until the LED becomes solid, then hit TV, 0, 0, 0, 1 and the LED should blink 4 times to let you know it's been programmed.
