AXE Stack-18 Kit

28570

$19.95

USD

Qty
Price
1
$19.95 ea.
2+
$17.96 ea.

This great kit lets you easily program your PICAXE 18M2 IC on a breadboard with many additional features.


Description [Hide]

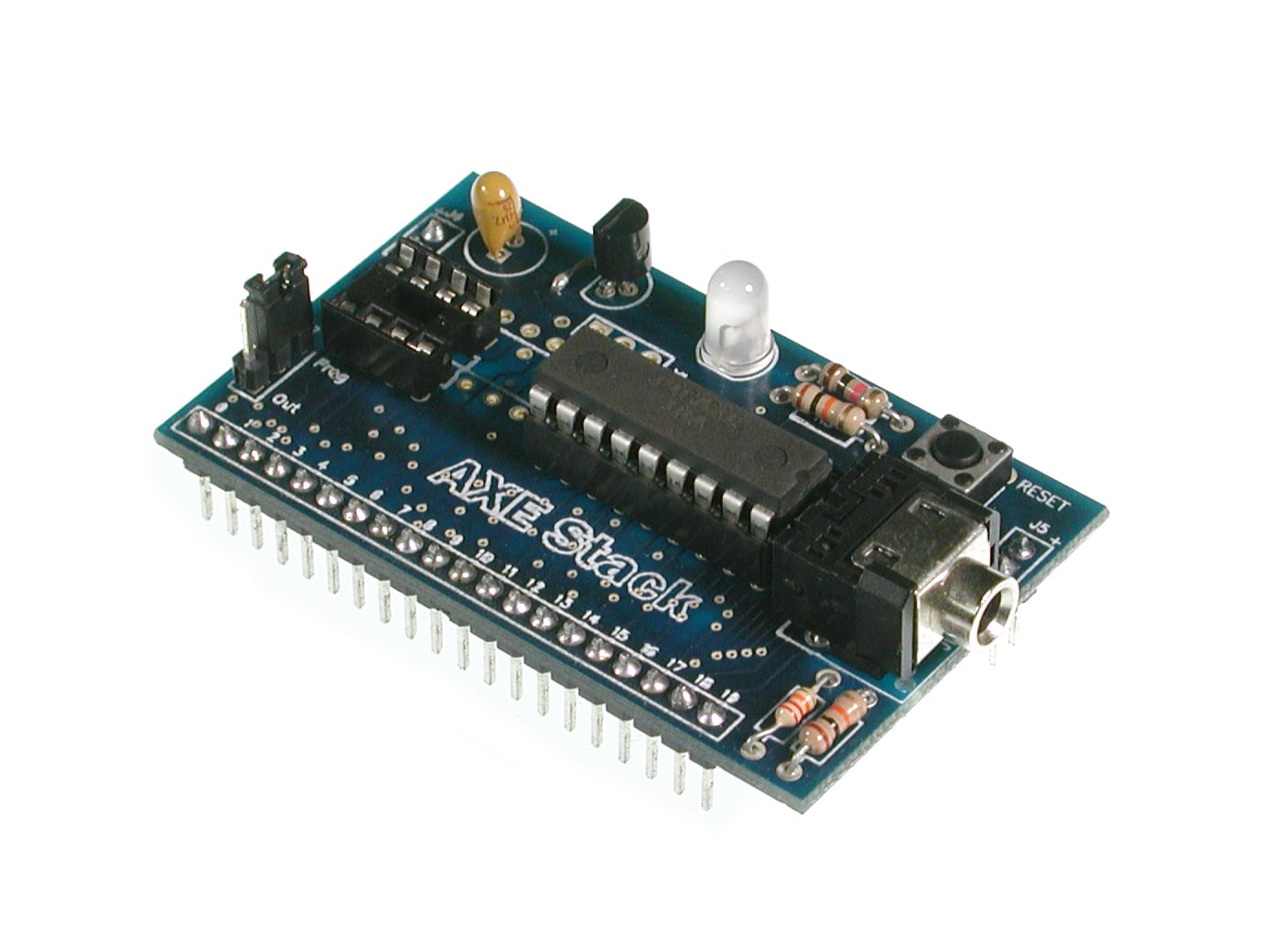

The  'AXE Stack-18 carries on the tradition of our popular "stack" products with the 18-pin PICAXE 18M2 microcontrollers. As with our other stacks, the 'AXE Stack-18 mounts on any breadboard for total prototyping flexibility.

Features:

  • High quality double-sided circuit board with plated-through holes for easy assembly.
  • Over-voltage and reverse-polarity protected on-board voltage regulator circuit.
  • Bi-Colour power indicator LED (green=correct, red= reversed).
  • Mounts on any breadboard for easy and expandable prototyping.
  • RESET button
  • Provides a sturdy platform that protects the PICAXE IC from damage -ideal for the classroom!
  • PICAXE-18M2 IC included.

What's In the Kit:
  • Circuit board and all components (including a PICAXE-18M2 microcontroller)
  • Assembly instructions
  • Programming tutorial

What's Not Included
  • Programming cable*
  • Breadboard*

* The 'AXE Stack-18 Starter Kit includes these items

Assembly Time:
Beginner: 20 Min.
Expert: 10 Min.

There is a 28-pin version of this stack here (SKU 28580).

Resources:

PICAXE Manual Part 1 - Getting Started (.pdf)
PICAXE Manual Part 2 - BASIC Commands (.pdf)
PICAXE Manual Part 3 - Interfacing Circuits (.pdf)
Programming Editor (.exe)



PICAXE is a Trademark of Revolution Education.
