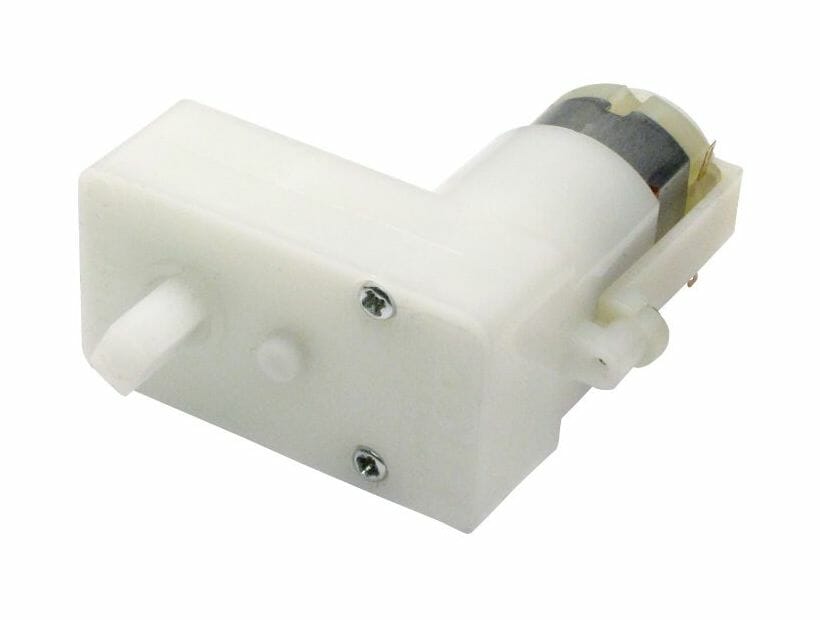

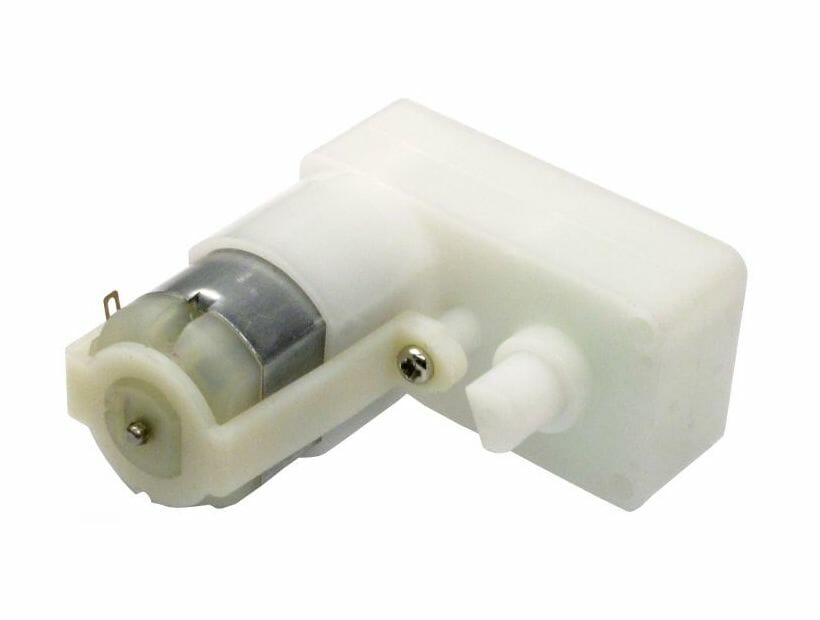

Gear Motor 2 - 224:1 Offset Shaft

GM2

$5.75

USD

Qty
Price
1
$5.75 ea.
20+
$5.25 ea.
50+
$4.95 ea.
100+
$4.80 ea.

This 224:1 gearmotor is very comparable to a hobby servo for power, at a fraction of the cost!


Description [Hide]

Solarbotics is the sole commercial outlet for these impressive 224:1 gearmotors. They are very comparable to a hobby servo for power, at a fraction of the cost!

Mechanical Features:

  • 7mm output shaft with double-flat outputs
  • Secondary output shaft (D) for encoders (not meant for rotational loads)
  • Built-in safety ratchet clutch set for 60 in*oz torque (easily modified for full "locked-up" operation)
  • Built in mounting holes
  • 55x48x22.7mm (2.17x1.89x0.894")
  • 31.4 grams (1.11oz)
  • 3-6VDC nominal operation

3V Features:

  • 24RPM
  • 48.6 in*oz torque
  • 40mA free-running current
  • 400mA stall current

Based on the original design by Mark Tilden for use in the B.I.O.Bugs & RoboSapien, these motors are the next generation with a variety of improvements such as dual output shafts and a lower current motor.

Check out this quick tutorial for how to modify the GM2 from a torquey slow 224:1 ratio to a speedy 14:1 ratio.

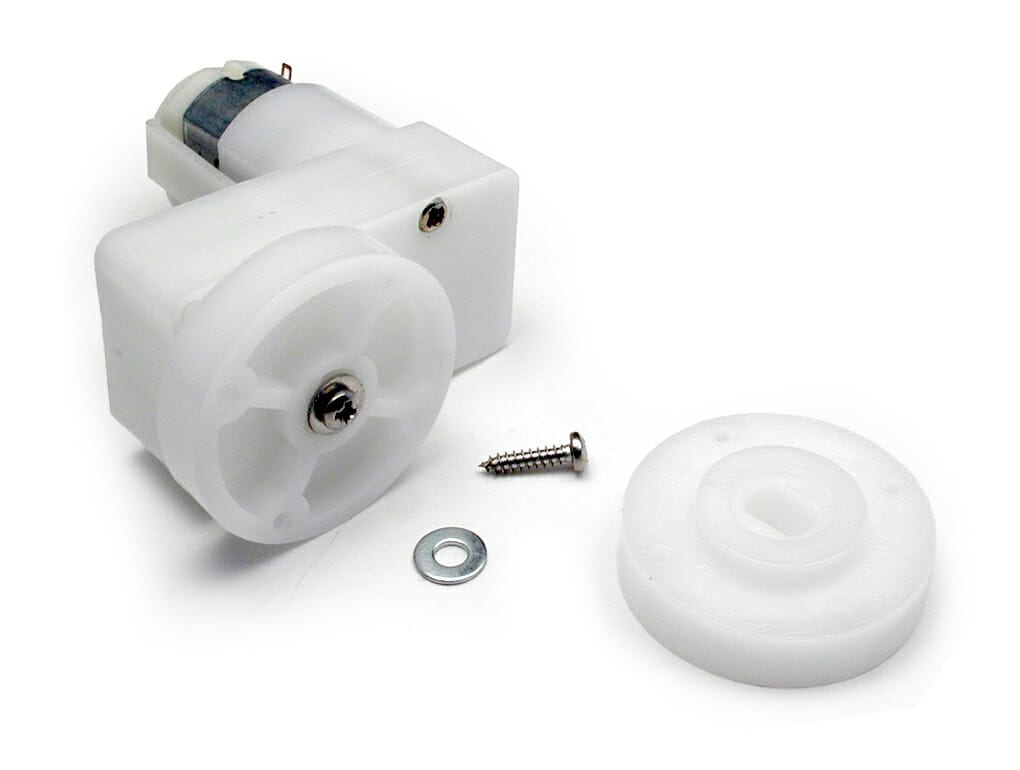

Do you need to mount something to the shaft of the motor? Try the GMW - it's a very effective platform for a variety uses. Alternatively, you'll also find that a #2x1/4" SMS screw will provide a snug fit for your need.

(Motors are sold individually, wheels are not included)
