Instructables MSE Bundle - BattleSymet/MiniBall
60010
23.00
USD
Qty
Price
1
$23.00 ea.
2+
$19.48 ea.
25+
$18.71 ea.
50+
$18.51 ea.
100+
$18.35 ea.
This bundle contains the electronic components for building either the Miniball or Battle Symet Instructables.
Description [Hide]

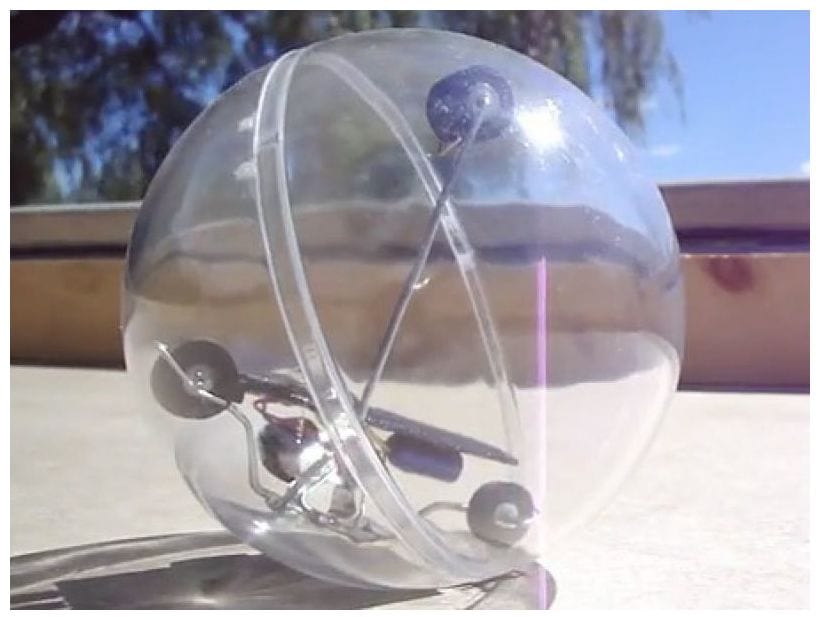

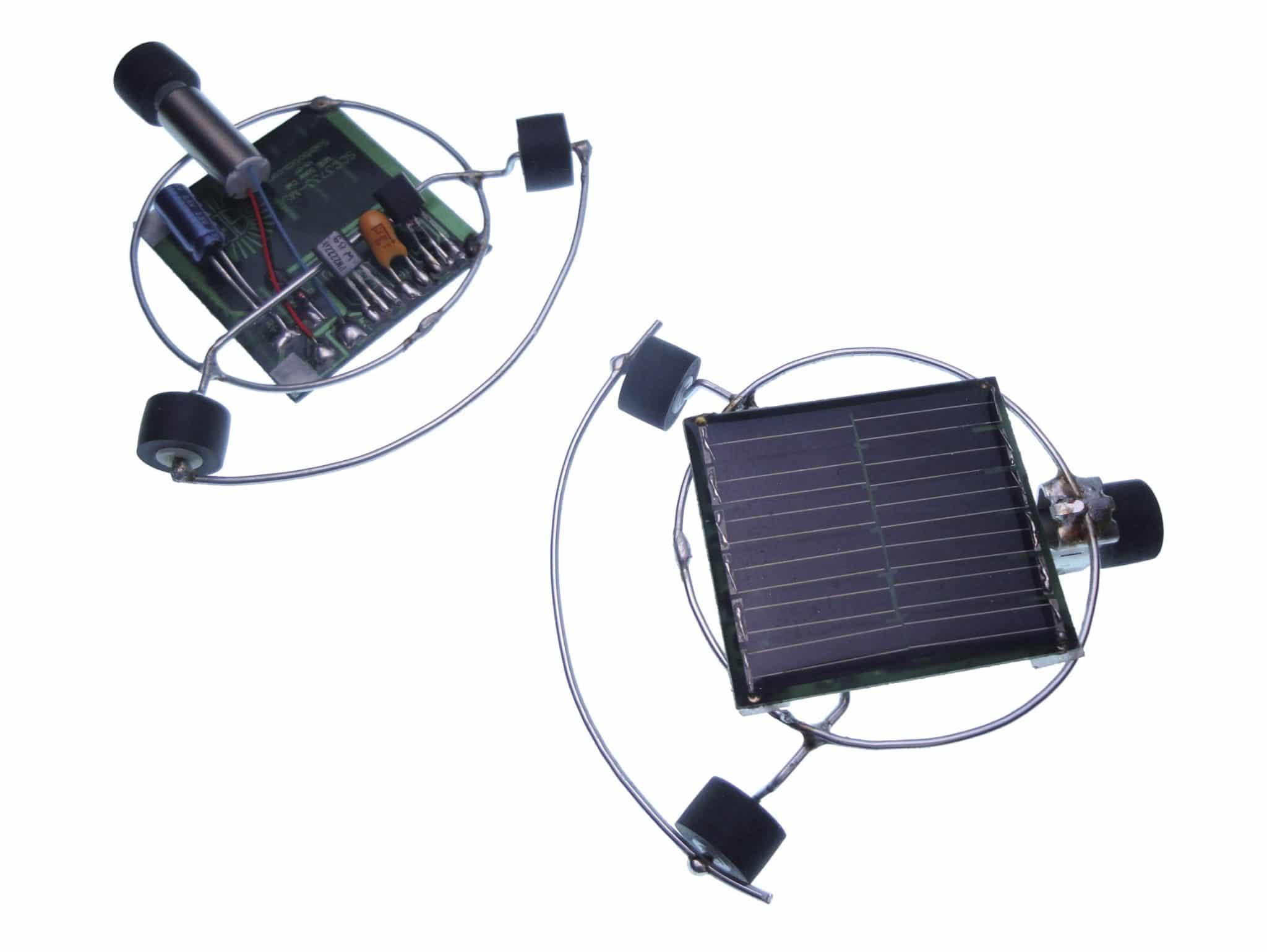

Jerome Demers is our intern, and he just had to build a miniball project for Instructables. And then he couldn't help but make another Instructables, this time for a Solar Powered Battle Symet. Both these projects use the same parts, so we've put together this parts bundle to set you on your way.
Mechanical Parts
- 1x Transparent Plastic Sphere (80mm - get from craft or hobby shop) (Not included - needed for Miniball)
- 1x High-efficiency Coreless Motor
- 1x Motor Mounting Clip
- 3x Rubber Wheels on Nylon Hubs
- 2x Paper clip (Not included - needed for both Miniball and Battle Symets)

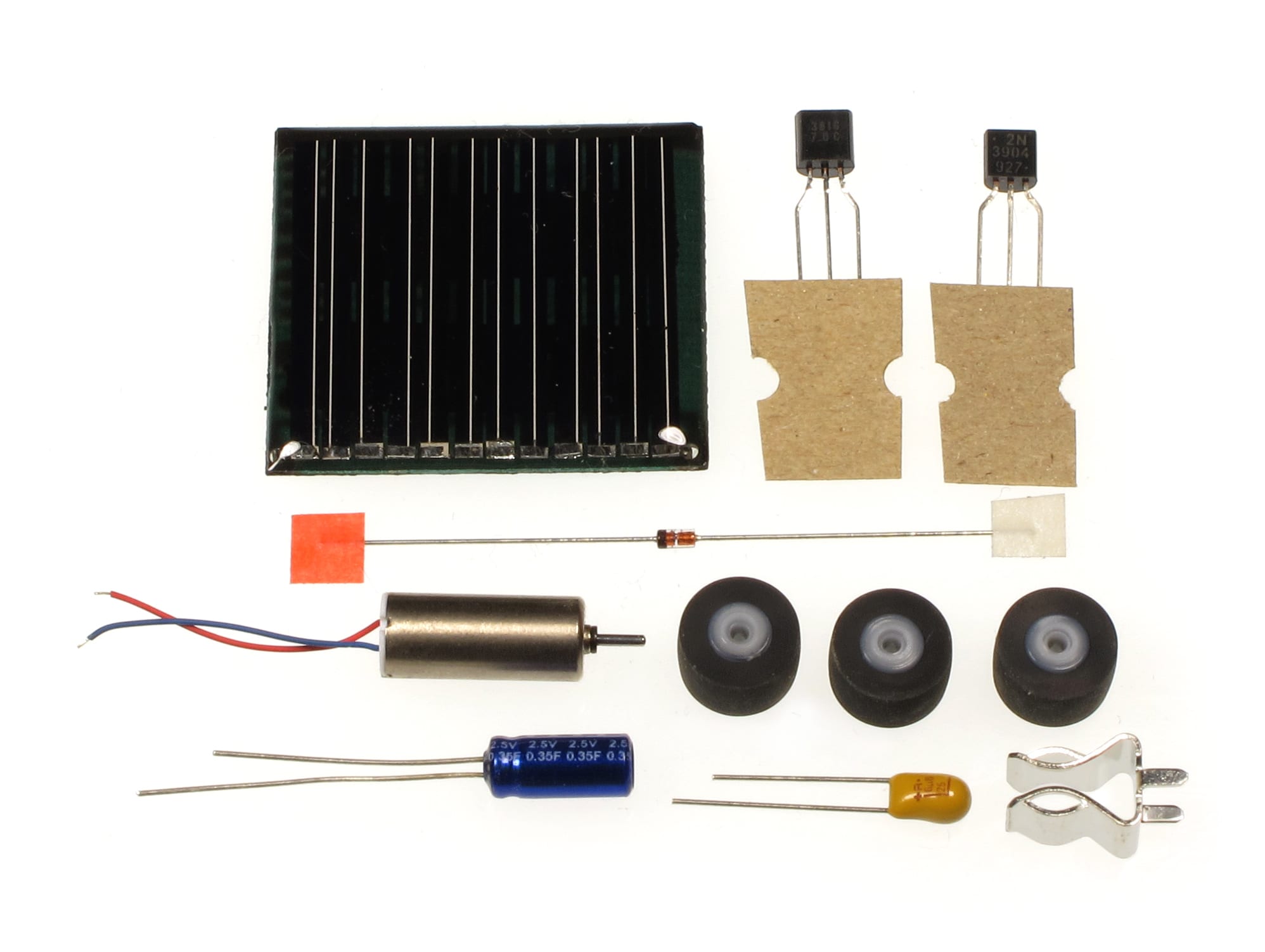

Included Parts
- 1x 37 x 33mm Solarbotics Solar Cell
- 1x 0.35F 2.5V Capacitor
- 1x 6.8µF Electrolytic Capacitor
- 1x 3904 Transistor
- 1x 1381 Voltage Trigger
- 1x Signal Diode 1N914, 1N4148
- 1x 3cm (1.25") Length twisted red/black wire*
Tools Required (Not included)
- Soldering equipment (soldering iron / solder / cleaning sponge)
- A pair of Needle-nose pliers (43060 or 43061)
- A pair of Flush Cutters (43040)
- Safety Glasses - VERY important when clipping and snipping!
