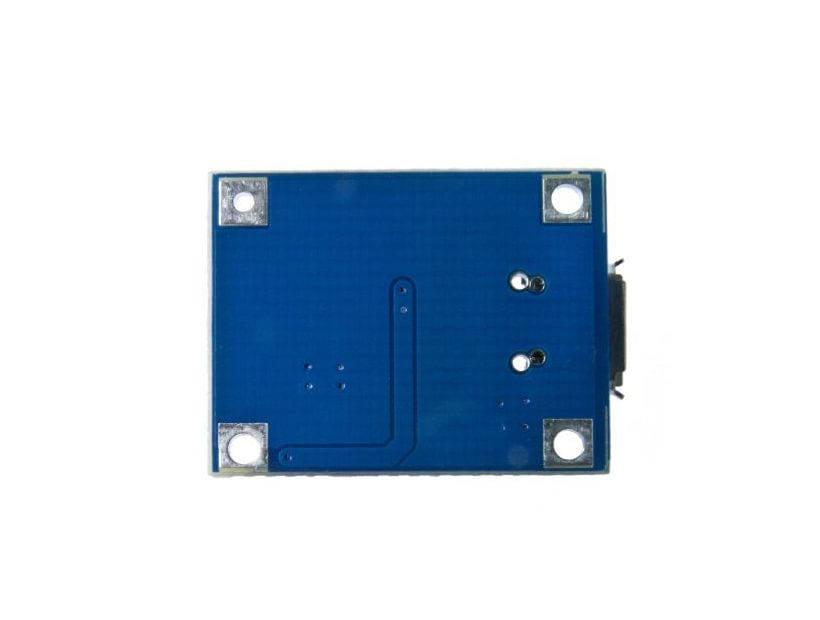

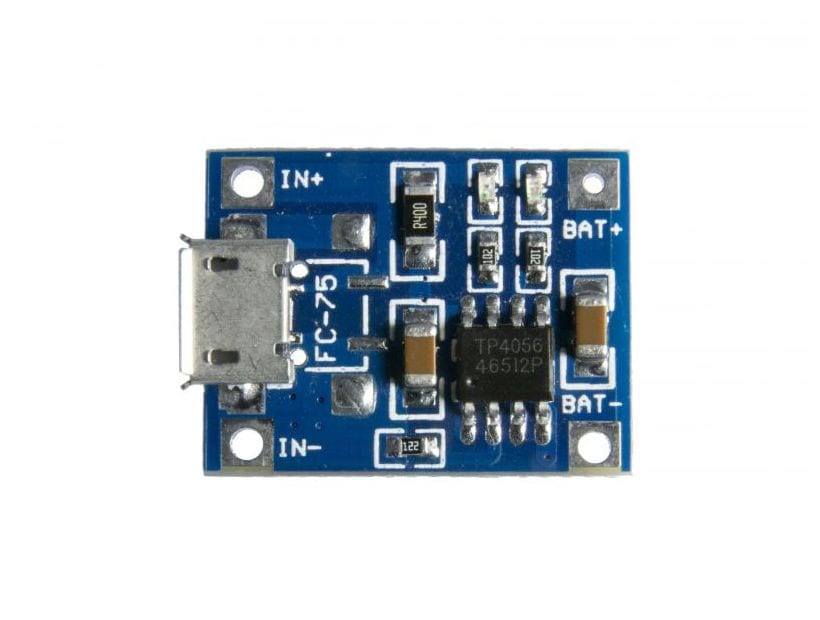

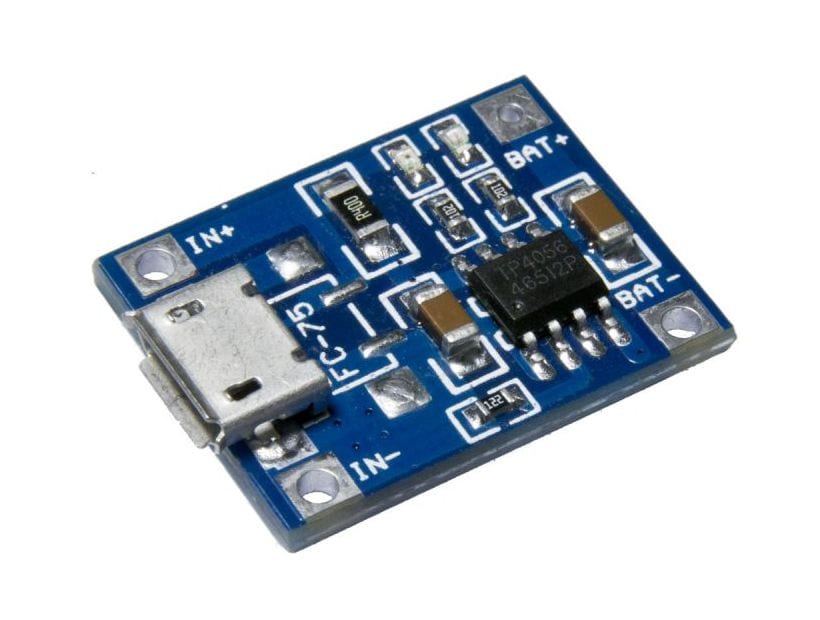

MicroUSB 1A LiPoly Charging Module

Most portable projects are now using LiPoly battery technology, but it requires a more finicky method of charging. This TP4056-based module makes it trivial to add a dedicated single-cell charger to your project, powered by any microUSB power source.

Features:

• Single-cell charger for Lithium chemistry cells
• Preset for 1000mA, but is configurable down to 30mA by resistor change
• MicroUSB interface
• Red/Green Charging/Charged LED indicators

Specifications:

• NanJing Top Power ASIC TP4056 Standalone Li-Ion charger
• 4.5~8V VDC input
• 25x19mm (1x0.75")

Note: In default configuration, this charger will pull as much as 3.7W from a USB port, which are nominally rated 2.5W on a standard PC. Make sure you use a USB charger or powered USB hub.

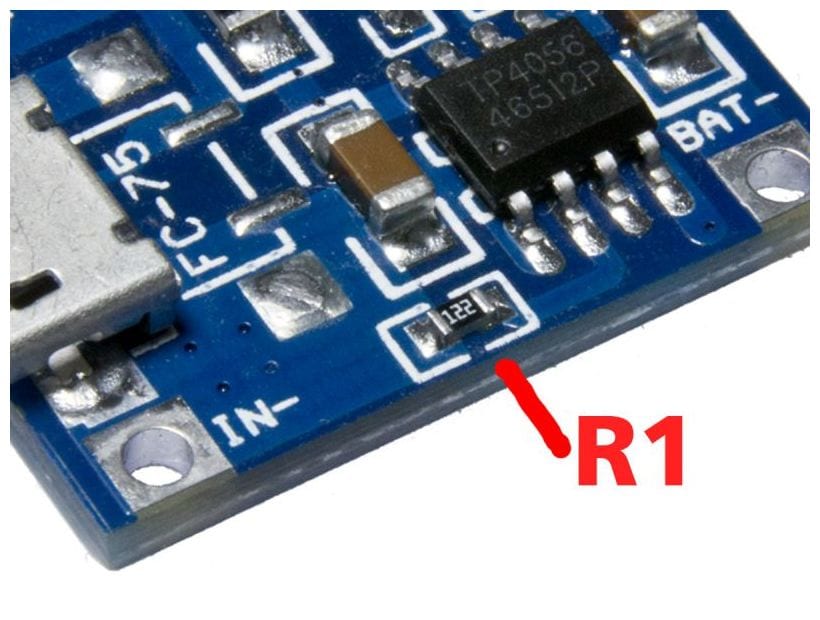

Cells are becoming very tolerant of high-current charging, but for the best battery life, use the 1/3 rule of thumb. A 1000mAh cell is best treated by charging at approximately 300mA. If desired, adjust the maximum charge rate of your module by replacing the small SMD resistor "R1" with a value listed below:

R1（K）      I(mA)
30              50
20              70
10             130
5              250
4              300
3              400
2              580
1.66          690
1.5           780
1.33         900
1.2(std)    1000
