Ethernet-SPI/Bus Module

31050

24.95 USD
Qty
Price
1
$24.95 ea.

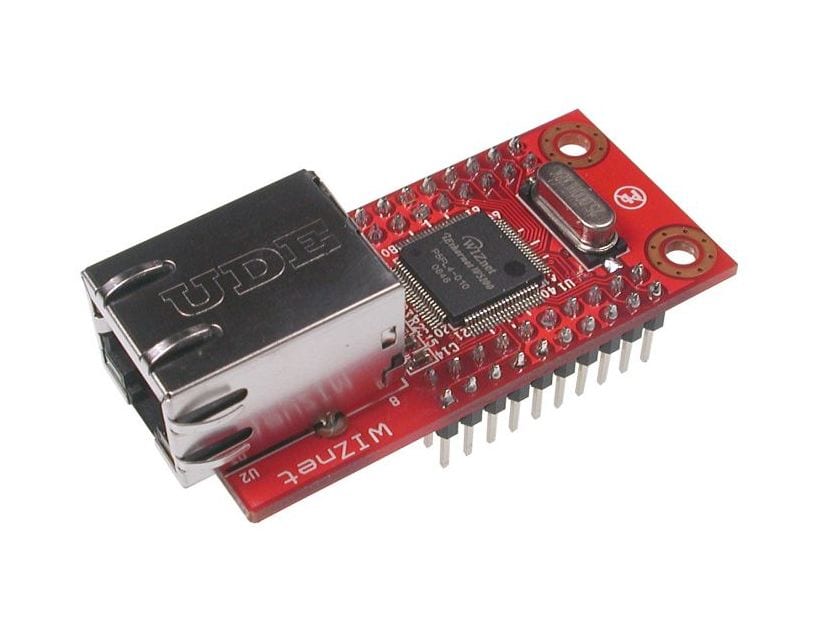

Add ethernet connectivity to your project with the Wiznet WIZ811MJ module. Ready to go on a convenient board!


Description [Hide]

We're carrying the WIZnet WIZ811MJ module to support the Adafruit Ethernet Shield Kit. It's an assembled and tested breakout board for the W5100 ethernet chip that has a built-in TCP/IP stack. What's that mean? It talks networking, so you don't have to know how (or know that much to make it work).

Please note that these modules are unlike XPort XBee modules, these communicate over SPI (not serial), and don't have a built-in DHCP client.

Features

  • Plug-in module
  • Usable without H/W design for W5100, Transformer and RJ-45
  • Available of fast evaluation of W5100 and MCU in the target board
  • Supports MCU BUS and SPI Interface
  • Supports Auto MDI/MDIX (auto detection of crossover)
  • Supports network status indicator LEDs - FDX, TX, RX, Link, Collision

Specifications

Architecture

  • TCP/IP - W5100
  • PHY - Embedded in W5100
  • Mag Jack - PPT RJ113BZ
  • Interface - 10/100 base-t ethernet (auto detection)

Network Protocol: TCP, UDP, IP, ARP, ICMP, IGMP, PPOE, Mac
Dimensions: 55.5 x 25.0 x 23.5mm
Connector Type: 2.54mm pitch 10x2 header
PCB Through Hole: Two PCB Through Holes (3.00mm)
SPI Signal Pin: Separate SPI Signal Pin (spi_en controlled automatically by /scs signal)
Input Voltage: 3.3v internal operation, 5v tolerant i/os
Power Consumption: 10, 100 base t max 185ma (3.3V)
Temperature: 0 ~ 70c
