Pololu 3/4" Plastic Ball Caster
23170
5.99
USD
Qty
Price
1
$5.99 ea.
The 3/4" Plastic-ball caster wheel by Pololu is a very tidy solution to making a 3rd skid point for your robot!
Description [Hide]

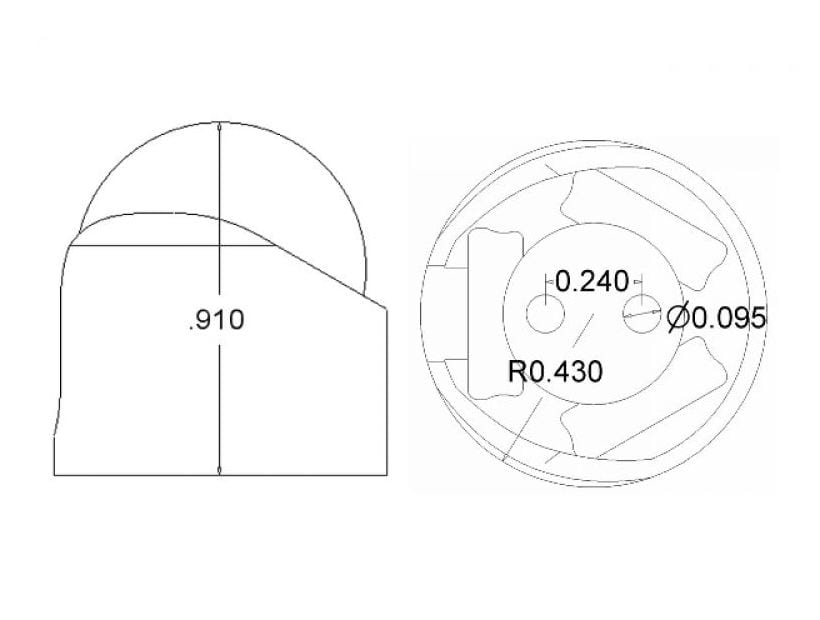

Here's another caster wheel produced by the geeks at Pololu. It's a big one, with a 3/4" plastic ball offering a nice, low-friction ride at a height of 0.91" to 1.1"

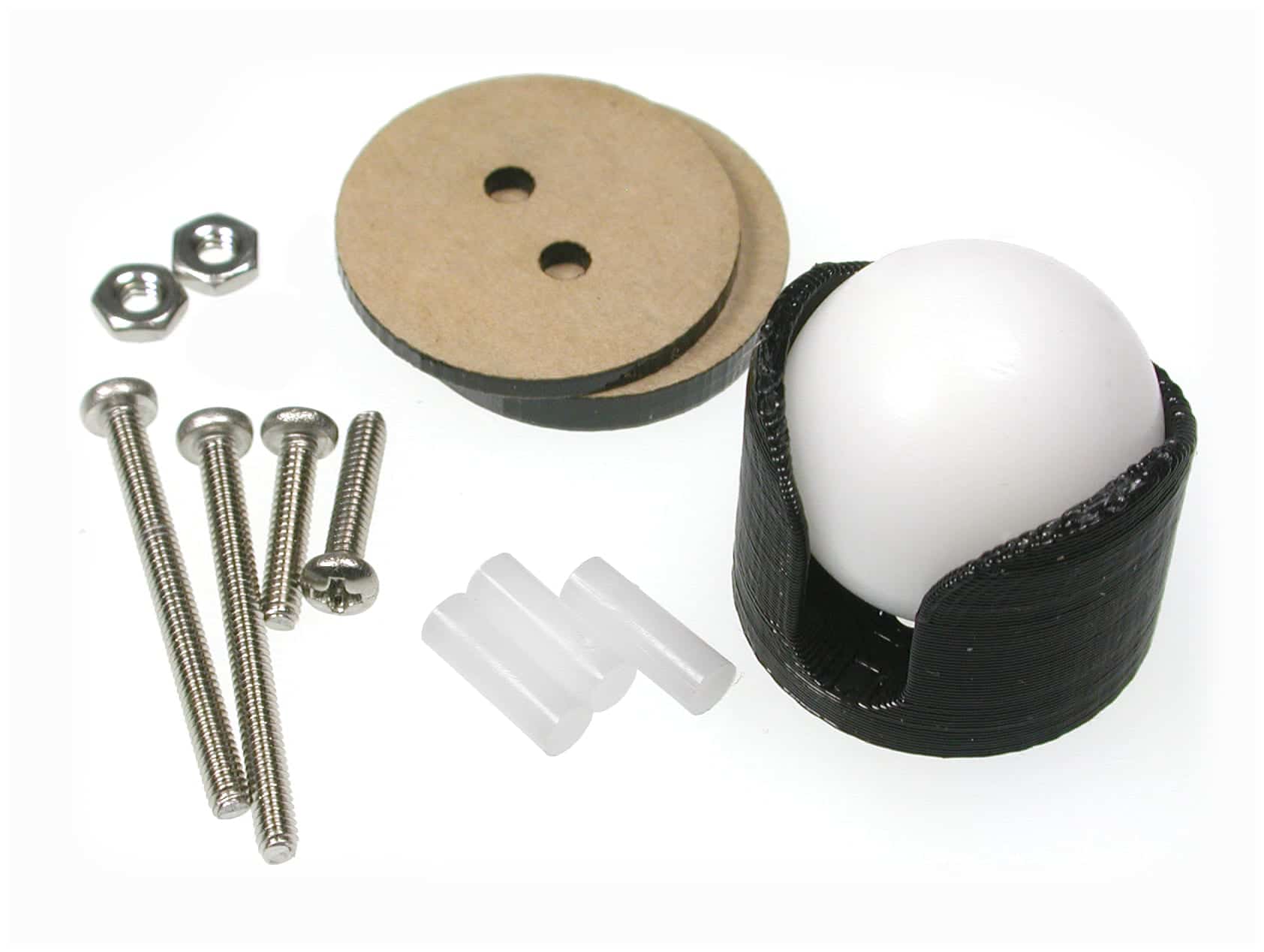

The kit features black ABS housing, a 3/4" diameter ball, and two spacers (1/16" & 1/8" thick), and a pair of #2 nut/bolt sets.
|
Pololu ball caster
ball diameter |
Height with no
spacers |
Distance
between screw holes |
Weight
(no spacers or screws) |
| 10.2mm (0.40") | 13.6mm (0.53") | 1g (0.03oz) | |
| 10.2mm (0.40") | 13.6mm (0.53") | 4 (0.14oz) | |
| 13.6mm (0.53") | 14.7mm (0.58") | 2g (0.07oz) | |
| 13.6mm (0.53") | 14.7mm (0.58") | 9g (0.32oz) | |
|
3/4" Plastic-ball
|
23.1mm (0.91") | 6.1mm (0.24") | 7g (0.25oz) |
| 21.1mm (0.83") | 15.5mm (0.61") | 30g (1.05oz) | |
| 27.9mm (1.10") | 17.8mm (0.70") | 10g (0.36oz) |
