DPDT Micro Top-mount Slide Switch
SWT7
0.50
USD
Qty
Price
1
$0.50 ea.
2+
$0.45 ea.

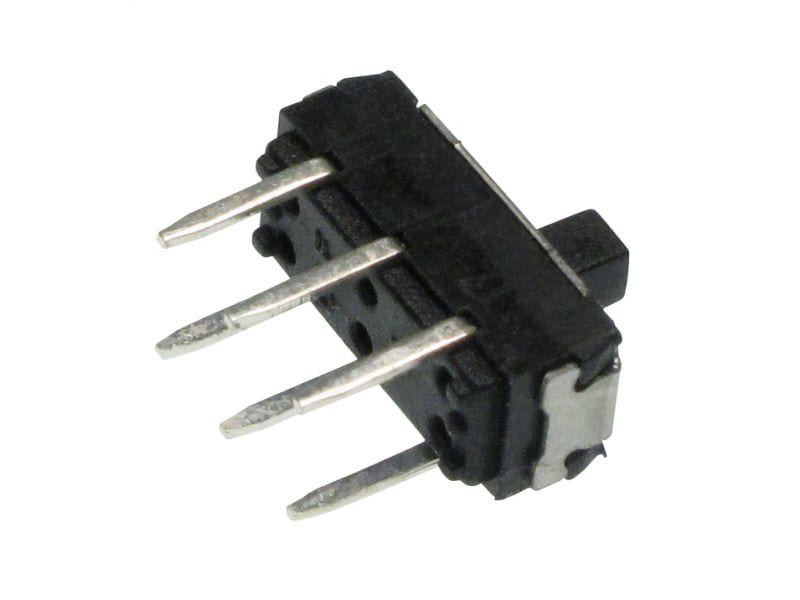

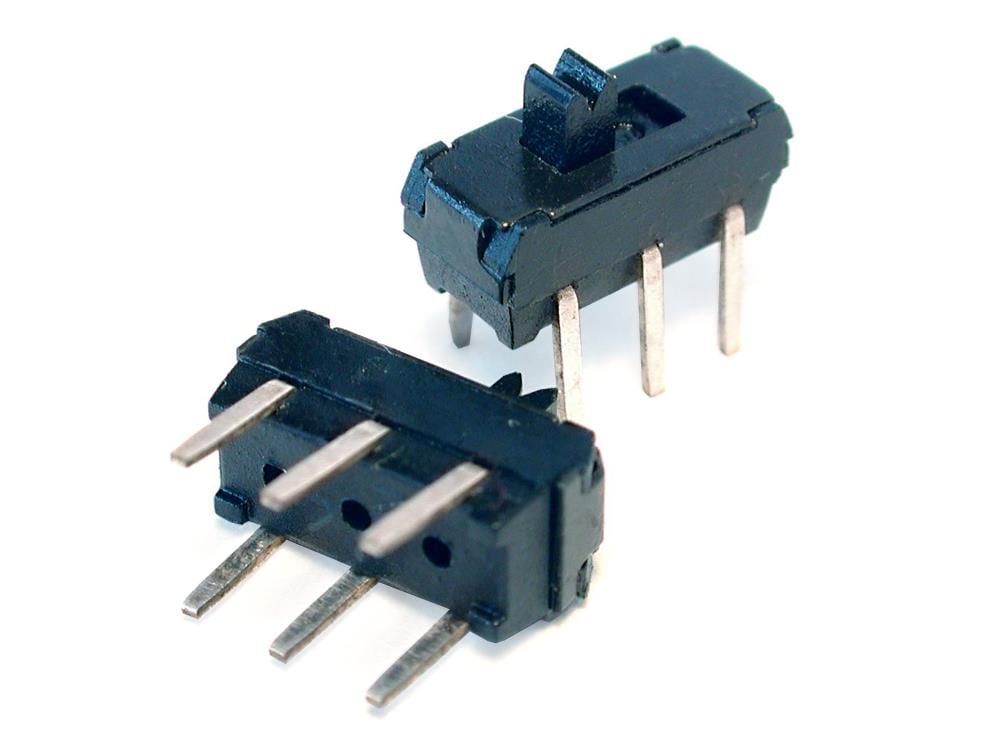

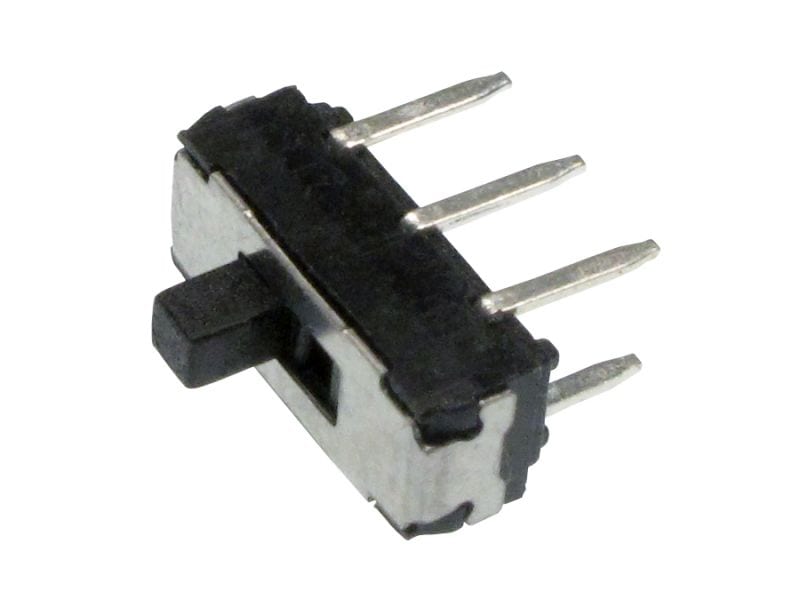

This micro DPDT switch has the switch lever on the top.
Description [Hide]
This micro double-pole, double-throw switch has the switch lever on the top. It's small and tidy - only 8.5mm (.335")long by 3.65mm(.144") wide by 5.38mm(.212") tall (mounted, including lever height).
- 6VDC rated maximum voltage
- 300mA maximum current
- 5000 cycle lifetime
Documentation [Hide]
- [Data Sheet]: SWT7 datasheet
- [Data Sheet]: SWT7 Datasheet 2
