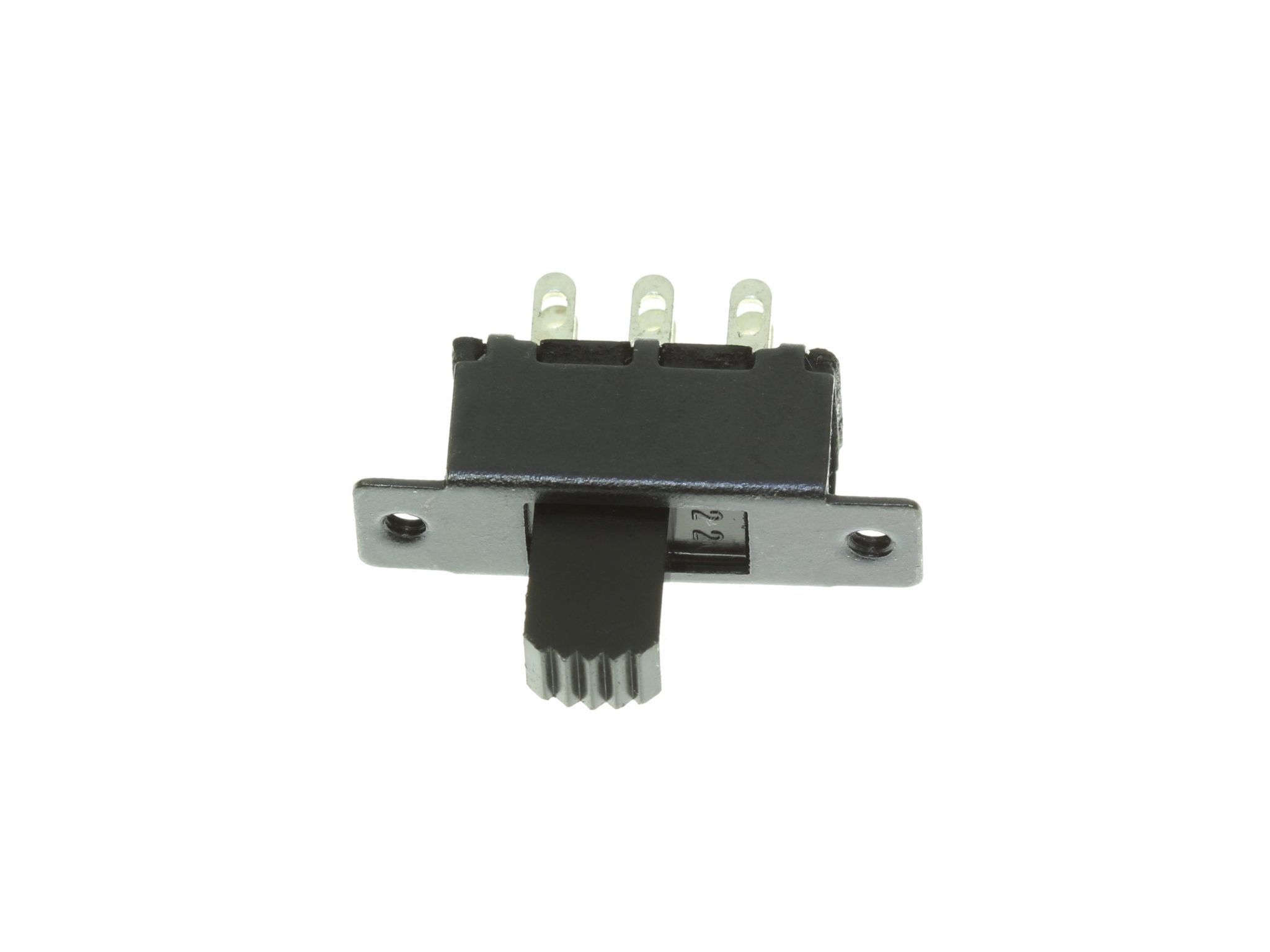

DPDT Slide switch

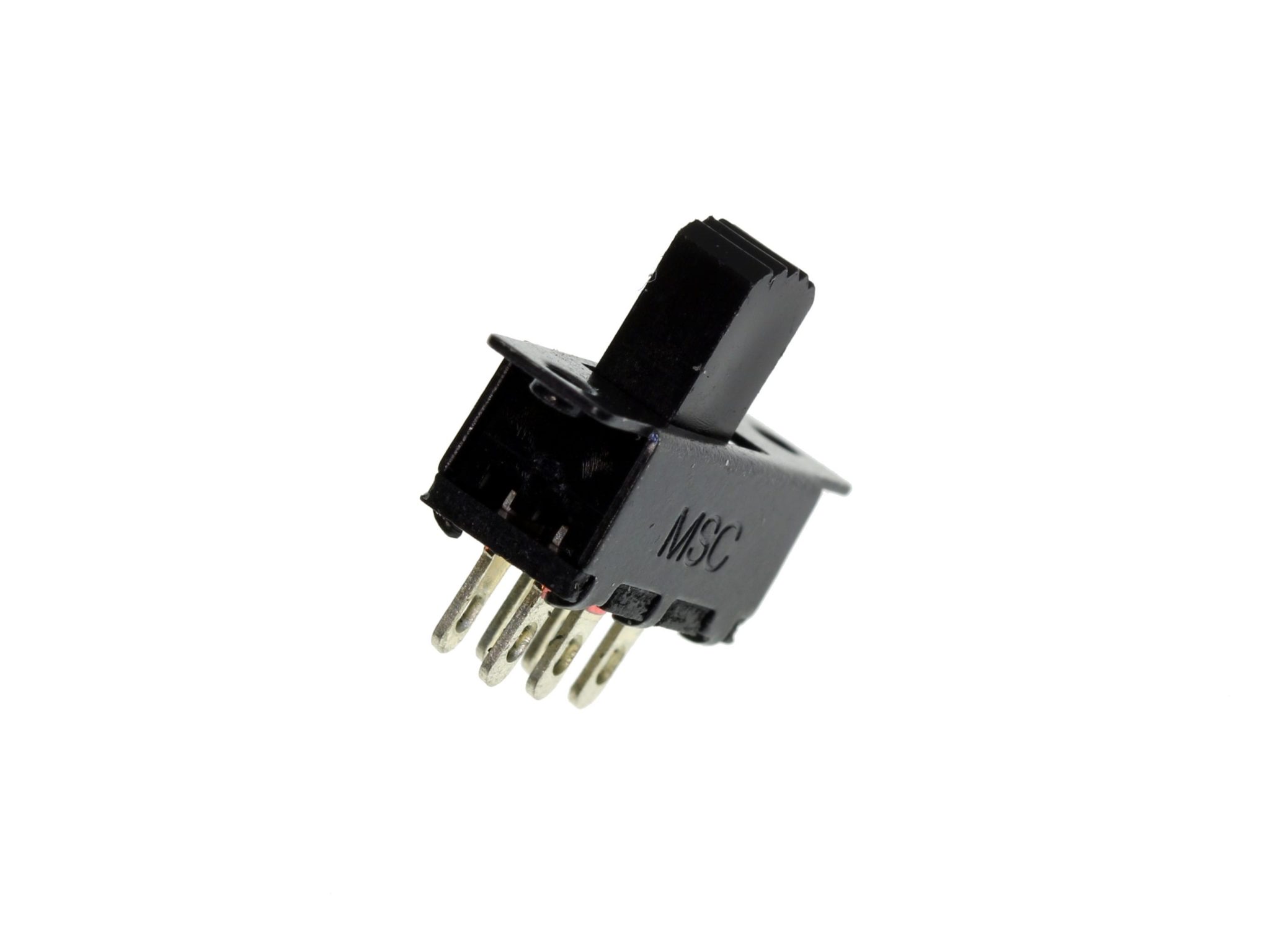

DPDT Slide switch - Image 2
DPDT Slide switch - Image 3

DPDT Slide switch

USD $0.60

This is a more robust DPDT Slide switch than our SWT7

In stock (can be backordered)

SKU: SWT11 Categories: , , Tag:
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS

DESCRIPTION

This black Standard Double Pole Double Throw slide switch has:

- Threaded mounting holes on 0.75" centers

- Body size: 0.6"L  X 0.29"W  X 0.31"H

- Lever to tip of terminals: 0.76"

- From mounting tab to mounting tab: 0.91"

- Tab dimensions: 0.07"L x 0.017" W x 0.16" tall

- Solder-loop terminals for each connection

Use this switch for reversing polarity, turning on/off 2 isolated circuits that you'd like to control at the same time, or parallel up the 2 sides for higher current applications.

RESOURCES & DOWNLOADS

Additional information

Weight 0.0024 kg
Dimensions 2.317 × 1.907 × 0.747 cm
Type

Voltage

Current
