Servo S03N

Servo

11.95 USD
Qty
Price
1
$11.95 ea.
2+
$10.95 ea.

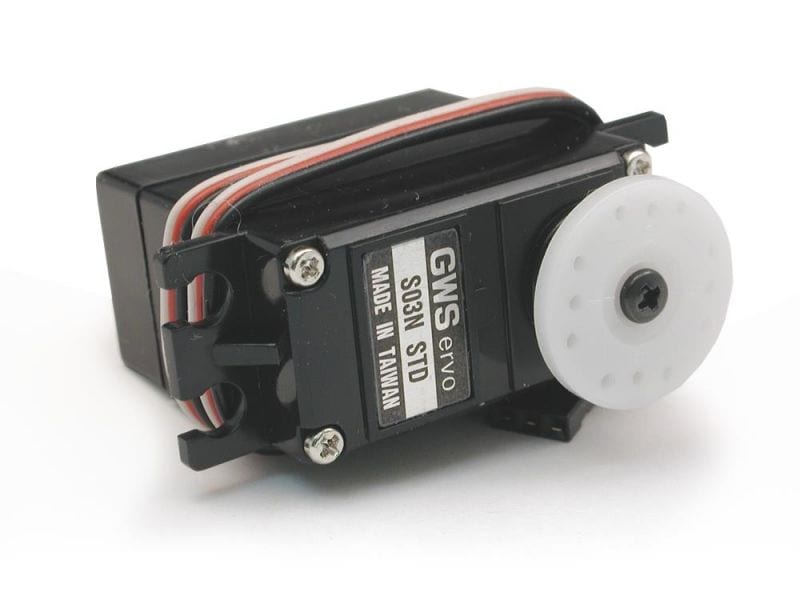

The GWS S03N servo is a good, solid workhorse if you have a need for inexpensive reliable servos.


Description [Hide]

These GWS S03N standard servos are a common, useful servo that are also very receptive to being converted to gear motors by removing their internal drive circuitry.

  • Bearings: Bushing
  • Gears: Nylon
  • 60° speed: .23 sec @ 4.8v
  • 60° speed: .18 sec @ 6.0v
  • Torque: 47.00 oz*in (3.38 kg*cm) @ 4.8v
  • Torque: 56.00 oz*in (4.03 kg*cm) @ 6.0v
  • Measurements: 1.56 x1.14x1.40 inches (39.6 x 29.0 x 35.6mm)
  • Mass: 1.45 ounces (41.1g)
