12VDC Digital Thermostat Temperature Control Module

USD $9.99

Control the state of a relay with a user programmable temperature range and easy to read 7 segment display.

Available on backorder

SKU: 701147 Categories: , , Tag:
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS

DESCRIPTION

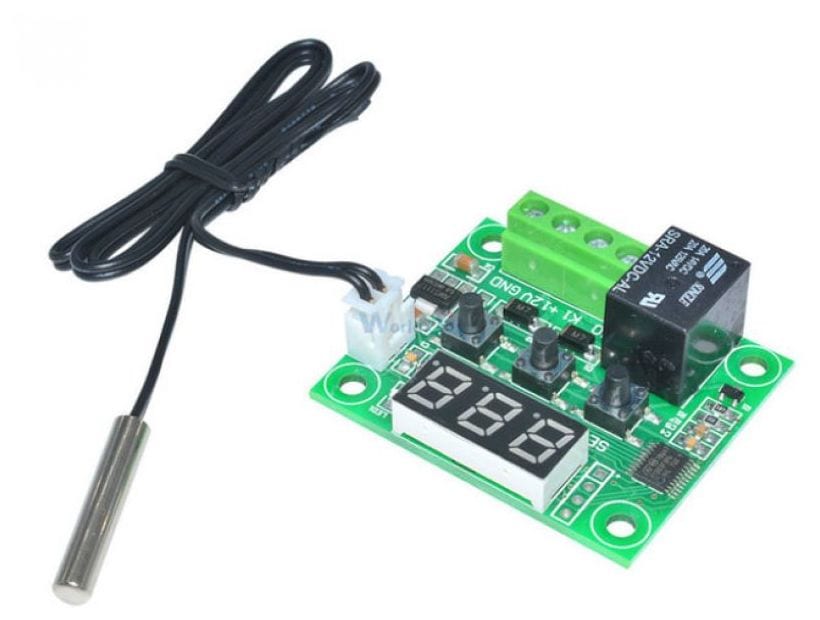

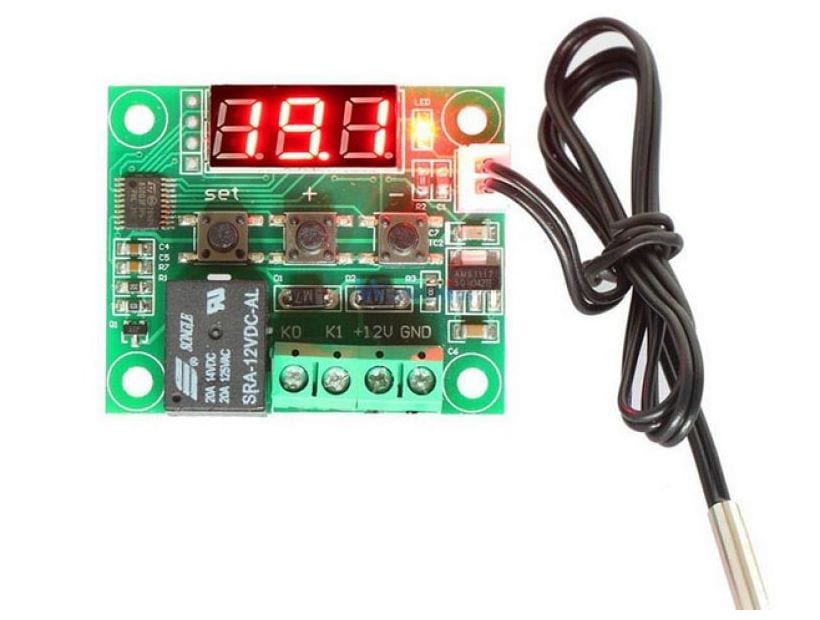

This 12VDC digital thermostatic controller is a simple solution for anyone who wants to sense and control the temperature of an environment. It comes with a three-digit 7 segment display that's used to display the current temperature or to configure the device and has a wired NTC temperature thermistor probe for easy measurement.

Press the "Set" button for 5 seconds to enter "programming mode" and refer to the gallery image for what the different "P" modes offer (heating/cooling, hysteresis settings, upper/lower temperature limits, calibration, delay start time, high-temperature alarms settings). Do note that if the display shows "---", that's the unit tripping into high-temperature alarm condition and it will not reset until the temperatures falls below that setting.

Specifications:

  • Display mode: Fahrenheit
  • Temperature Range: -58°F - 230°F (-50°C to 110°C)
  • Temperature Control Mode: On/Off
  • Control Accuracy: 0.1°C
  • Hysteresis Accuracy: 0.1°C
  • Refresh Rate: 0.5s
  • Supply Voltage: 12VDC
  • Static Current:
  • Output Voltage: 12VDC
  • Output Power: 10A Relay
  • Measurement Input: NTC (10k 0.5%) Waterproof Sensor
  • Environment Requirements: -10°C to 60°C, Humidity 20%-85%

RESOURCES & DOWNLOADS

Additional information

Weight 0.026 kg
Dimensions 7.20 × 11.00 × 2 cm
