Big Pushbutton Power Switch w/Reverse Voltage Protection, HP SKU: 51104
Big Pushbutton Power Switch w/Reverse Voltage Protection, HP
$6.95 USD
Up to 40V 16A Latching Push-ON, push OFF DC switch with micro-controller friendly inputs.
In stock
Description
The Pololu Pushbutton Power Switches are sophisticated power control alternatives to bulky mechanical switches. The main function is pushbutton-based latching power control, where one push turns on power and another push turns it off. Additional control inputs allow advanced applications such as automatic shutdown by the device being powered. This HP version operates from 4.5 V to 40 V and can deliver continuous currents up to around 16 A.
The Pololu Pushbutton Power Switch is a compact, solid-state power switch that features built-in reverse-voltage protection and is controlled by a momentary pushbutton: one push turns on power and another push turns it off. This is a patented design initially created for use in our own products as an alternative to bulky mechanical switches. Because the switched current does not flow through the mechanical switch, a large variety of small, low-power switches can be used to control a substantial amount of power. The use of momentary switches also allows multiple switches to be used in parallel to control the power to one load.
The board has a small pushbutton already installed and offers convenient points for connecting external pushbutton or tactile switches in parallel. It also offers several alternate pushbutton connection options that result in push-on-only or push-off-only operation, and additional inputs enable further power control options like allowing the load to turn off its own power, which can be beneficial when used with battery chemistries sensitive to over-discharging.
Warning: Do not use this switch as an emergency cutoff or similar safety disconnect in applications where failure to cut power could lead to injury or property damage.
Resources
51104 - Big Pushbutton Power Switch with Reverse Voltage Protection, HP #2813Datasheet

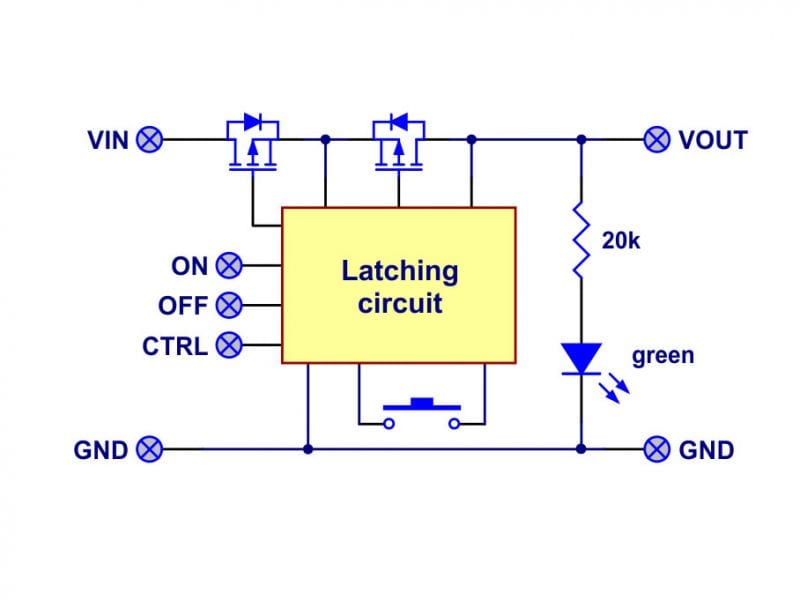

Block diagram and input details of the Big Pushbutton Power Switch with Reverse Voltage ProtectionSchematic
Dimension diagram of the Pololu Big Pushbutton Power Switch with Reverse Voltage ProtectionSchematic
3D model of the Big Pushbutton Power Switch with Reverse Voltage ProtectionSchematic
Drill guide for the Big Pushbutton Power Switch with Reverse Voltage ProtectionSchematic
