Mini MOSFET Slide Switch with Reverse Voltage Protection, LV SKU: 51102
Mini MOSFET Slide Switch with Reverse Voltage Protection, LV
$3.49 USD

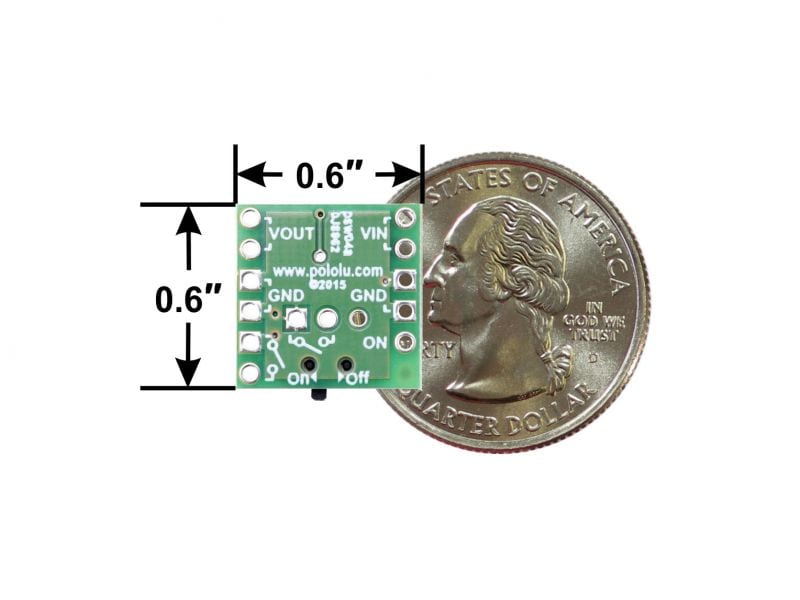

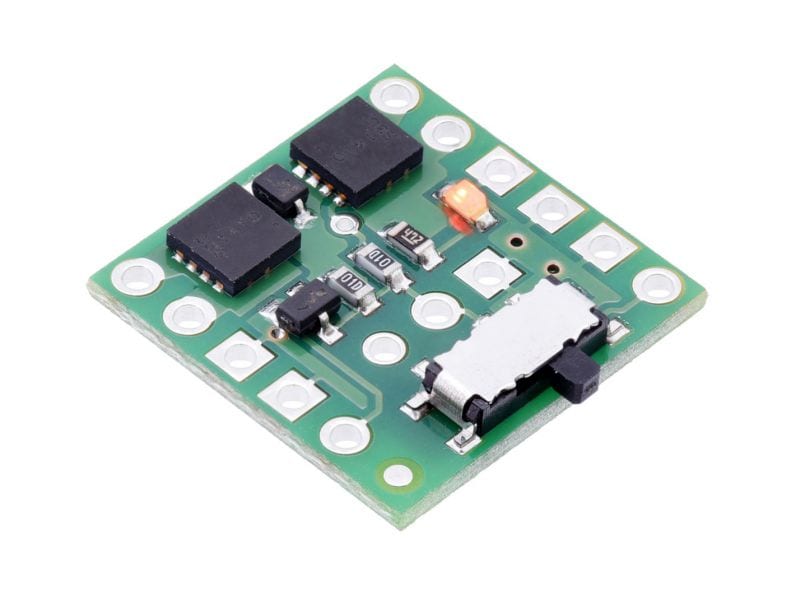

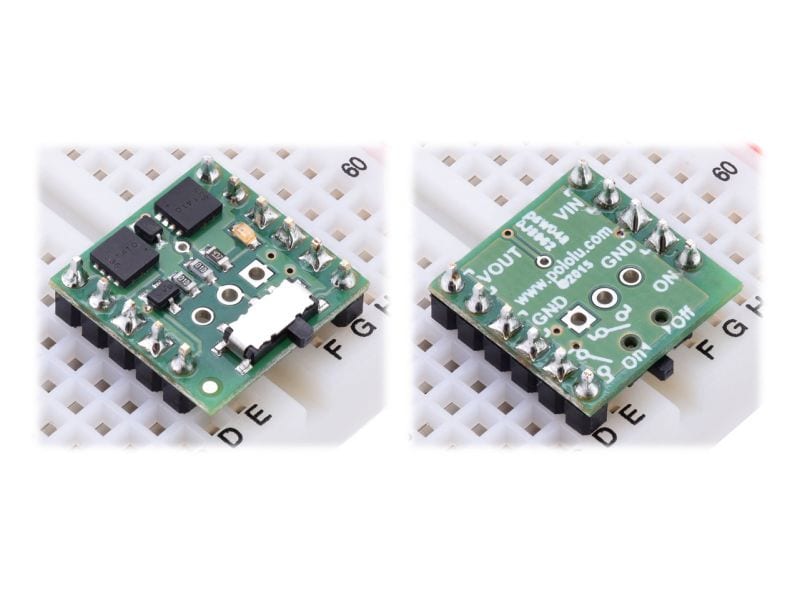

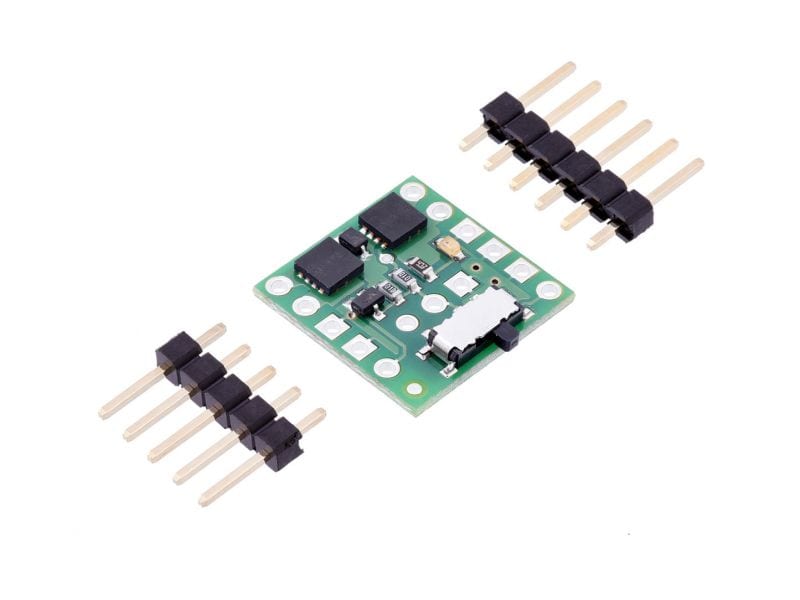

This breadboard-compatible module is an alternative to bulky power switches. It uses a small integrated slide switch to control a high-side power MOSFET that can deliver continuous currents up to around 6 A at 2V to 20V
In stock
Description

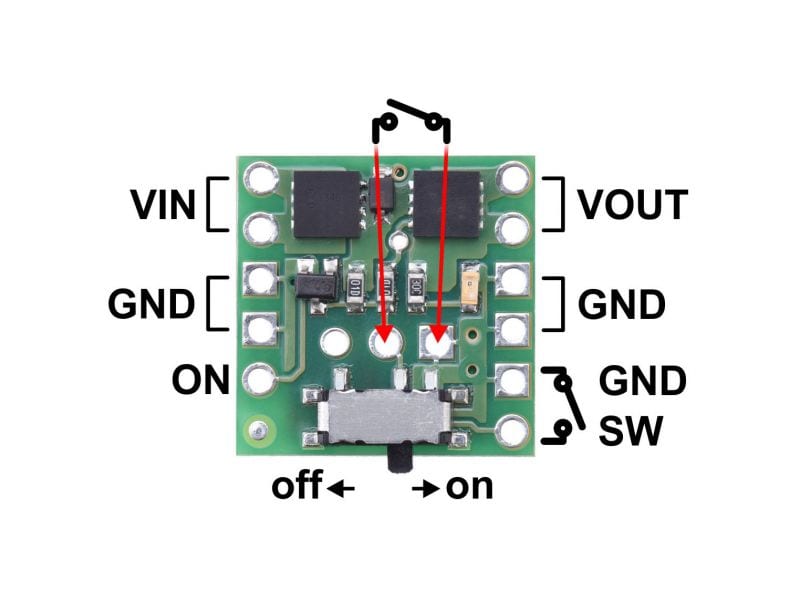

This product is a power switch implemented as a pair of P-channel MOSFETs configured as a high-side switch with reverse voltage protection and controlled by a micro slide switch. Because the main current does not go through the controlling mechanical switch, a variety of switches can be used without concern for the current they can carry. For example, a small slide or toggle switch can be mounted conveniently on a control panel with thin wires running to it, while the main power path can be shorter and with thicker wires. Pushbutton or tactile switches can also be used for momentary switching applications.
Unlike the Pololu Pushbutton Power Switches, which can lose their state when power is disconnected and reapplied, the conducting state of the MOSFET Slide Switches is determined only by the physical control switch (or a signal supplied to the “ON” pin), independent of power applied to the board. This can make them more appropriate for applications where the supplied power may be intermittent.
Warning: Do not use this switch as an emergency cutoff or similar safety disconnect in applications where failure to cut power could lead to injury or property damage.
Resources

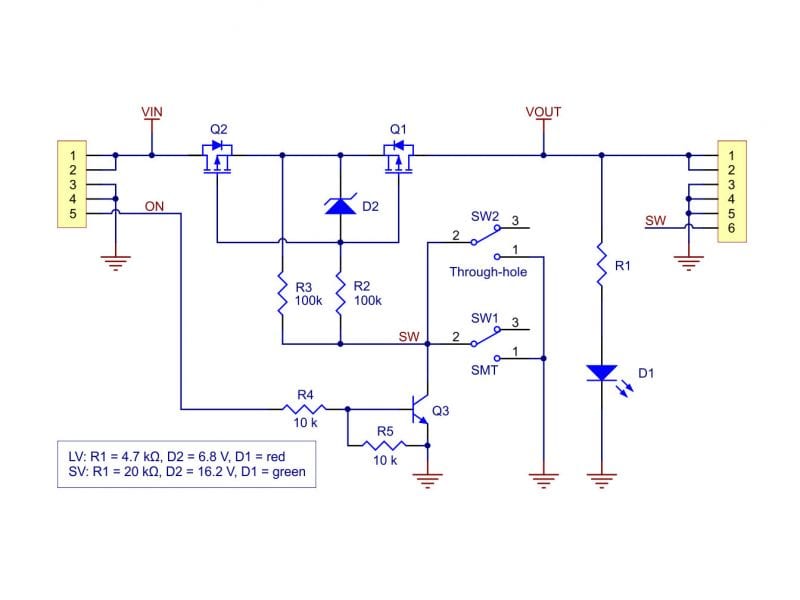

Mini MOSFET Slide Switch with Reverse Voltage Protection schematic diagramSchematic
Dimension diagram of the Pololu Mini MOSFET Slide Switch with Reverse Voltage ProtectionSchematic
3D model of the Mini MOSFET Slide Switch with Reverse Voltage ProtectionSchematic
Drill guide for the Mini MOSFET Slide Switch with Reverse Voltage ProtectionSchematic
51102 - Mini MOSFET Slide Switch with Reverse Voltage Protection, LV #2810Datasheet
