Li-Ion/Polymer Battery Charger/Balancer - 50W, 5A

50840

$32.95

USD

Qty
Price
1
$32.95 ea.
2+
$29.66 ea.
100+
$26.36 ea.

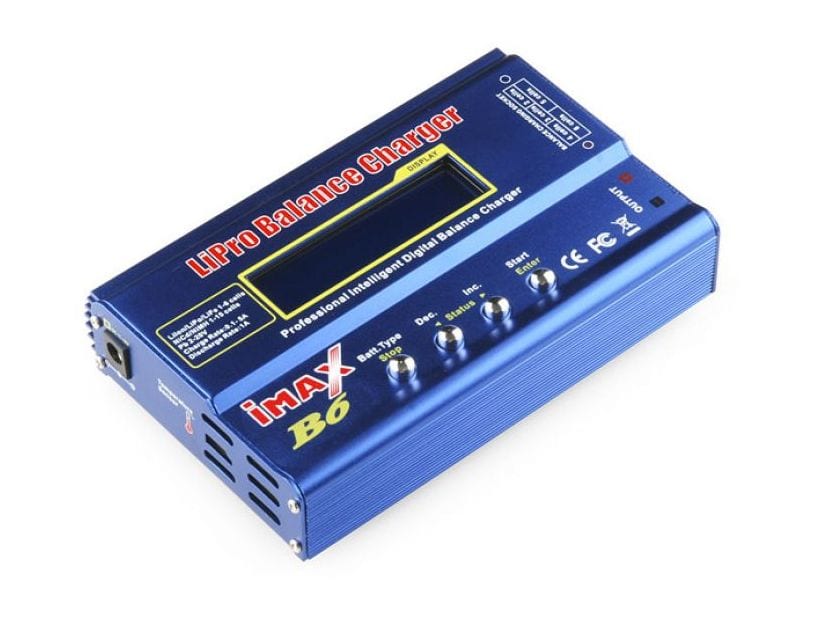

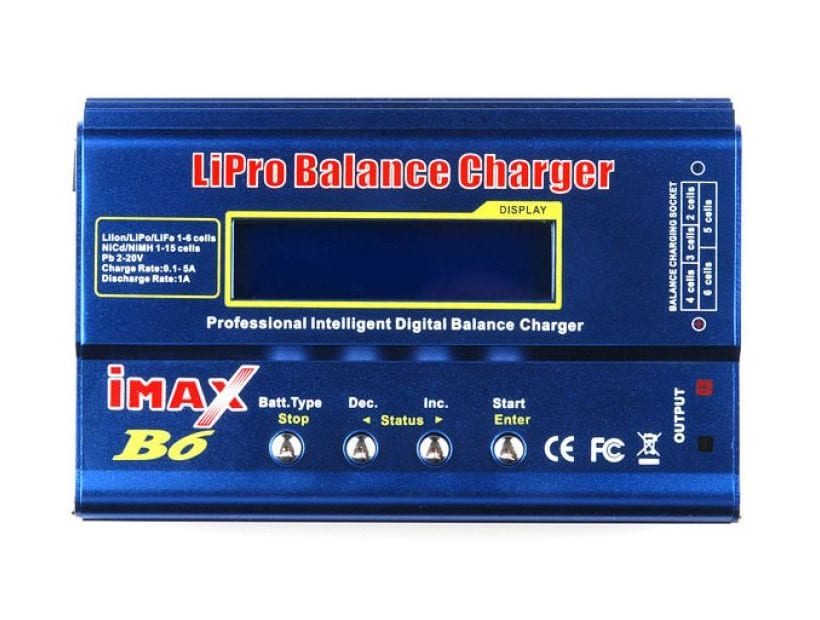

The iMax B6 Balance Charger accurately balances and charges Lithium Polymer, LiFe (A123), NiCd and NiMH batteries. The B6 will balance charge LiPo/LiFe up to 6S and NiMH/NiCd up to 15S and shows individual cell voltage during charge with realtime updates throughout the charge cycle.


Description [Hide]

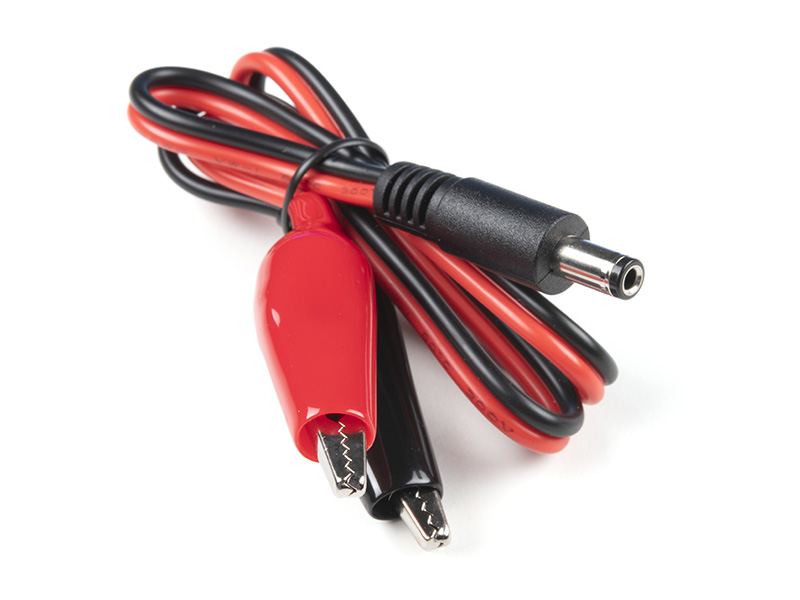

The intuitive menu system means charging and cycling is an easy process and can be done quickly and accurately either in the field, by using a 12V input such as a car battery, or at home with a 12V power supply. The charger can quickly be powered via the included alligator clips to barrel jack. Charges Lithium Polymer (LiPo), Life (LiFePO4), Lead-acid (Pb), Nickel-Metal Hydride (Ni-MH) and Nickel-Cadmium (Ni-Cd) battery types.

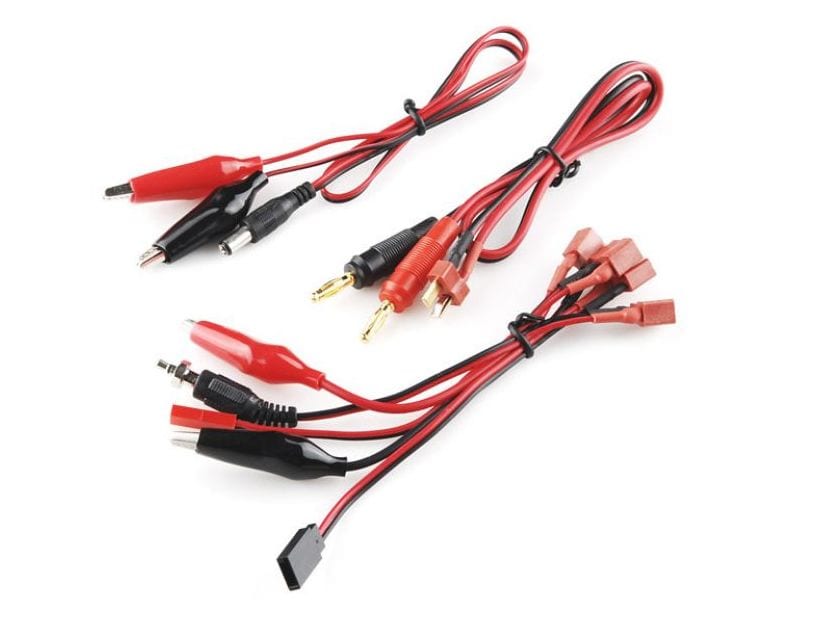

Bundled with the B6 are a number of input and output wires which should satisfy most any charging requirement. This charger has a JST-XH charge plug, which makes it compatible with Zippy, HXT, iMax and any pack with a JST-XH adapter. It also has a male deans connector output that interfaces to the other output connectors (such as JST-BEC, Alligator clips, and a couple others).

Features:

  • Ni-MH/NiCd cells: 1~15
  • Li-ion/Poly cells: 1~6
  • Delta-peak sensitivity (NiMH/NiCd)
  • Large range of charge currents
  • Store function, allows safe storage current
  • Time limit function
  • Input voltage monitoring (protects car batteries in the field)
  • Data storage (Store up to 5 packs in memory)
  • Battery break in and cycling
  • Input Voltage: 11~18V
  • Circuit power: Max Charge: 50W / Max Discharge: 5W
  • Charge Current Range: .1~6.0A
  • Pb battery voltage: 2~20v

Dimensions:

  • 133x87x33mm
  • Weight: 277g



Note: A power supply is not included. The DC input jack is not the same as the standard 2.1mm size we use. It has a larger pin diameter. Thankfully, it does come with a barrel jack to alligator clip adapter.

Also Note: Although the enclosure is labeled as an Imax B6, this is not the same charger as the more expensive charger by the same name.
