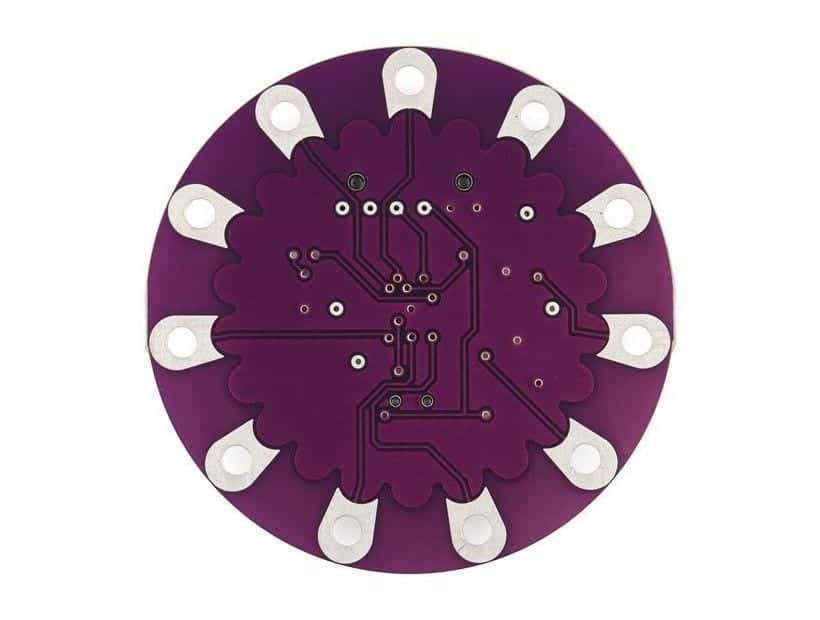

LilyPad Arduino Simple Board

Want a bare-bones, compact LilyPad? Although it has fewer I/O than a standard unit, it is more complete with power supply points and included switch. Any of our LiPo batteries can be plugged right into the socket. The Simple board is designed to streamline your next sewable project by keeping things simple and giving you more room to work  and eliminating the need to sew a power supply. This revision does away with the ISP header and adds a charging circuit based on the MCP73831 IC. And like other LilyPad designs, it runs at 8MHz for lower power consumption.

LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They're even washable!

Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles and also to Arduino LLC to help fund continued development of new tools and new IDE features.

Dimensions:

• 50mm outer diameter
• Thin 0.8mm PCB

Documents:

• Schematic
• Eagle Files
• Datasheet (MCP73831T)
• Leah Buechley's LilyPad Tutorial
• LilyPad Arduino Documentation

Replaces: DEV-09725
