LED Voltmeter Display 2.5-30VDC, Blue

46224

3.95 USD
Qty
Price
1
$3.95 ea.

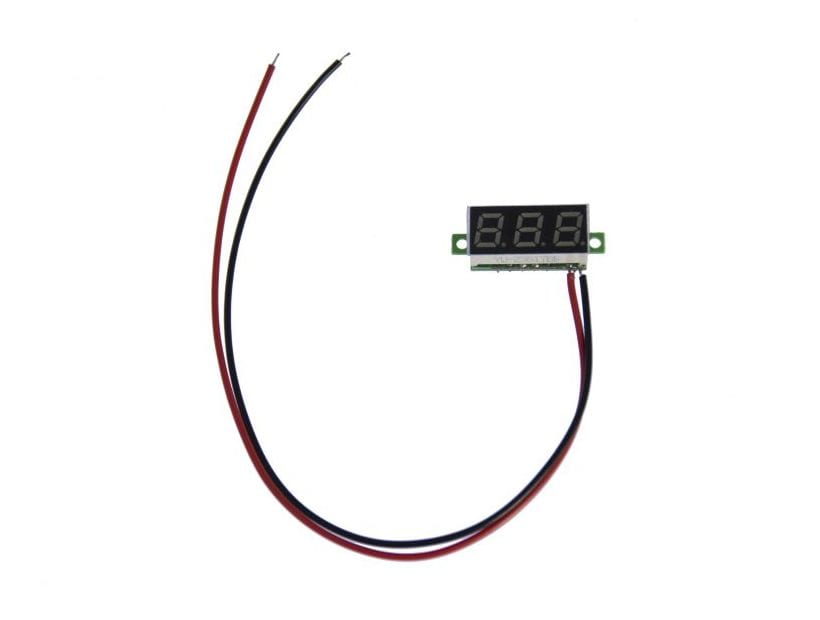

Small and self-powered, this blue LED voltmeter is a handy monitoring module.


Description [Hide]

We've had situations where we want to watch a voltage, but don't want to dedicate or mount a full meter to the projects. This little device fills the need. Small, compact, self-powered and inexpensive, it lets us watch for system voltage sags without using up our bench meters.

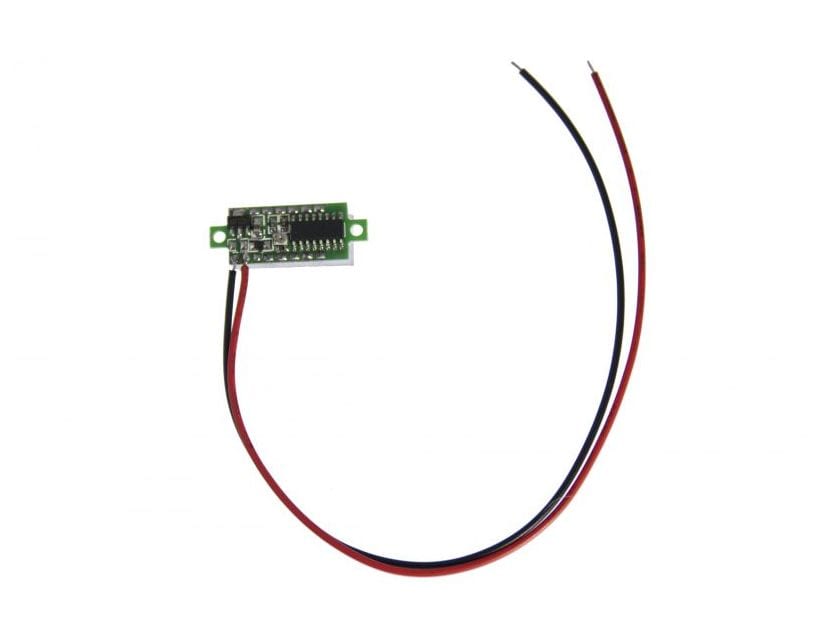

If you have to install it a distance from your measurement point and you are concerned about voltage drop, there is a trimmer on the backside so you can dial in the compensation for the line loss powering the display. That said, please calibrate your unit before using it!

Features:

  • Self-powered
  • Up to 30VDC input
  • SMALL, but bright!
  • Blue display
  • Voltage calibration trimpot

Specifications:

  • 2.5-30VDC input
  • 28mm (1.1") between 2mm (0.08") mounting holes
  • ~500mS refresh rate
  • 1% (+ / - 1 digit) accuracy
  • -10 to +65°C operating temperature
  • Weight: 5g
  • 23 x 15 x 10mm (0.91 x 0.59 x 0.39"), excluding mounting tabs
  • 150mm (5.9") power leads
