The Hakko FA400-04 Smoke Absorber is a great upgrade to your soldering toolkit.
We have a few sets of the of the old Hakko 493 Smoke Absorber in the office, and they do an adequate job. These new FA-400-04 units replace the 493, and somebody (Hakko) put some thought into the engineering these new ones!

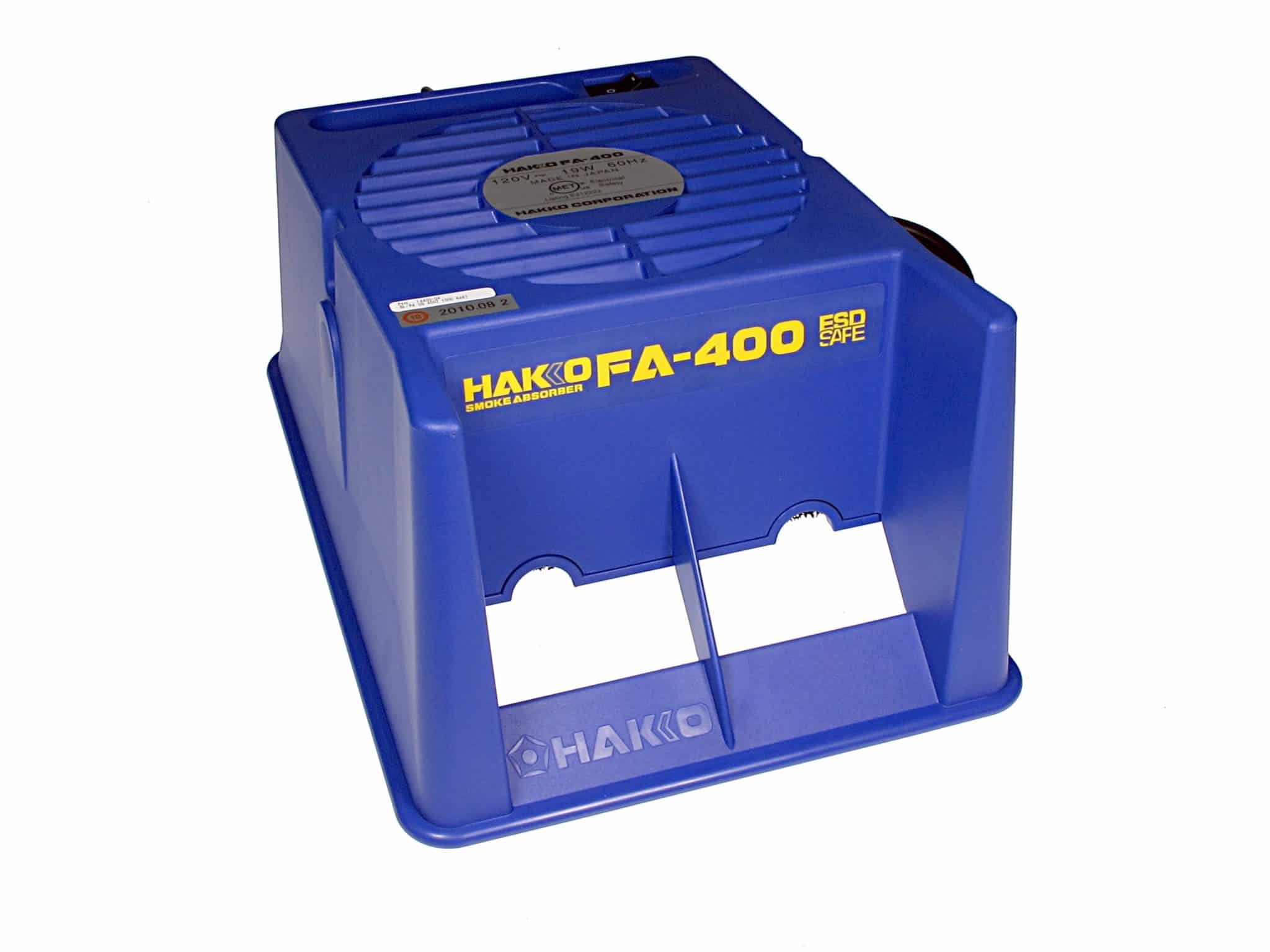

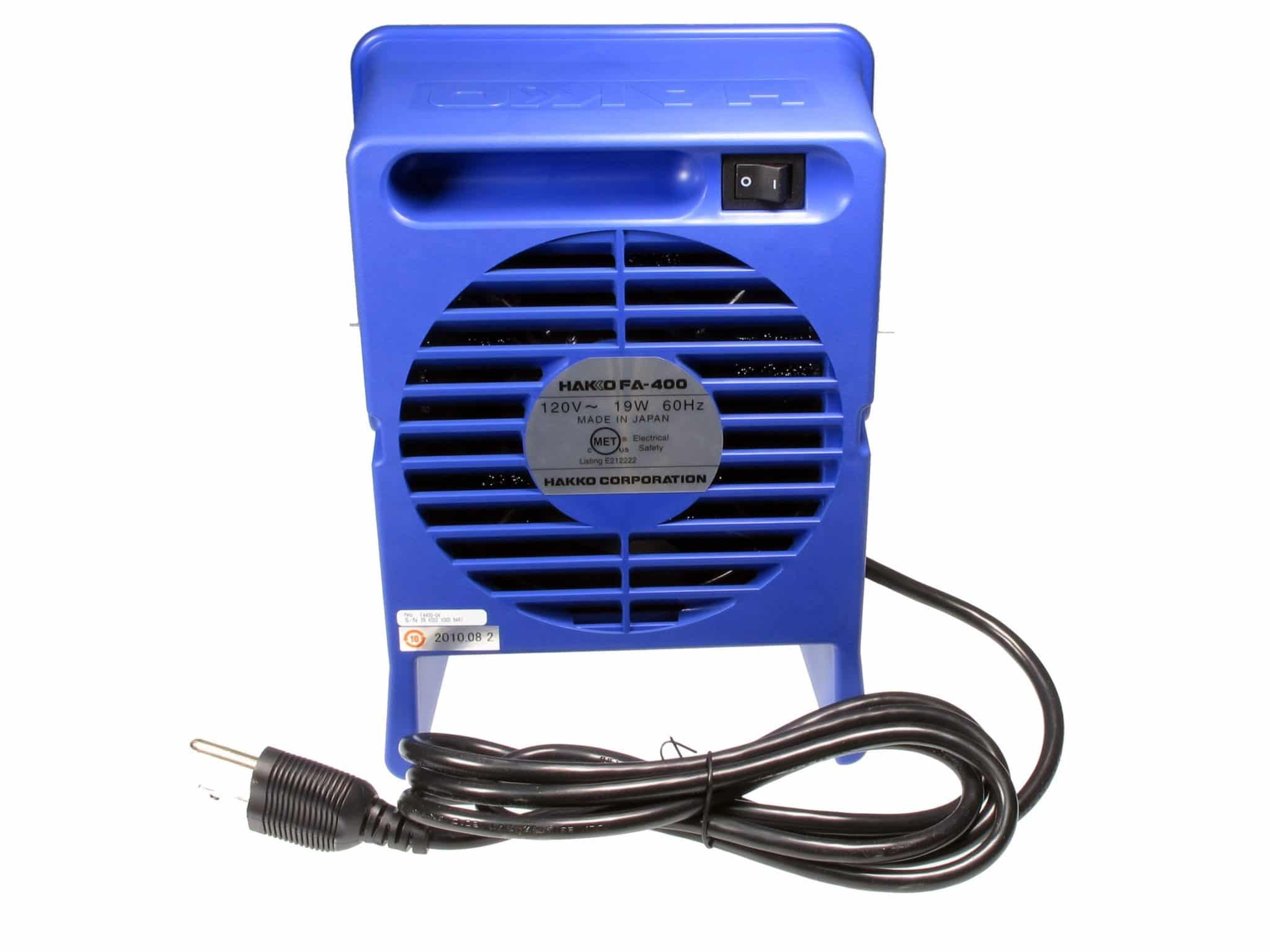

Where the old 493 was a simple fan & activated charcoal filter on a swivel mount, the new FA-400-04 works in a set horizontal or vertical orientation. When sitting face-down, a unique slot is exposed to move 2.6 times more air through the soldering zone, pulling the smoke away from you. The older design needed to be practically over your work-zone to function as well!
It's designed to use existing 493 filters and accessories and filters up to 80% of the odors from the air. And it's quieter than the 493 too!
Check this Hakko video they produced to show it off
Part No.: FA400-04
Power Consumption: 13W
Absorption Capacity (w/o filter) Approx. 1.07m³/min. (37.79 ft³/min.)
Outer Dimensions 169(W) x 213(H) x 112.5(D) mm; (5.5(W) x 3.0(H) x 7.3(D) in.)
Weight: 930g (2.1 lbs.)
Accessories Filter: (1 pcs.)
Activated Carbon Filter Properties
Size: 130 x 130 x 10 mm; (5.1 x 5.1 x 0.4 in.)
Amount of Activated-Carbon filter: 12 g (0.03 lb.)
Max. Absorbing weight of noxious components per filter: 4 g (0.01 lb.)
