2-1/4" Round Mini Speaker 8 Ohm

37041

$1.95

USD

Qty
Price
1
$1.95 ea.

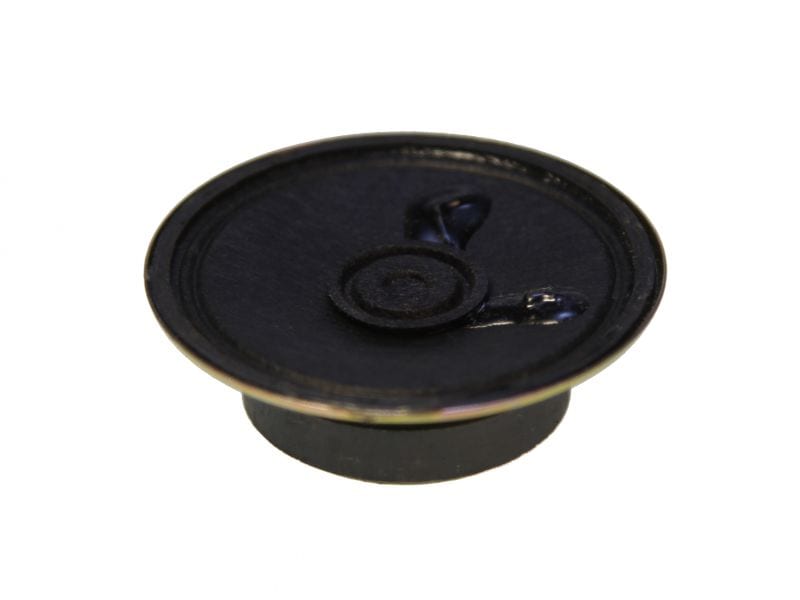

2-1/4" round, 8 ohm, 0.25 watt general purpose replacement speaker. Paper cone, Alnico magnet. Unit comes with 6" wire lead attached.


Description [Hide]

Need to make noise? Here's a handy small speaker to make it happen. Annoy the neighbours, but don't tell them we said so...

Specifications

  • Power handling: 0.25 watts RMS/0.5 watts max
  • Impedance: 8 ohms
  • Re: 7.68 ohms
  • Frequency range: 355-10,000 Hz
  • Fs: 355.3 Hz
  • SPL: 82 dB 1W/1m
  • Vas: 0.0053 cu. ft.
  • Qms: 8.012
  • Qes: 6.779
  • Qts: 3.672
  • Dimensions: Overall diameter: 2-1/4", Cutout diameter: 2", Depth: 3/4".
