Economy Servo (Modified)

36000

12.95 USD
Qty
Price
1
$12.95 ea.
2+
$11.66 ea.

This modified servo is great for simple projects and lightweight robots.


Description [Hide]

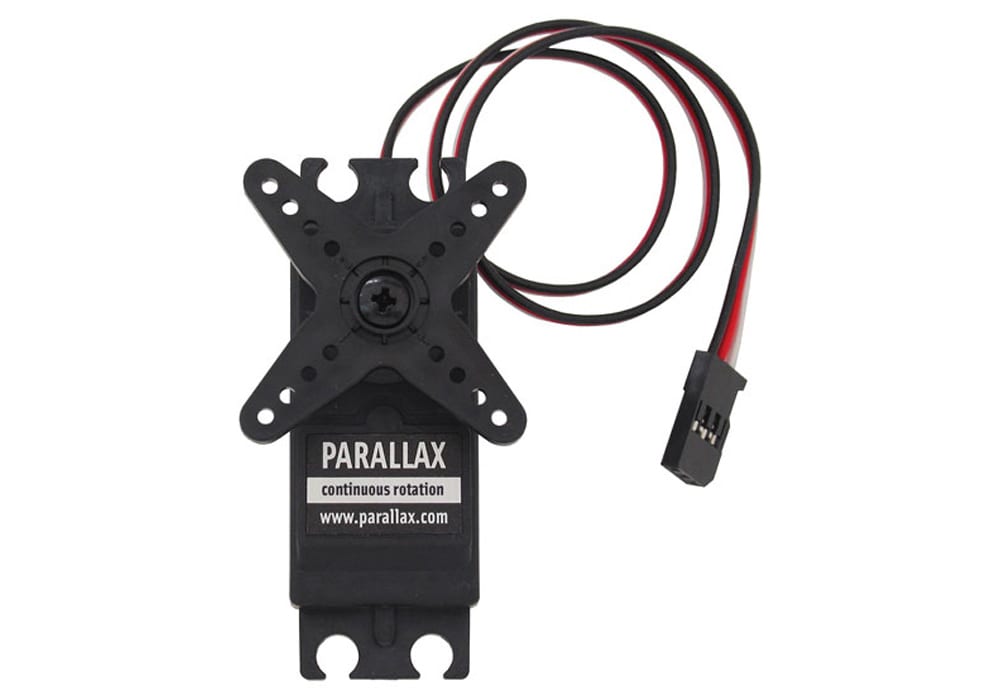

The Parallax Pre-Modified servo motor is a good choice for simple experiments and drive motors for lightweight robots.

The pre-modified servo comes modified for continuous rotation, having a brass load bushing to shoulder the load, which is much better than a plain plastic-bushing found in economy servos. Putting the weight of a robot on the side of a servo can eventually wear down the servo, but this brass bushing does a great job of taking the load.

Specifications:

  • Power: 6vdc max
  • Average Speed: 60 rpm (5V, no load)
  • Weight: 45.0 grams/1.59oz
  • Torque: 3.40 kg-cm/47oz-in
  • Size mm: (L x W x H) 40.5x20.0x38.0
  • Size inch: (L x W x H) 1.60x.79x1.50
  • Manual "zero" adjustment port for fine-tuning
