MEAS Vibration Sensor

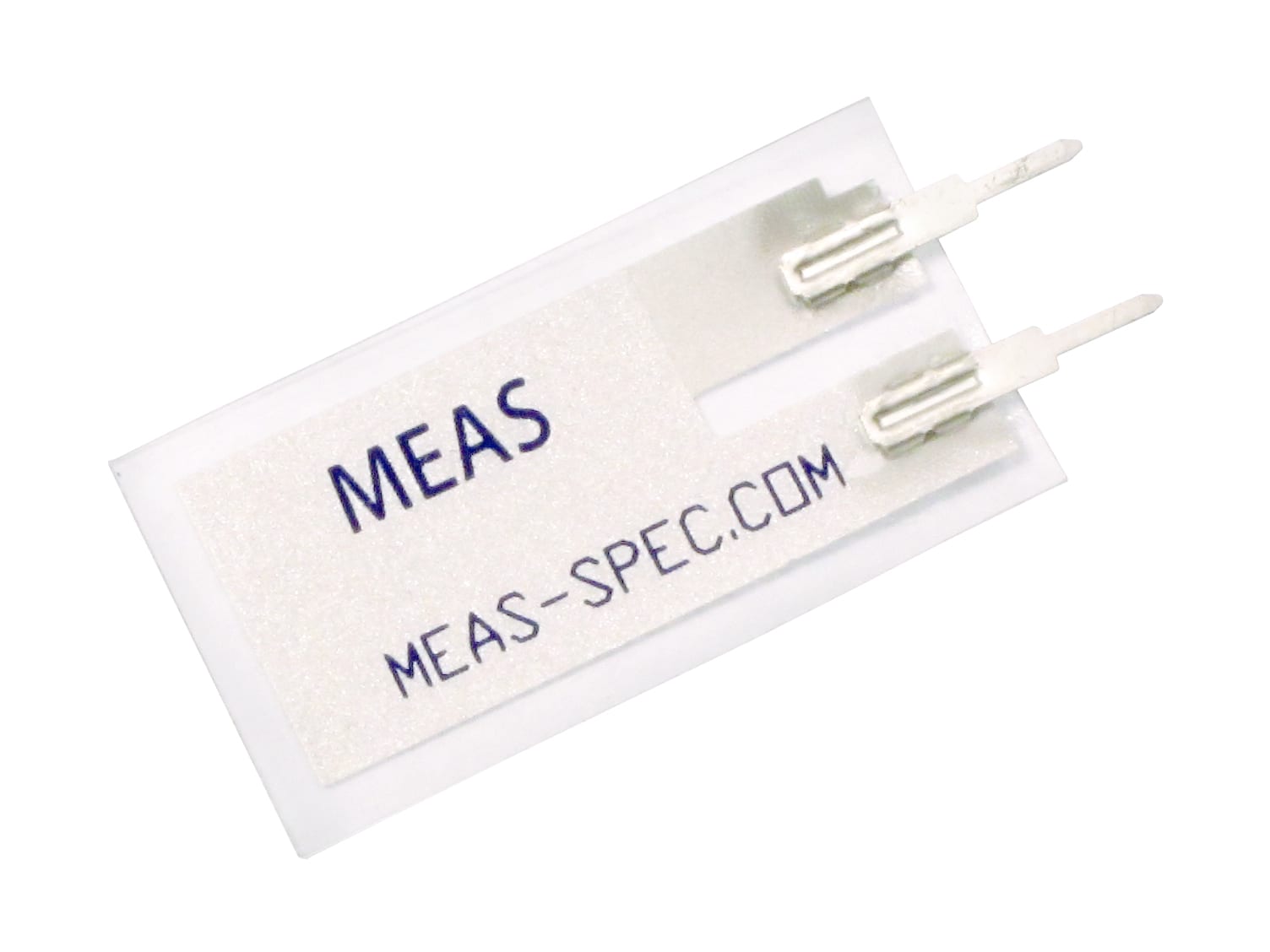

This Piezo Film Vibra Tab Mass model LTD0 by Measurement Specialties is usable as a vibration sensor, flexible switch or frequency response device. Nice and flexible, it holds up well to man-handling.

We've seen these used as "virtual hair" on LARGE robot (ok, it's an electronic giraffe) where a strip of these act as a nice surface for kids to "pat" the robot".

Features:

• Wide range of applications
• Thin polymer film laminate with 2 crimped contacts
• Easy interface with the Basic Stamp, SX, or Javelin Microcontrollers

Key Specifications:

• Power Requirements: N/A
• Communication: Analog (Up To ~70 VDC; Sensitivity 50 mV/g)
• Dimensions: .98 x .52 in (25 x 13 mm)
• Operating Temperature: +32 to +158 °F (0 to +70 °C)

Example Applications:

• Flexible Switch
• Vibration Sensor
• Alarm System Sensor
• Product Damage/Shock Detector
