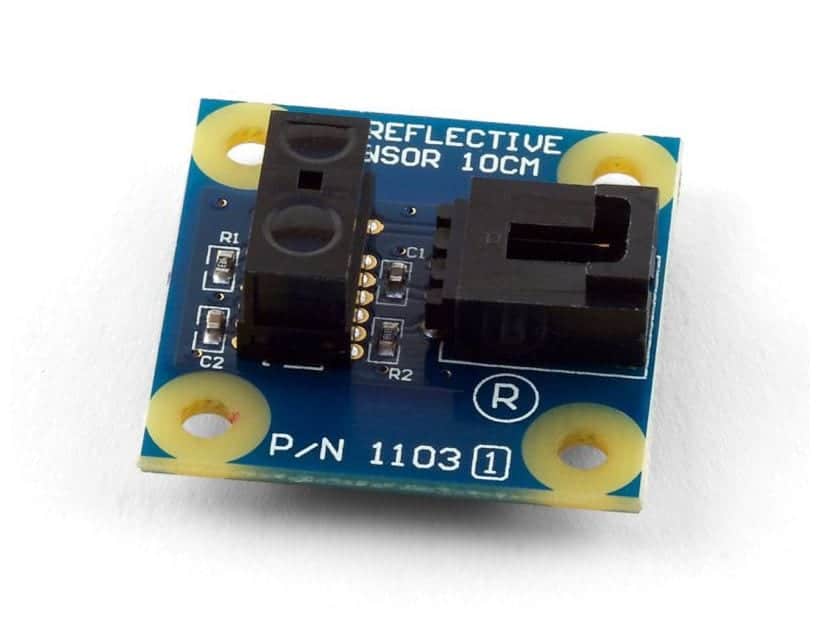

Phidget IR Reflective Sensor 10cm


10.48 USD
$10.48 ea.

This sensor can detect the presence of objects at a distance of 0 to 10cm regardless of the object reflective properties.

Description [Hide]

It works just as well in both dim and well lit environments. The sensor cannot detect the presence of the object if it is emitting large amounts of light, such as a light bulb.

Product Features

  • Can detect the presence of an object at a distance of 0 to 10cm.
  • Works just as well in both dim and well lit areas
  • Does not depend on the reflective property of the object
  • The sensor is ratiometric

Sensor Properties

Sensor Type Distance (Infrared)
Measurement Distance Min 0 m
Measurement Distance Max 100 mm

 Electrical Properties

Supply Voltage Min 4.75 V DC
Supply Voltage Max 5.25 V DC
Current Consumption Max 9 mA
Output Impedance 1 kΩ

 Physical Properties

Weight 4.3 g
Operating Temperature Min -10°C
Operating Temperature Max 60°C

Comes packaged with Sensor Cable 60cm.
This sensor is intended to be used with a PhidgetInterfaceKit - Analog input.

Documentation [Hide]
