Dual Relay Board

33045

19.00 USD
Qty
Price
1
$19.00 ea.

The Dual Relay Board allows digital outputs of the a microcontroller or 8/8/8 Interface Kit control larger loads and devices like AC or DC motors, electromagnets, solenoids, and incandescent light bulbs.


Description [Hide]

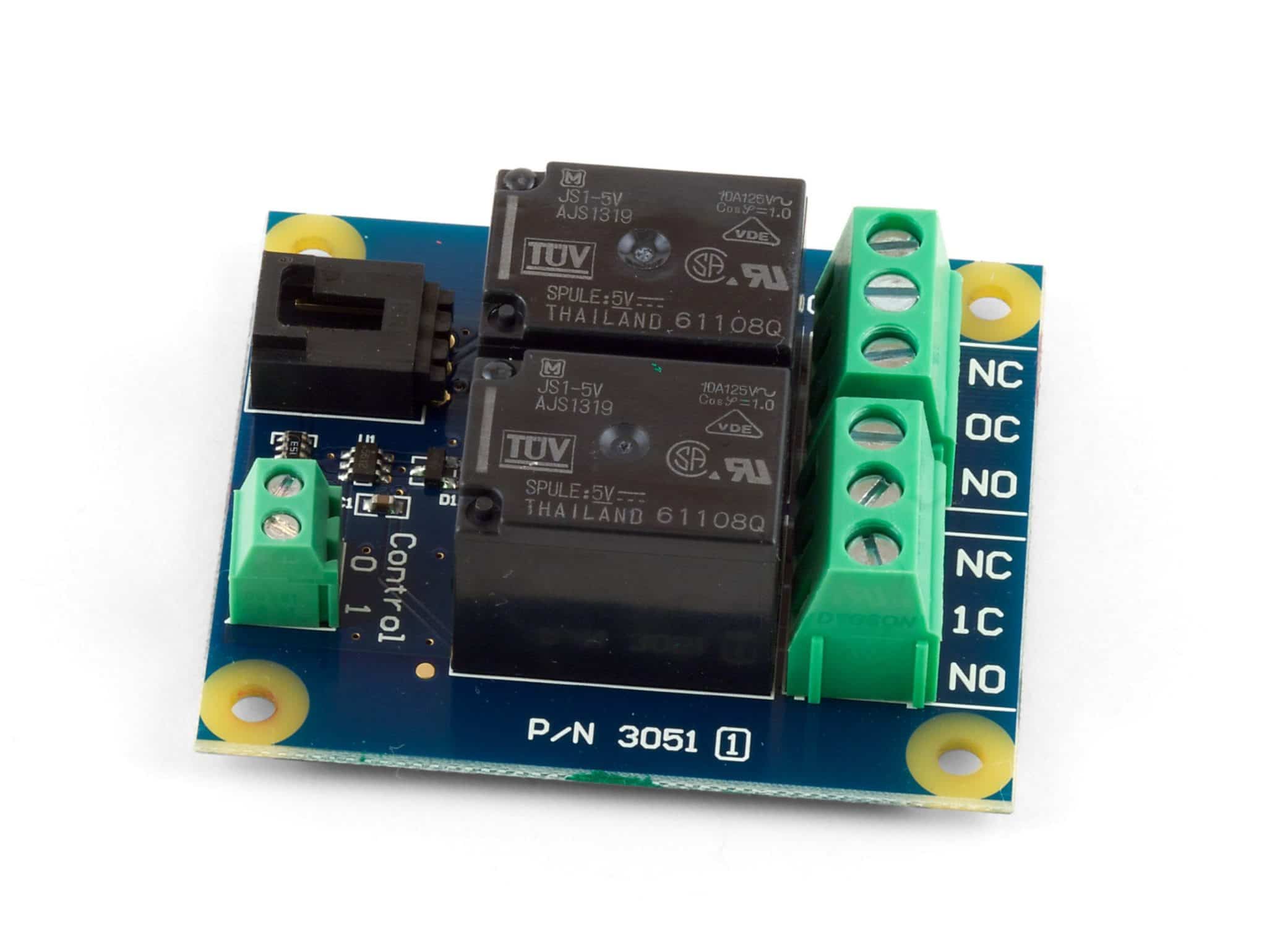

The 3051 contains 2 relays for switching AC or DC power.

The relays are Single Pole Double Throw (SPDT)

The relays can switch up to 240 V AC at 10 Amps and 100 V DC at 5 Amps.

The terminal blocks accept 12-24 AWG wires.

We also have a 4-Relay board that can plug directly into your PC. See the PhidgetInterfaceKit 0/0/4.

Comes packaged with a 60cm Sensor Cable.

Product Manual

Product Manual – board revision 0

The Relay Board connects to an Analog Input on the 33171 PhidgetInterfaceKit 8/8/8 or on the 33260-W PhidgetTextLCDs.
