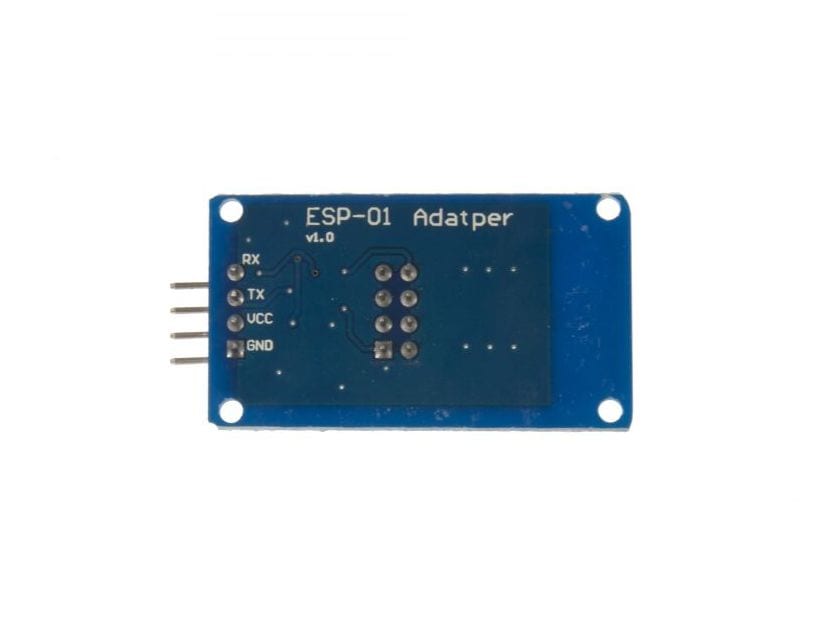

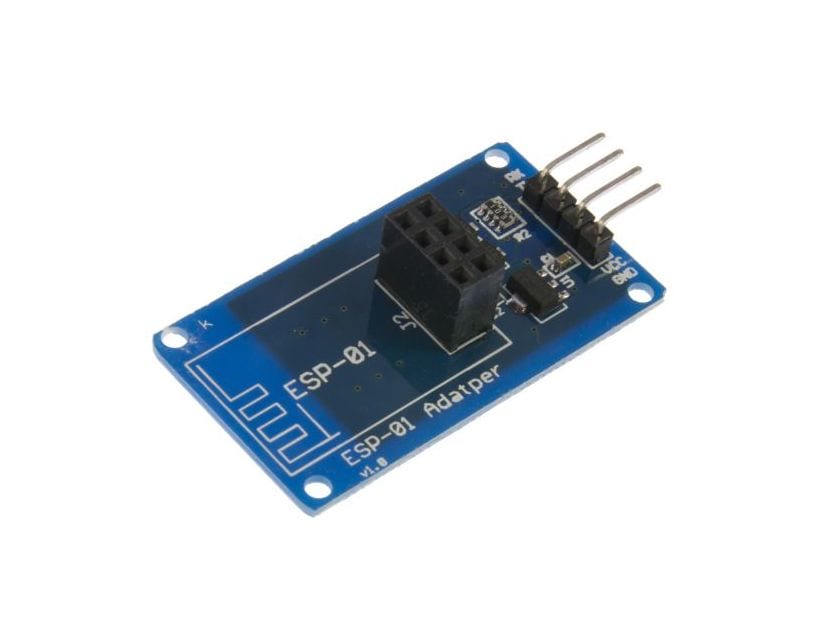

ESP-01 Serial Breakout board with Vreg & Shift levelers

29252

3.00 USD
Qty
Price
1
$3.00 ea.

Simple logic-level-corrected serial interface for the ESP-01 wifi module, with voltage regulation.


Description [Hide]

After you've flashed and programmed your ESP-01, still using in your projects can be inconvenient if you're not giving it a solid 3.3V or have your logic voltages set properly. Fortunately, this inexpensive adapter (or "adatper" as the case may be...) fixes these issues for you.

Specifications:

  • 4.5~5.5VDC Suggested Supply Voltage
  • LM1117 LDO 3.3V Voltage regulator onboard
  • Tx / Rx shift leveler circuitry for 3.3 <--> Vsource translation

Note: This is not an ESP-01 programmer.
