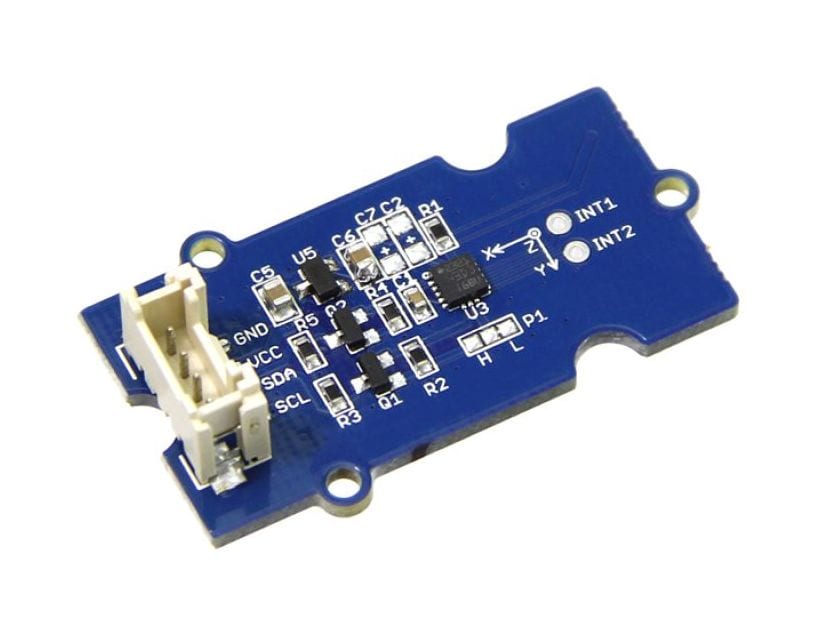

Seeed Grove - 3-Axis Digital Accelerometer

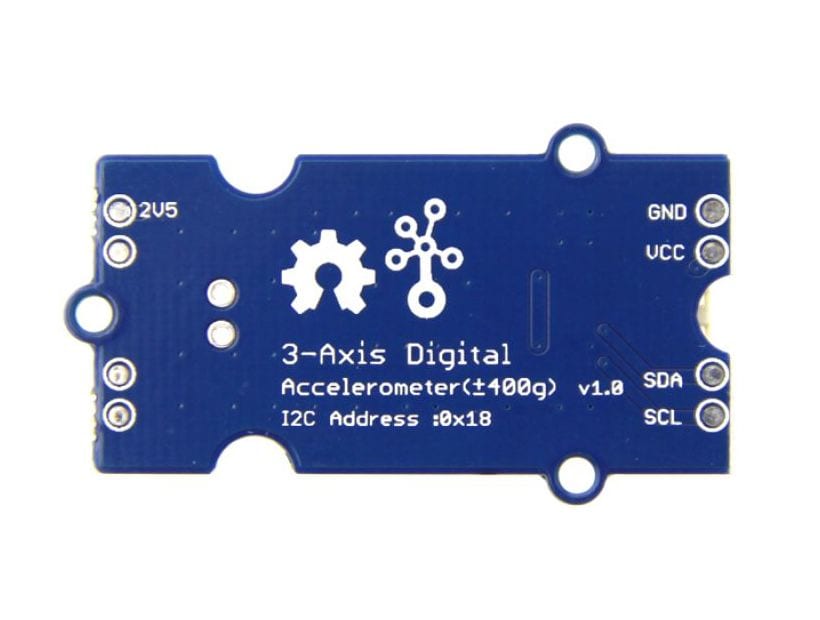

Seeed Grove - 3-Axis Digital Accelerometer - Image 2

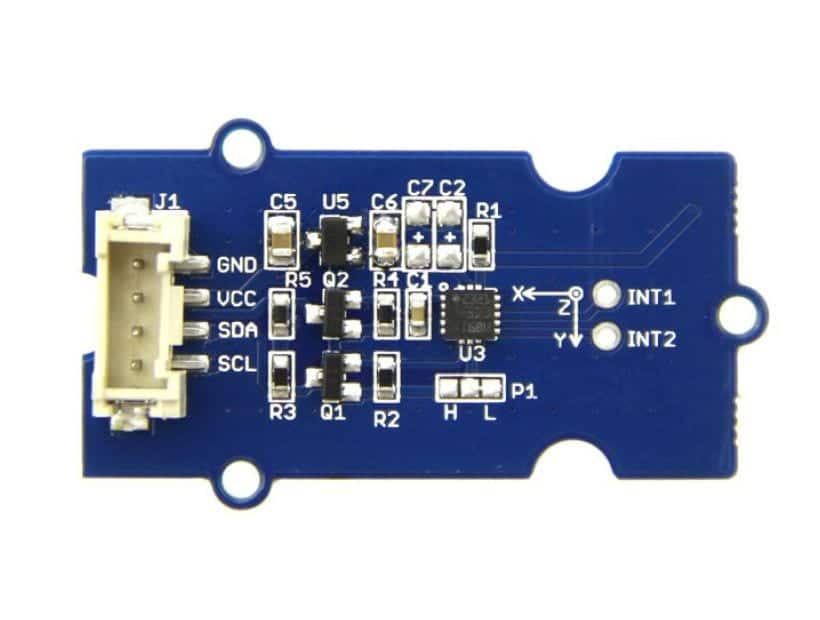

Seeed Grove - 3-Axis Digital Accelerometer - Image 3

Seeed Grove - 3-Axis Digital Accelerometer

USD $27.50

The H3LIS331DL is a low power high performance 3-axis linear accelerometer belonging to the "nano" family, with digital I2C serial interface standard output.

SKU: 29136 Categories: , , Tag:
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS

DESCRIPTION

The device features ultra low power operational modes that allow advanced power saving and smart sleep to wake-up functions. The H3LIS331DL user selectable full scales of ±100g/±200 g/±400 g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz.

Features

  • Wide power range DC3.3V to 5V
  • Grove outline
  • 3 axis sensing
  • Small, low-profile package: 3×3×1mm TFLGA
  • Low power 300µA at 3.3V (typical)
  • ±100g /±200 g /±400 g dynamically selectable full scale
  • I2C digital output interface
  • 10000 g high shock survivability
  • ECOPACK®RoHS and “Green” compliant

RESOURCES & DOWNLOADS

Additional information

Weight 0.0082 kg
Dimensions 7 × 5.5 × 1 cm
