Grove - High Temperature Sensor

When you want to measure extreme temperatures, the go-to tool is a thermocouple, which is a junction between two different metals. The way these metals change conductivity through changing temperatures lets you measure wide temperature ranges. The trouble in using them is that you need to carefully amplify the signal.

The Grove Temperature Sensor features a "K" type unit, with a detectable range of -50 to + 600°C , with accuracy is ±(2.0% + 2°C)

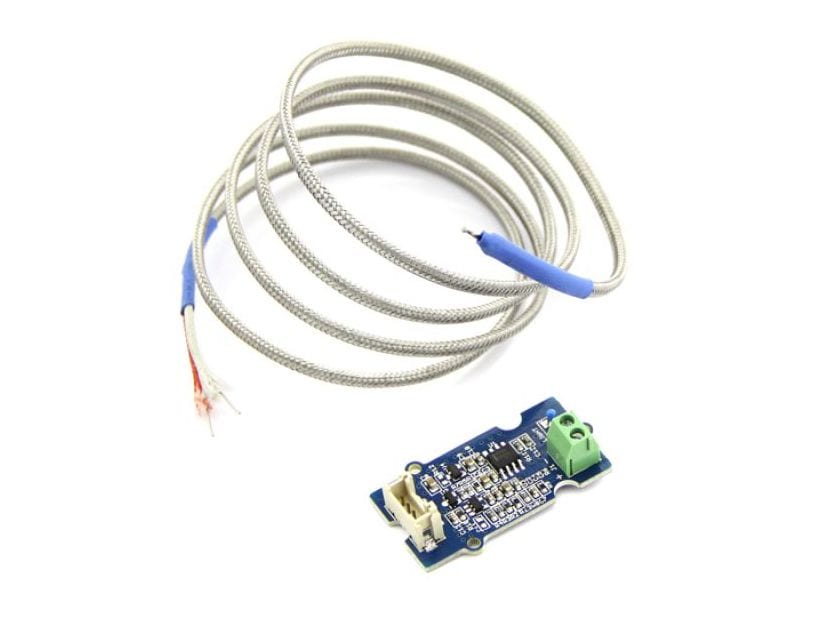

Bundle Includes

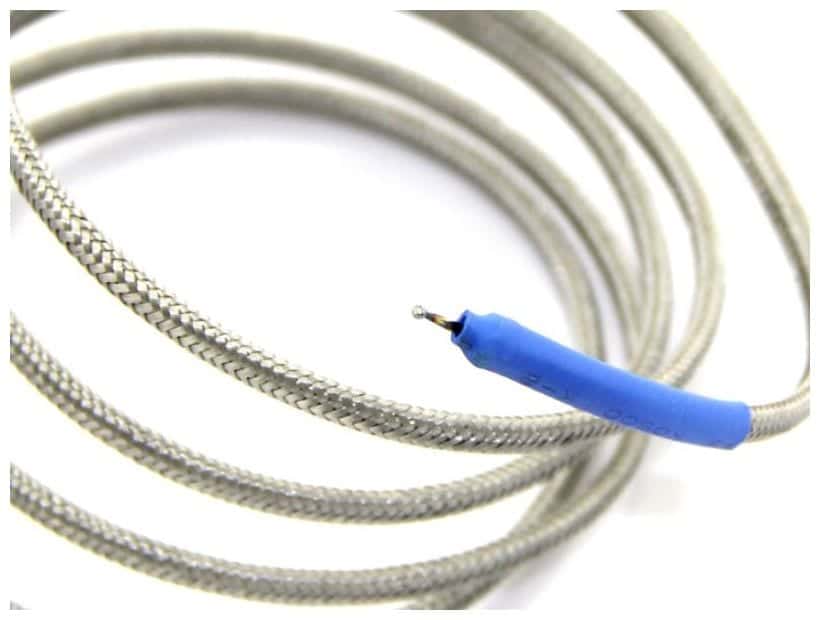

• 1x "K" type high temperature sensor

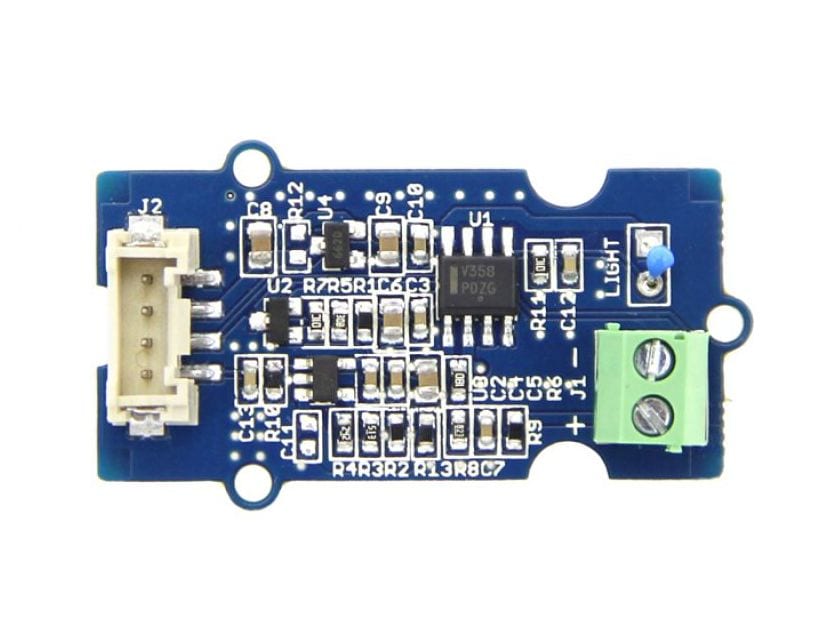

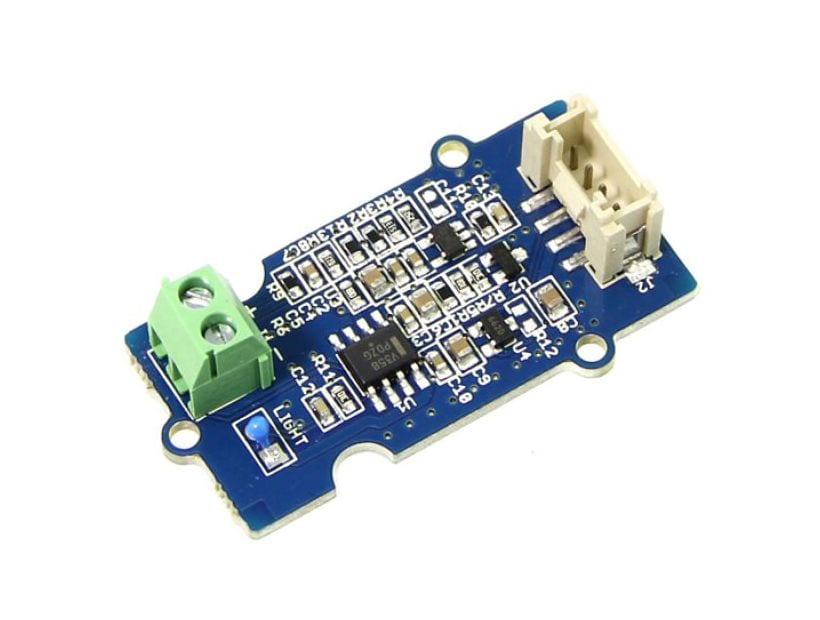

• 1x Grove interface amplifier
• 1x 200mm interface cable

Specifications

• Supply voltage：3.3 ~ 5V
• Operating temperature range：-40 ~ +125°C
• The temperature measurement range is (-50 ~ +600°C)
• Cold junction compensation (environment temperature measurement)
• Thermocouple temperature measurement accuracy of +/- 2.0% (+ 2°C)

Links

• SeeedStudio's GitHub
