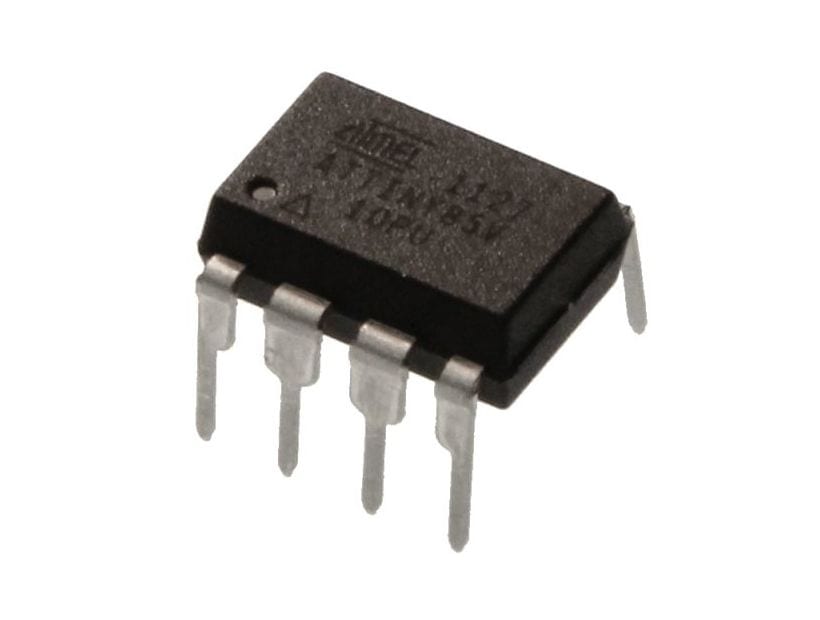

ATtiny85V

28905

$2.41

USD

Qty
Price
1
$2.41 ea.
25+
$1.51 ea.

Yay! It's a low voltage version of the ATtiny85 that also offers 8kB of flash.


Description [Hide]

8kBytes of In-System Self-Programmable Flash, 512 Bytes In-System Programmable EEPROM, 512 Bytes Internal SRAM. Two 8-bit timer/counters with PWM and prescaler, 10-bit ADC, I2C Interface, and debugWIRE for on-chip-debug. Up to 20 MIPS throughput at 20 MHz with an external oscillator. 1.8 - 5.5 V operation, 1.8V logic level available with an oscillator at 4MHz or below. Half the flash (4KB) version: ATtiny45 2KB version: ATtiny25

Specifications:

Program Memory Size - 8kB
RAM Size - 512B
Number of I /O - 6

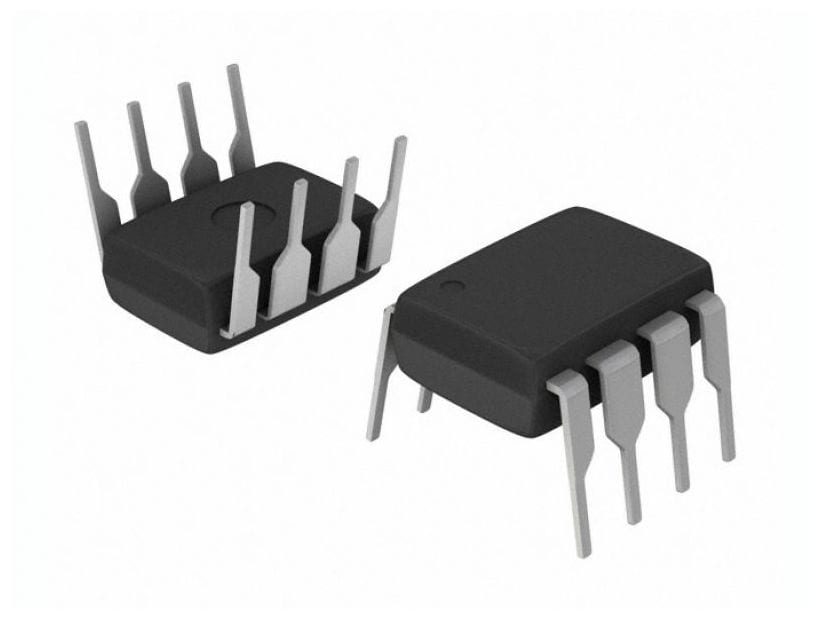

Package / Case - 8-DIP (0.300", 7.62mm)
Speed - 10MHz
Oscillator Type - Internal
Program Memory Type - Flash
EEPROM Size - 512B
Core Processor - AVR
Data Converters - A/D 4 (10 bit resolution)
Core Size - 8-Bit
Operating Temperature - -40°C ~ 85°C
Connectivity - USI
Peripherals - Brown-out Detect/Reset, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd) - 1.8 V ~ 5.5 V

Cross-relation:

  • pin and feature compatible with tiny25, more memory.
  • pin and feature compatible with tiny45, more memory.
