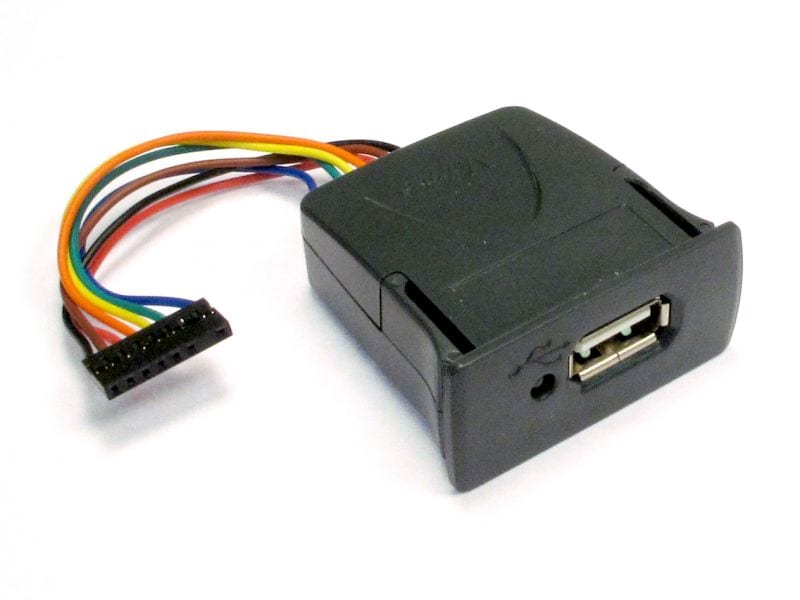

VDrive2 USB Module

28606

28.95 USD
Qty
Price
1
$28.95 ea.

Add a USB drive or thumbdrive to your microcontroller!


Description [Hide]

Running out of space for datalogging from your micro? The Vinculum VDRIVE2 is a tidy way to add a USB drive to your microcontroller project! Only four signal lines plus 5V supply and ground are required to be connected!

Specifications:

  • The FTDI VNC1L embedded USB host controller IC
  • USB 'A' socket
  • Data-activity LED
  • Jumper selectable UART or SPI interface
  • Front-enclose mountable via snap mounts
  • Firmware upgradeable via USBZ Flash or UAT
  • VNC1L firmware programming control pins PROG# and RESET# brought out onto internal jumper interface
  • RoHS compliant

Documentation [Hide]
