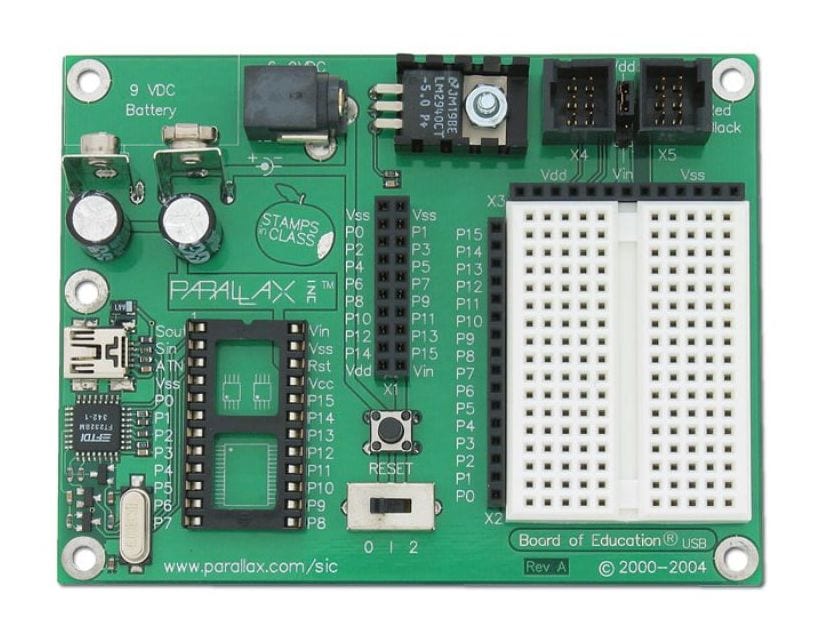

Board of Education (USB)

The BOE was originally designed for educational customers to teach microcontroller programming; and while this is still the most popular application, the BOE has become the most popular all-around development board for the BASIC Stamps.

The majority of the Stamps In Class (SIC) student guides (i.e. Robotics with the Boe-Bot) requires a BASIC Stamp 2 module with a Board of Education carrier board. Even if you aren’t using our SIC curriculum, the ease of use and expandability make the BOE an ideal project board for any BASIC Stamp 2-series microcontroller experimentation.

Main Features:

• Mechanically interlocked power supply to prevent dual connection of wall-pack and 9-volt battery
• USB connector for BS2-IC programming
• P0 - P15 I/O pins, Vdd and Vss connections brought adjacent to 5.1 x 3.5 cm (2" x 1 3/8") breadboard area
• Includes set of ten (10) color-coded 22 gauge wires
• Female 10-pin dual row connector for optional AppMods (more breadboard space)
• Traces on top of the board show connections between BS2-IC and breadboard connections
• Fully Assembled and ready to use.

NOTE: BASIC Stamp sold separately.
