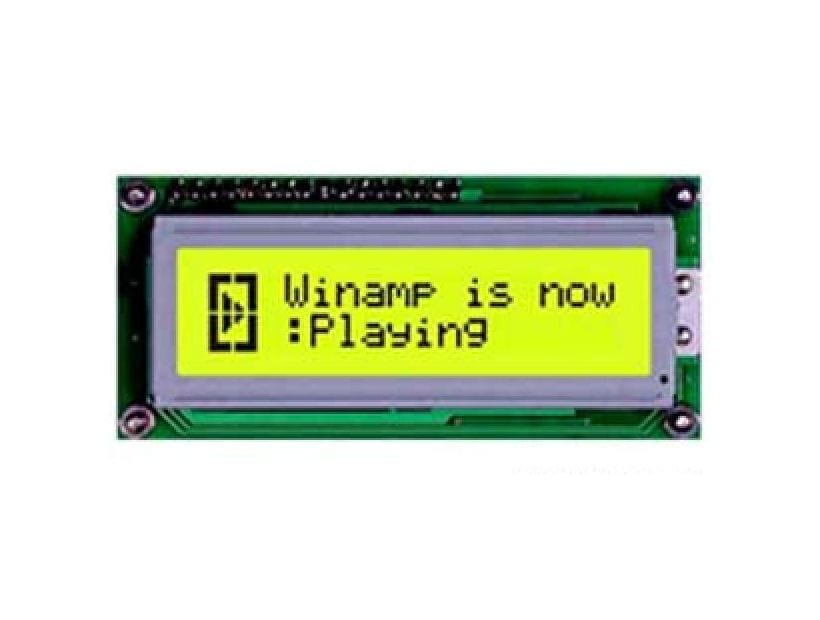

LK162-12 Serial LCD Module

18100

49.95 USD
Qty
Price
1
$49.95 ea.

Slim and space efficient, this unit is used in a variety of industrial applications such as computer servers and web application control systems.


Description [Hide]

Networkable via the on-board I2C interface.

Display Appearance
Character / Lines
Pixels
Module Size (mm)
Character Size (mm)
Display Size (mm)
16 x 2
N/A
80 x 36 x 27.5
2.95 x 5.55
62.5 x 16.1
Background Colour
Text Colour

Yellow/Green
Black

Features
Keypad
One Wire
GPO
Advanced GPO
Memory Chip Size
12
0
7
0
N/A
Interface
RS-232
TTL
Buffer
Other

1200 - 19200 bps
1200 - 19200 bps
80
I2C

Environmental
Standard Temp (°C)
Extended Temp (°C)
Humidity

0 to +50
-20 to +70
90%

Power Requirements
Supply Current (mA)
@ 5VDC
Supply Current With Backlight (mA)
Inrush Current (mA)

10
94
N/A
