RJ22 4-pin Male Connector + Wire

15012

0.85 USD
Qty
Price
1
$0.85 ea.
2+
$0.55 ea.

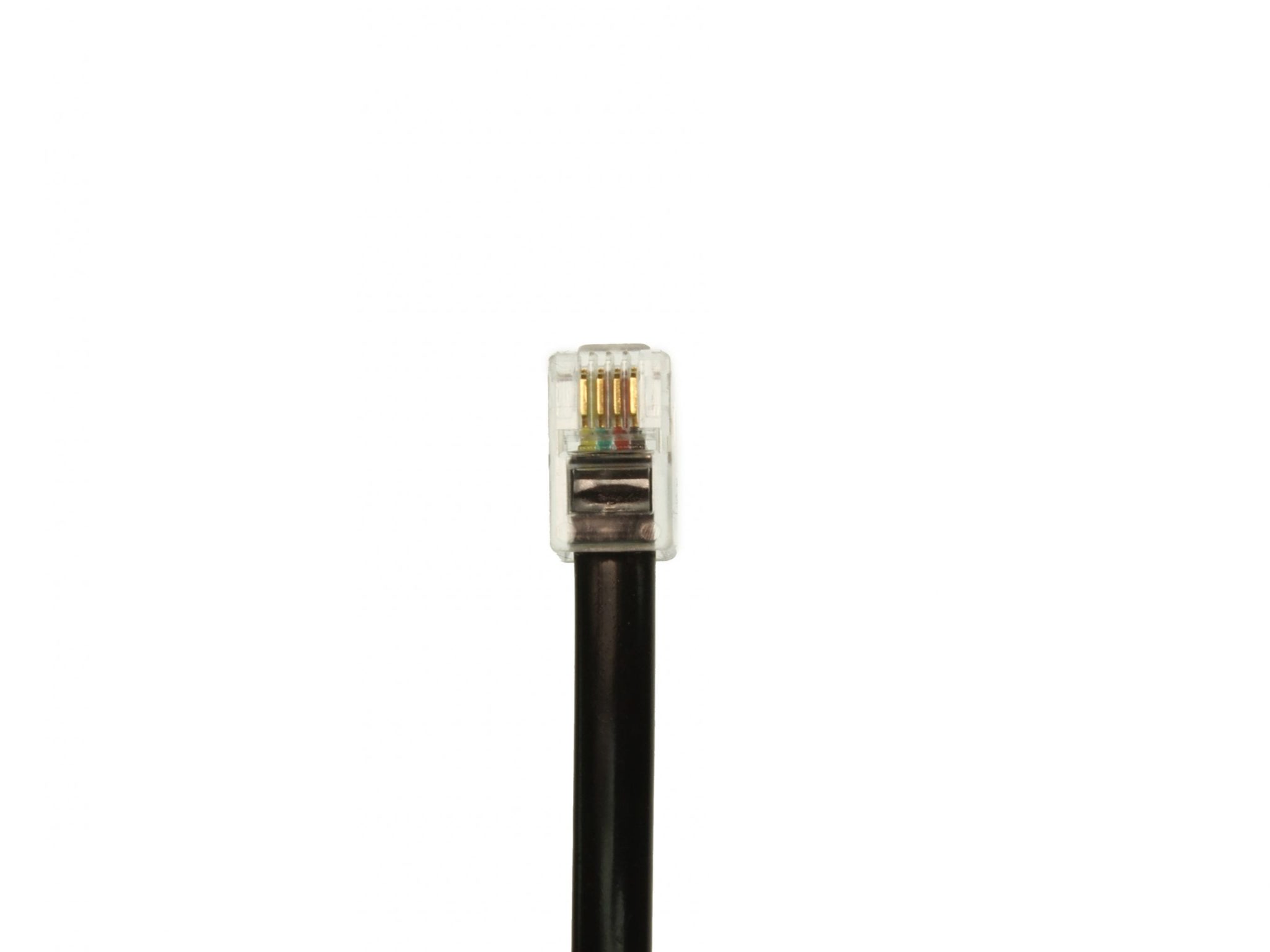

This RJ22 4-pin Male Connector is usually the standard plug for telephone headsets and handsets but can easily be repurposed for all kinds of 4 conductor applications.


Description [Hide]

This clear polycarbonate plug with 4 conductor wire is approximately 18" long (combined length). This plug is also called by common names such as RJ9, RJ10, & 4P4C. Double your fun with the mate to this plug: the RJ22 4-pin Female Right-angle connector. Use this plug/receptacle combo in applications where 4 conductors are needed.

 Specifications:

  • Housing: Polycarbonate UL94V2
  • Contact Blade: High Strength Copper Alloy
  • Operating Temperature: -40ºC~125ºC
  • Current rating: @250VAC - Max 2A
  • Dielectric Strength: 500VAC
  • Insulation resistance: 500Mohm
  • Tensile Strength: 20lbs. min.
  • Durability: 500 mating cycles
