Bulbdial Clock Kit (With Case)




$85.00 ea.
$71.93 ea.

LED Colour
Acrylic Colour

This kit from Evil Mad Science works like an indoor sundial, but with three shadows of different length. This version comes with your choice of laser-cut Acrylic case.

Description [Hide]

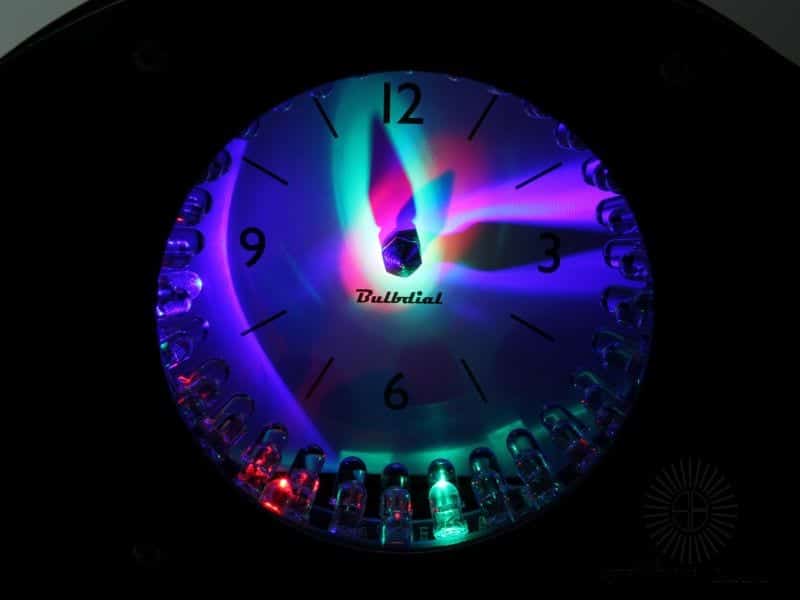

The Bulbdial Clock kit is based on an original design concept from IronicSans.com and developed at Evil Mad Scientist Laboratories. It works like an indoor sundial, but with three shadows of different length. You tell the time just like you do on a normal clock, by reading the positions of the hour, minute, and second hands.

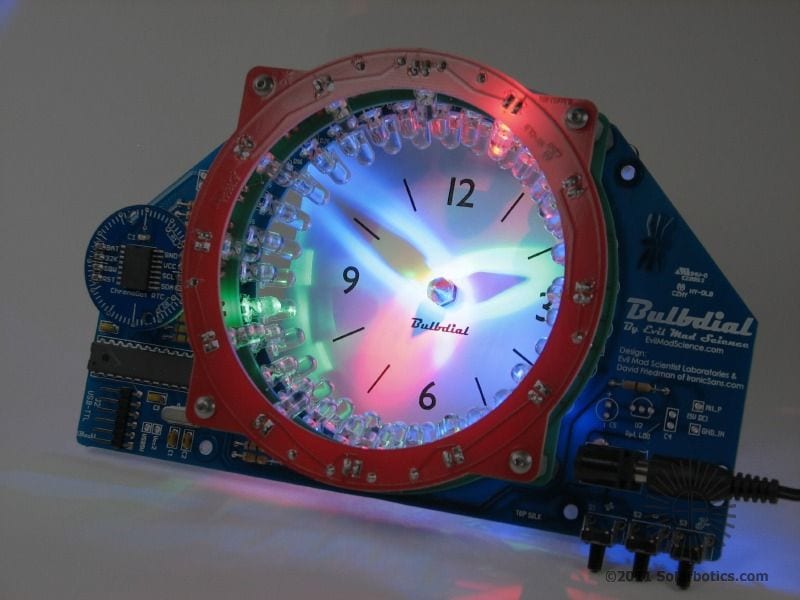

The basic Bulbdial clock kit ($65) comes complete with three custom circuit boards, 72 ultra-bright LEDs, pre-programmed ATmega168 microcontroller with Arduino bootloader, tactile button switches, aluminum standoffs, 20 ppm quartz crystal, custom clock face, gnomon spike, universal-input plug-in power supply, stainless mounting hardware, plus the resistors, capacitors and other little parts needed to build the Bulbdial clock.

LED Style
The kit comes with 12 red, 30 green, and 30 blue LEDs, marking hours, minutes, and seconds. The colors provide contrast and tend to mix in interesting ways. This is the standard 3-color option. You can instead get one with 72 white LEDs, for simple elegance at the cost of some contrast.

Case Style

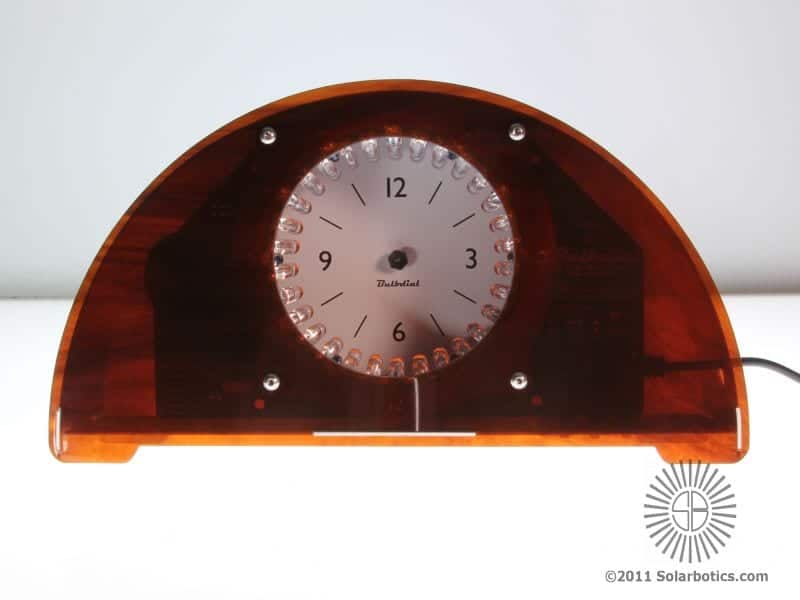

The Bulbdial clock is designed to be mounted in a handsome, laser-cut acrylic case (included) that makes it suitable for desk or mantle use. It is offered in tortoiseshell and black. Or you can get just the Bulbdial Kit, without the case, right here.

The FTDI USB-TTL converter module provides an optional interface between your computer and your Bulbdial clock. It can be used (1) to sync the Bulbdial's time to the time on your PC, (2) to reprogram the Bulbdial clock through the Arduino IDE, or (3) to make the Bulbdial clock into a USB powered Bulbdial clock.

Building it
The Bulbdial Clock is sold as a soldering kit. Basic electronic soldering skill is required, and you provide basic soldering tools: a soldering iron + solder and small wire clippers. You will also need internet access to read or download the detailed assembly guide. No additional knowledge of electronics is presumed or required. Easy "through-hole" construction and clear, photo-heavy instructions are provided. Assembly time: 1-3 hours, depending on your level of experience with soldering.

The Bulbdial clock kit is open-source in both hardware and software, and is designed to be user friendly and hacker friendly. The on-board microcontroller is an ATmega168, running a program atop the Arduino bootloader. FTDI USB-TTL and AVR-ISP programming header locations are provided on the circuit board. The circuit board also features alternate mounting hole locations-- in case you're building a different case, and a location for a 5 V regulator. An extended introduction to the project and its design is available here. The schematic diagrams and source code are posted and available for download on that page.

Power supply
The Bulbdial clock kit includes a universal-input power supply that will work with worldwide voltages. The plug is a power-strip-friendly US type, so you may need an inexpensive "grocery store" plug adapter to fit the wall socket in your country.
