Ultra Bright LED

UBLED

$0.75

USD

Qty
Price
1
$0.75 ea.
20+
$0.35 ea.

Colour

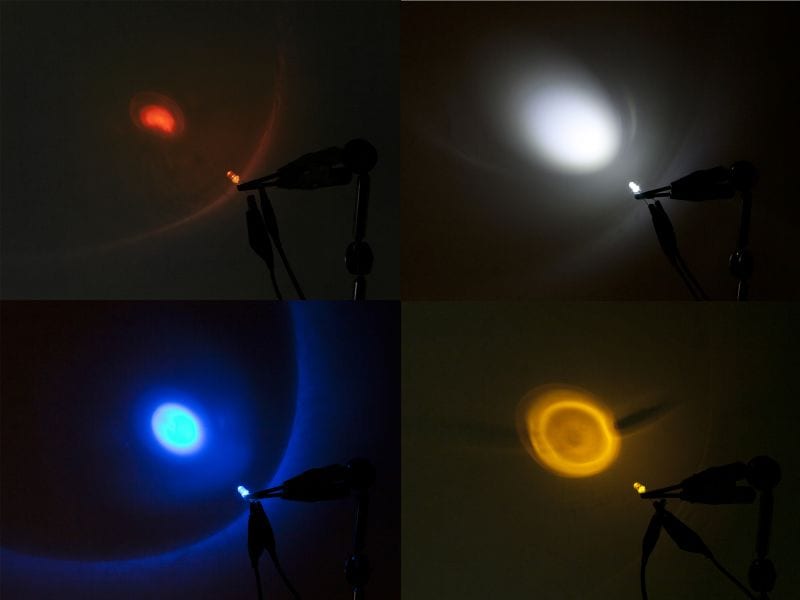

These water-clear standard sized (T1-3/4) LEDs are considerably brighter than most other LEDs in their class. Available in red, green, yellow, blue and white.


Description [Hide]

We originally brought these LEDs in for some solar-powered lantern kits (check out the PumLantern) as they have a nice focused beam for throwing shadows.

These LEDs have a nominal working current of 20mA, with a maximum rating of 30mA continuous and 150mA pulse (1/10 duty cycle @ 1kHz).

Colors Available

  • Orange (2000mcd, 2.1Vfwd)
  • White (10000mcd, 2.7Vfwd)
  • Blue (5000mcd, 2.7Vfwd)
  • Red (1000mcd, 1.95Vfwd)
  • Yellow (2200mcd, 2.1Vfwd)
  • Green (700mcd, 2.2Vfwd)
