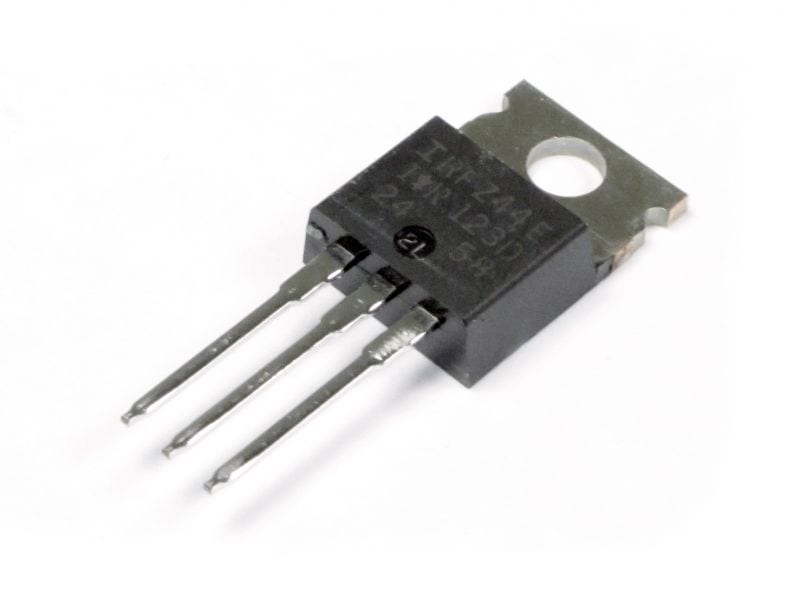

IRFZ44E N-Channel FET

TRIRFZ44E

2.25 USD
Qty
Price
1
$2.25 ea.
2+
$2.03 ea.
10+
$1.92 ea.

The IRFZ44E is a very powerful useful N-Channel FET, with only 0.023ohms resistance pushing 29 amperes at 10V!


Description [Hide]

The IRFZ44E is one tidy, powerful FET. And yes, it's still in a through-hole, TO-220AB shape. This bad-boy has a very low on-resistance of only 0.023 ohms! That...that's amazing! Especially when compared to the transistors "back in my day..." .

Mounting Type Through Hole
FET Type N-Channel
Drain-to-Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25° C 48A
Rds On (Max) @ Id, Vgs @ 25° C 23 mOhm @ 29A, 10V
Input Capacitance (Ciss) @ Vds 1360pF @ 25V
Power - Max 110W
Gate Charge (Qg) @ Vgs 60nC @ 10V
Package / Case TO-220AB
