37 x 66mm Monocrystalline Solar Cell
SCC3766
11.00
USD
Qty
Price
1
$11.00 ea.
2+
$8.25 ea.
25+
$7.43 ea.
50+
$7.15 ea.
This big brother of the SCC3733 is also an epoxy-encapsulated monocrystalline solar cell, but this one offers 8 volts and 44mA in a 37 x 66mm package!
Description [Hide]
The next in our series of small-scale, high voltage solar cells is the SCC3766. Nominally rated at 6.7V and 30mA, our direct-sunlight tests show just over 8V open-circuit, and 44mA short-circuit!

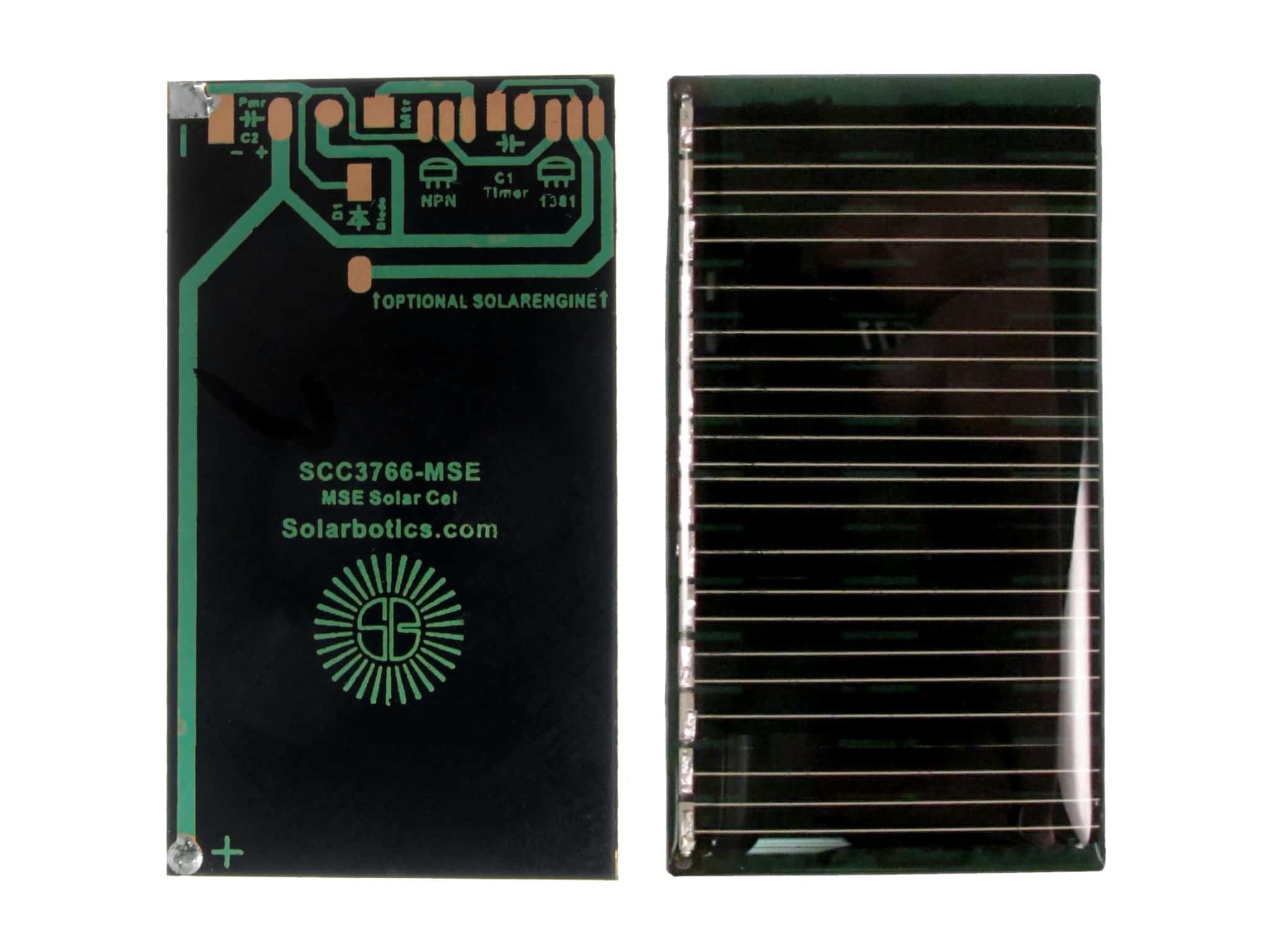

Epoxy protects the 14 cells mounted on a PCB backplane, making these very robust. You won't risk breaking these like the old glass-backed cells.
These new cells also feature a SOT123 footprint on the backside for installing a user supplied parallel-wired zener diode for over-voltage protection.
Documentation [Hide]
- [Schematic]: Solarcell Wiring Diagram - Series vs Parallel
- [Data Sheet]: Solstice 2007 - Solarcell Tests
