Regular Motor 2

RM2

2.25 USD
Qty
Price
1
$2.25 ea.
2+
$1.90 ea.
25+
$1.83 ea.
100+
$1.59 ea.

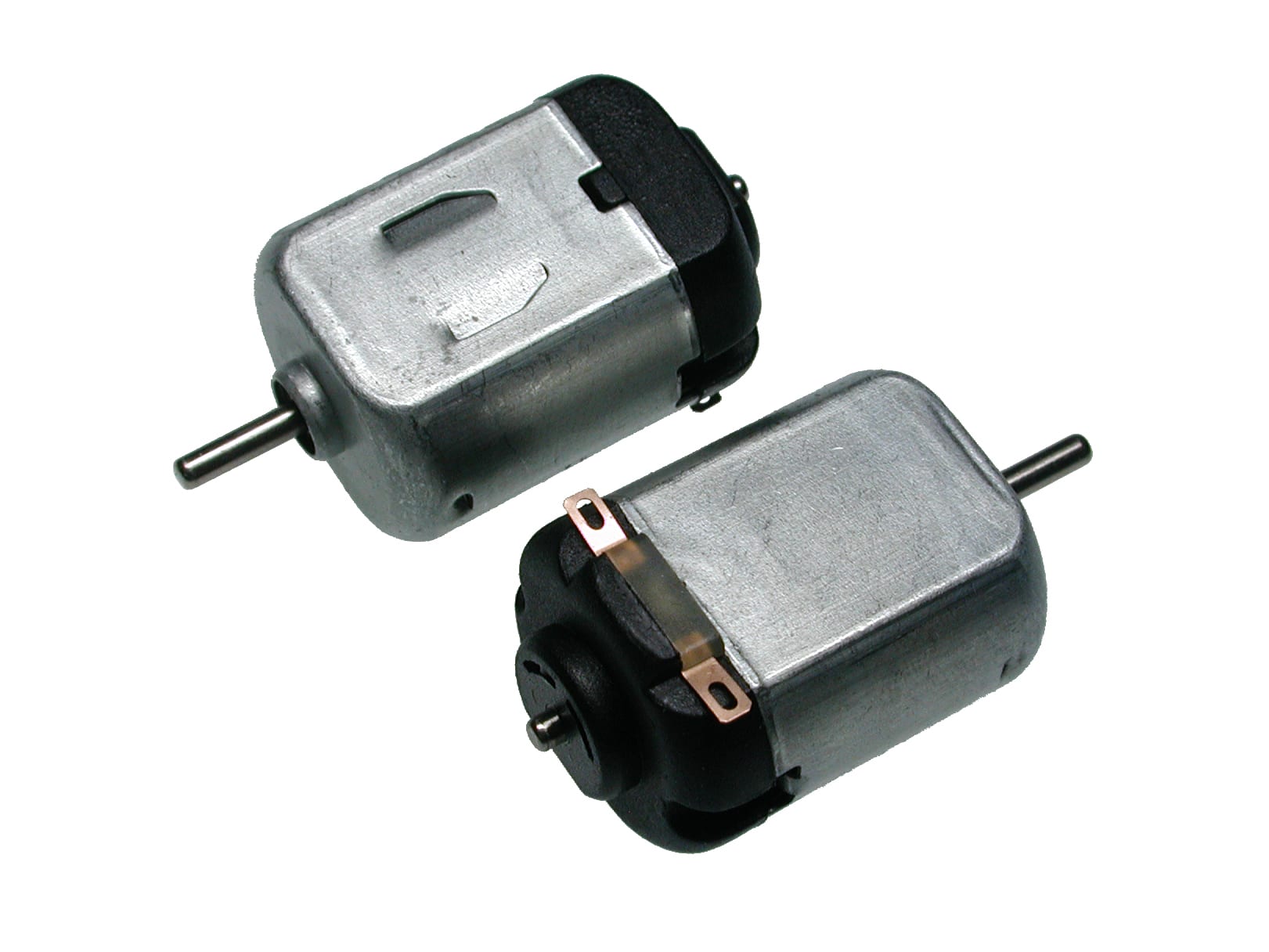

Need more power out of your gear motor? This is a high-power motor that fits in the same form factor as used by the GM2/3/8/9 style gear motors.


Description [Hide]

This 130 form-factor high-power motor fits in the GM2/3/8/9 series of gear motors, offering approximately 3 times the speed, twice the torque and quadruple the power-draw! Retrofitting the gear motor is easy - just remove the motor retainer strap, transfer the pinion gear, and reinstall - that's it!

NOTE: Be forewarned - we're not kidding about the increase in power requirements and output! This motor eats batteries quickly!

Now includes output shaft plastic pinion gear!

Documentation [Hide]
