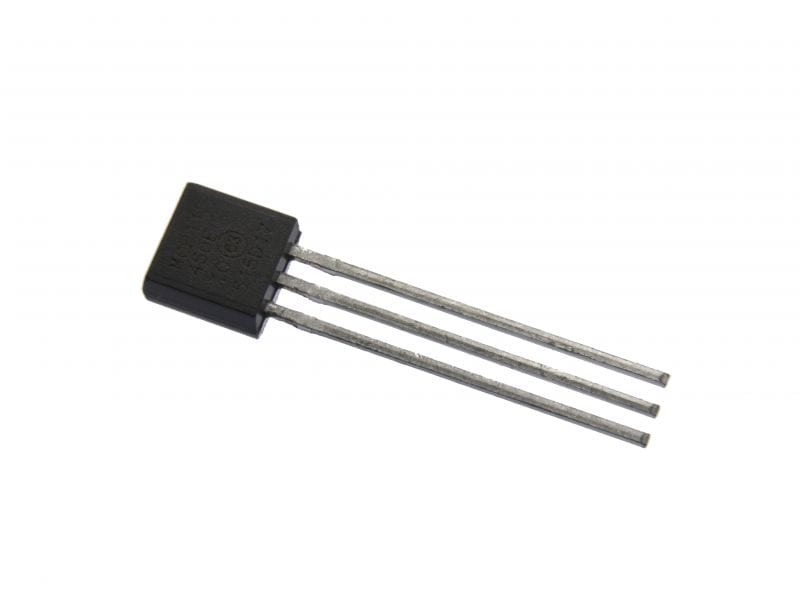

MCP112 Voltage Trigger

MCP112

1.50 USD
Qty
Price
1
$1.50 ea.

The Microchip MCP112 voltage trigger is the direct drop-in replacement for the fabled Panasonic 1381x voltage trigger used in our SolarEngine circuitry.


Description [Hide]

With the 1381x going the way of the dinosaurs, we searched high and low for a pin compatible drop-in replacement for our SolarEngine circuitry. Luckily the MCP112 does just that! The number suffix after the 'MCP112' determines the voltage it detects. Choose your flavor from the following table:

Value Preset voltage trigger point RoHS Compliant
MCP112-195 1.90 (1.872 to 1.929) Yes
MCP112-240 2.32 (2.285 to 2.355) Yes
MCP112-270 2.630 (2.591 to 2.670) yes
MCP112-315 3.08 (3.034 to 3.126) Yes
MCP112-450 4.38 (4.314 to 4.446) Yes

Specifications:

  • Operating Voltage Range: 1.0 - 5.5V
  • Operating Current: 1.75uA max
