Solarbotics Sumovore PIC Brainboard V2.0

K SV-PIC

25.95 USD
Qty
Price
1
$25.95 ea.

Using one of the most popular styles of microcontrollers, this brainboard add-on replaces the standard discrete-logic brain with an established, powerful microcontroller! For use on select products.


Description [Hide]

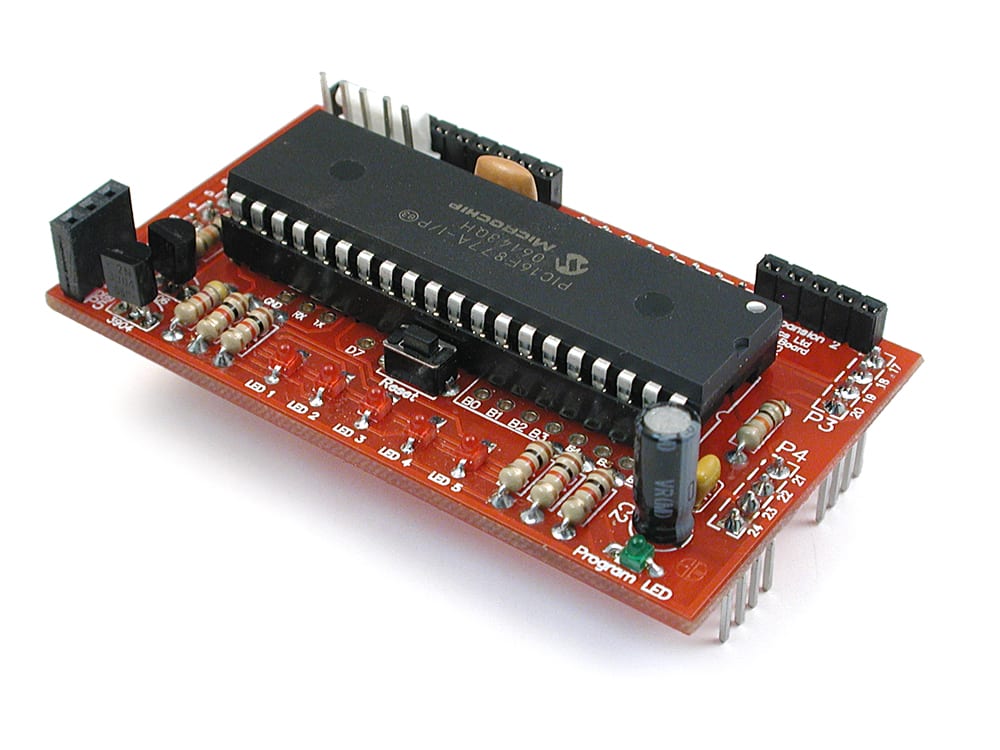

If you're a microprocessor fanatic at heart and you want to make your Sumovore programmable with a PIC, replace the standard discrete-logic brain with the Microchip 16F877A brainboard add-on, featuring:

  • 33 I/O lines
  • Eight 10-bit ADC
  • Two PWM channels
  • In-circuit programming
  • Five indicator LEDs
  • Refined I/O usage
  • Small Brainboard footprint
  • Optional expansion bus (and breadboard)
  • 3-pin RS-232 serial programming


The chip comes pre-programmed with default mini-sumo and line-follower code.

Dan Peirce from the Kwantlen Polytechnic University has been using the Sumovore as part of their APSC1299 program).

He's ported the Linefollower portion of the JAL code to Hi-Tech's (free!) full program resource link) NOTE: This code has not been tested with the new Version 2 Brainboards!

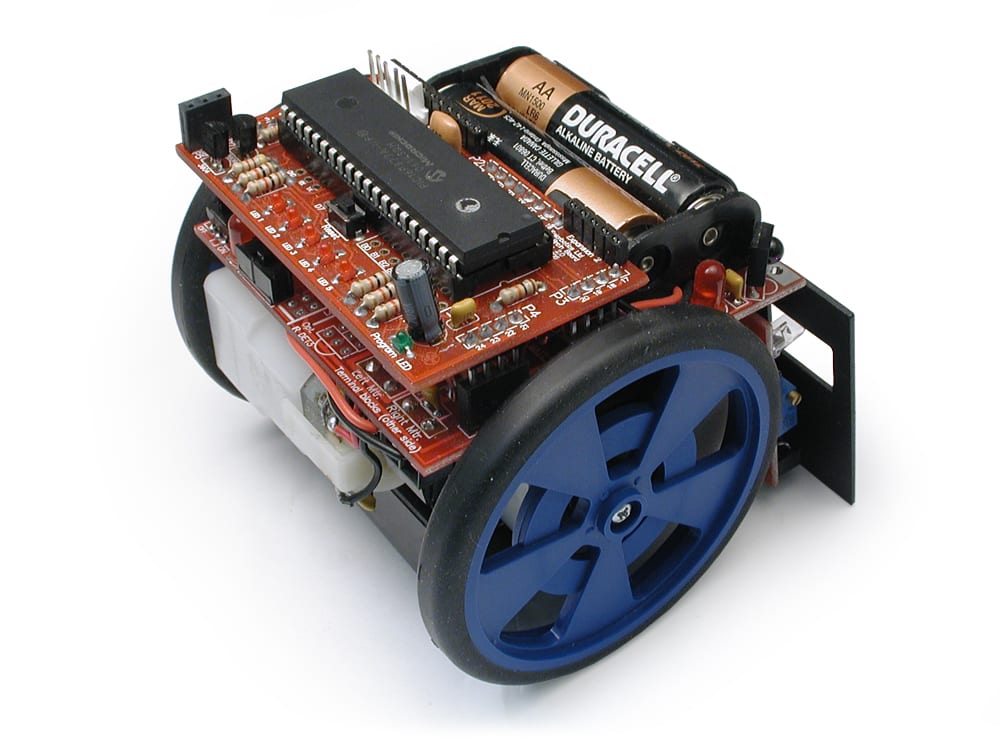

This kit is designed to work with the Sumovore Kit or any product that accepts Solarbotics Brainboards.

Documentation [Hide]
