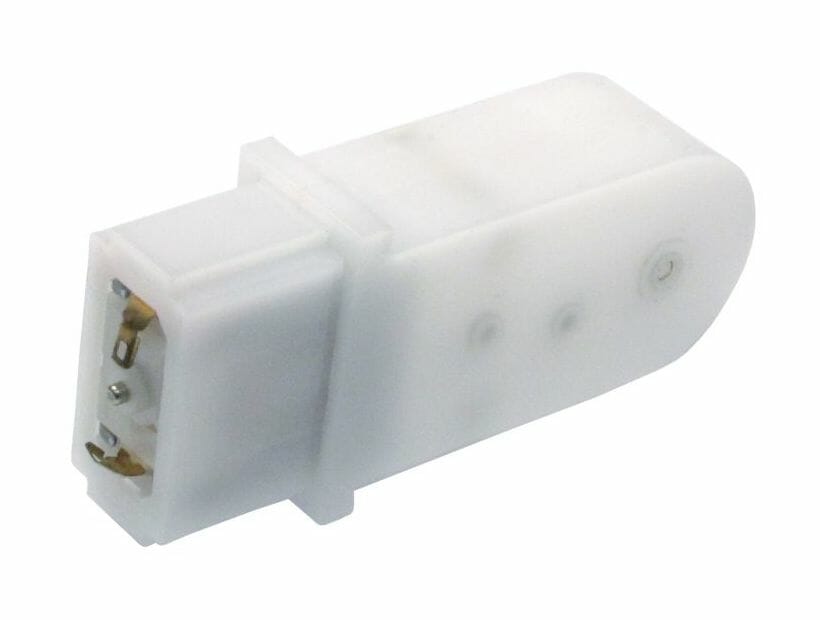

Gear Motor 7 - 120:1 "Baby GM3"

Solarbotics is the sole commercial outlet for the impressive GM7, which is a baby version of our popular GM3 gear motor. Designed by Mark Tilden to have tighter tolerances and better performance than a regular toy-style motor, these smaller, quicker 120:1 gear reduction ratio'd motors are sure to stir ideas!

This gear motor starts rotation at 0.58 volts, turning 7RPM drawing only 46.5mA. At 6 volts, this unit really hums, spinning at 146RPM and drawing 92mA no-load (524mA stall producing 23.78in*oz torque). We've successfully used these units very well on solarengine circuits.

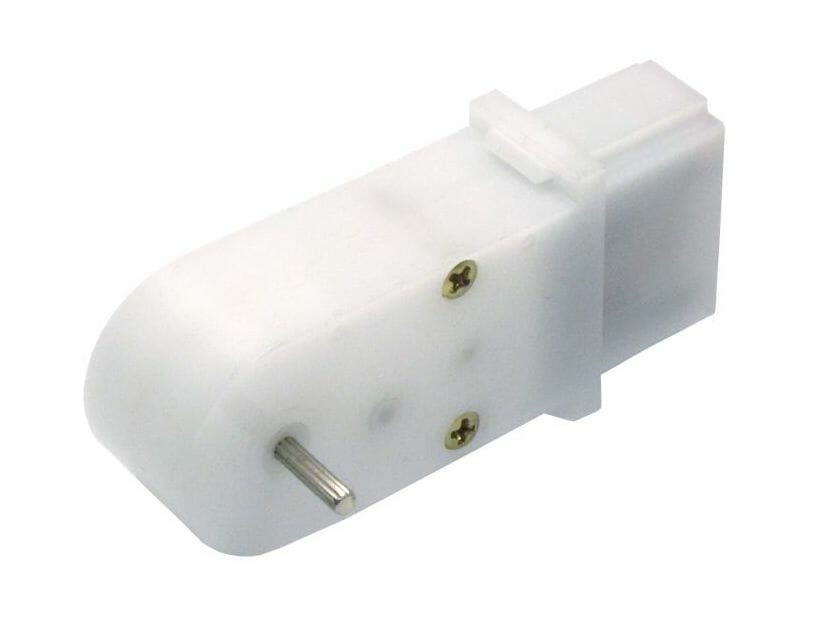

Like it's big-brother, this gear motor also has a built-in safety clutch which engages at approximately 25in*oz (at 6.5V / 650mA). This motor also has a unique 2mm (0.08") crest diameter chrome-finish splined shaft (length 8.3mm) that can be pushed through the output gear to either side of the motor, and is also solderable! (If you do want to solder to it, yank the shaft right out, solder, then press it back in).

These motors have an overall size of 58.0mm x 24.8mm x 22.3mm (2.28" x 0.98" x 0.88"), and weigh in at only 19 grams (0.67oz). A tidy package, with pretty good power!

• [Data Sheet]: Solarbotics Gearmotors Specification Summary
• [Documentation]: Solarbotics GM7 3D Model
• [Data Sheet]: GM7 Mechanical Drawing - Imperial (PDF)
• [Data Sheet]: GM7 Mechanical Drawing - Metric (PDF)
• [Data Sheet]: GM7 Performance Datasheet PDF (155KB)
