Gear Motor 23 - 1:192 Offset Shaft

GM23

5.00 USD
Qty
Price
1
$5.00 ea.
2+
$4.25 ea.

This 1:192 Tiny Geared Pager Motor has an offset shaft much like the GM2, but is roughly half the size in every dimension. We suspect that these were the motors used for the Magic school bus in it's miniature state.


Description [Hide]

Use this tiny lightweight gear motor for crazy things like wall climbing robots, automatic tooth-brushing, or fancy marble machines. These would also be great for competition Micro Sumobots or any other mini-robot for that matter. Make a robot so small that it can fit inside another robot!

Control this motor with a motor driver board such as the Secret motor driver kit or another small H-bridge connected to a small microcontroller such as an Ardweeny or Arduino Pro Mini.

Specifications:

Gear Ratio   : 1:192
Operating Voltage : 3.0V
Current draw (no load)
: 30~80mA
RPM (no load) : 100~410 rpm
Output Torque : 0.06~0.48Kgf.cm
Weight : 3.7 g

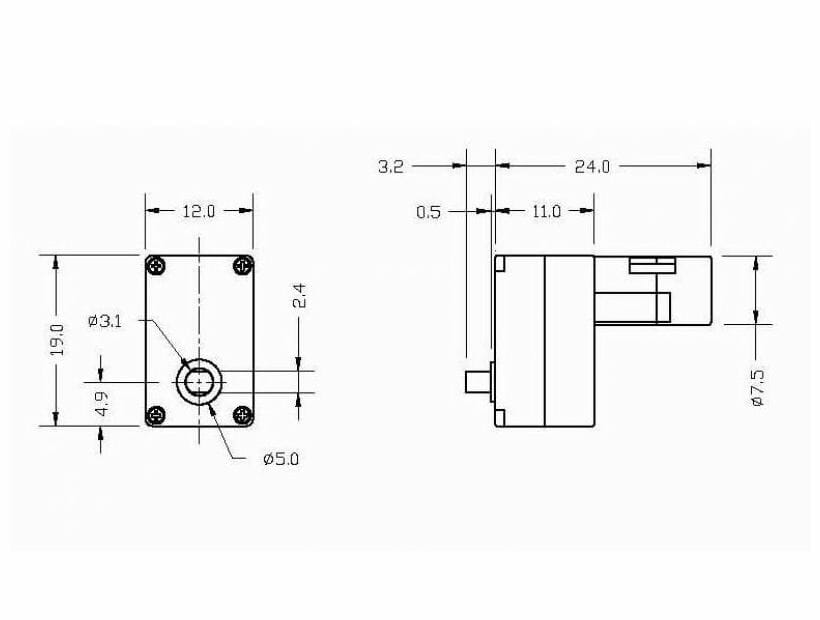

Dimensions pictured in the third picture above.
