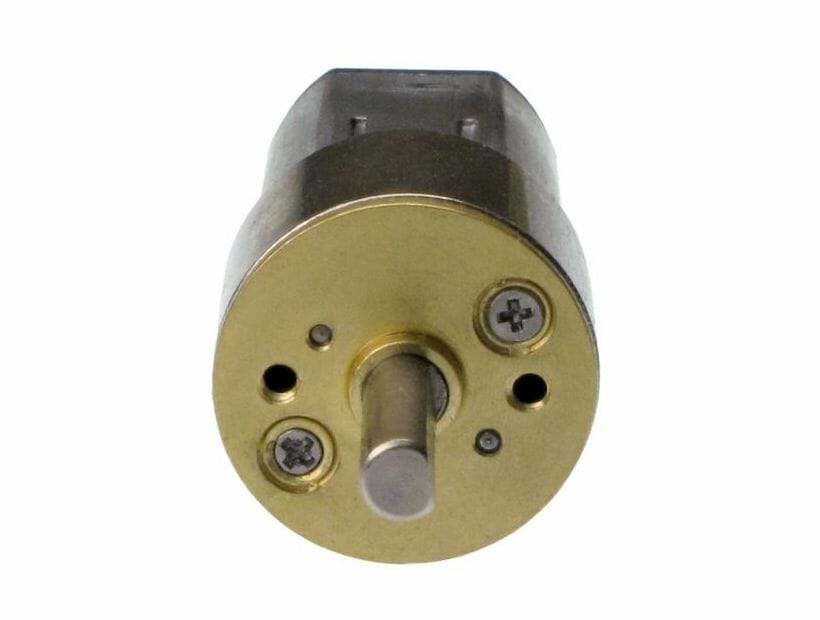

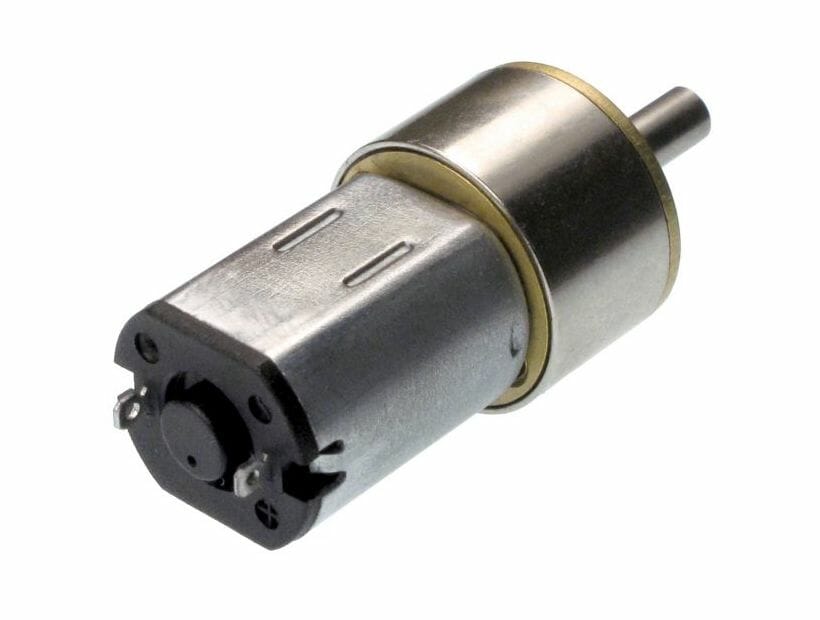

298:1 Mini Metal Sealed Gear Motor

GM22

$19.75

USD

Qty
Price
1
$19.75 ea.
2+
$15.95 ea.
50+
$13.95 ea.

With almost twice the torque of the GM14a, the GM22 298:1 Mini Sealed Metal Gear Motor is the most compact torque monster we have!


Description [Hide]

The GM22 mini metal sealed gear motor is the same form-factor of its siblings, but it has far more torque - almost twice as much as the GM14a at 3V! Did we mention it also has a sealed gearbox?

These also have a beefier set of mounting holes, threaded for M1.6 metric screws. Yes, it can a pain to find metric screws (sorry).

Offering 35.2 in*oz (2534 gms*cm) of torque at 3V, it's a real finger twister - ideal for high-torque solar-powered (or 2AA) applications. And with a sealed gearbox, it makes it ideal for building Turbot tumbling robots, which usually stir up all sorts of dust and grime.

These motors have an 8.7mm shaft length - check out the Specs for additional statistics, or the Resources tab for a downloadable PDF performance datasheet.
