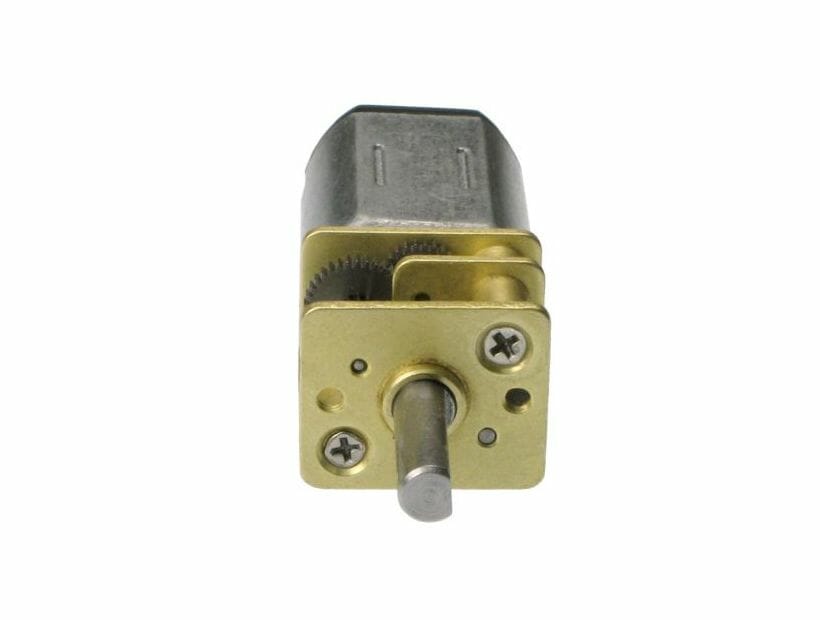

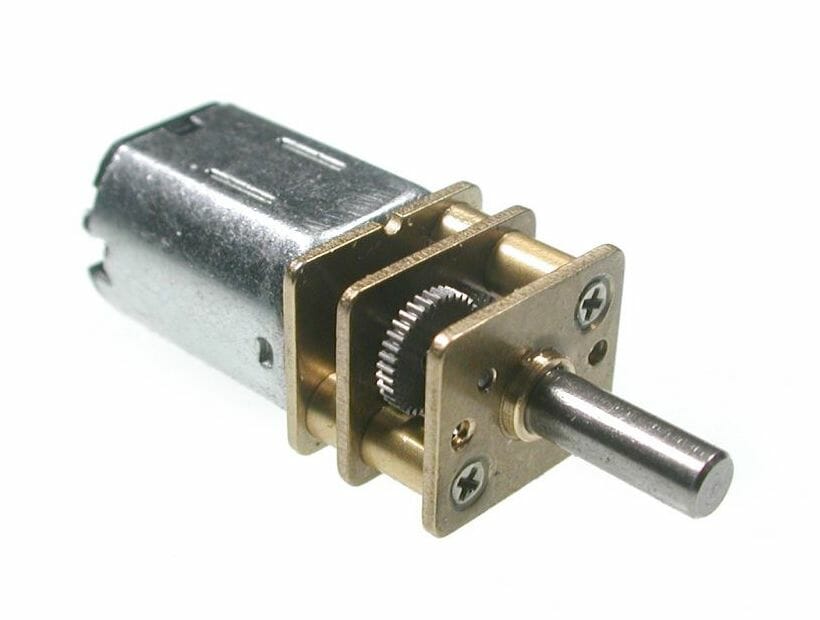

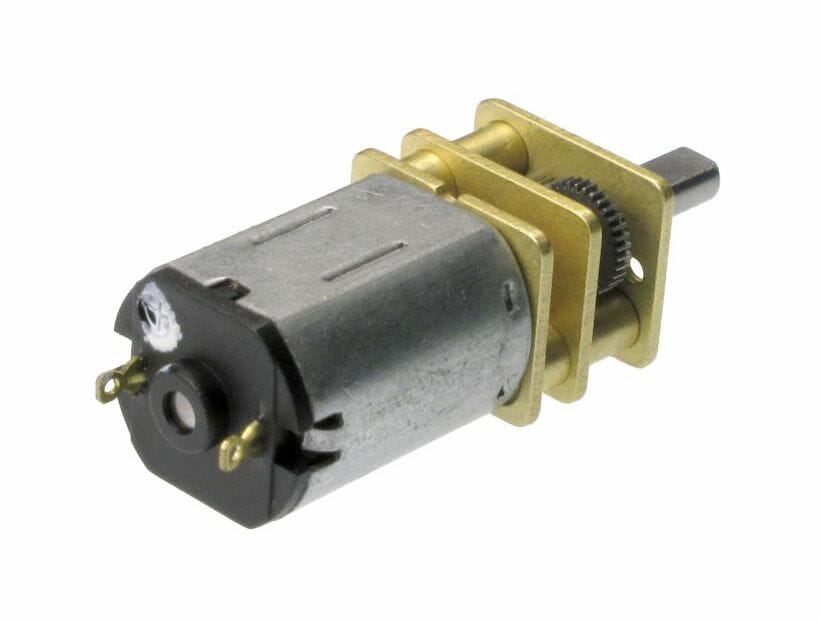

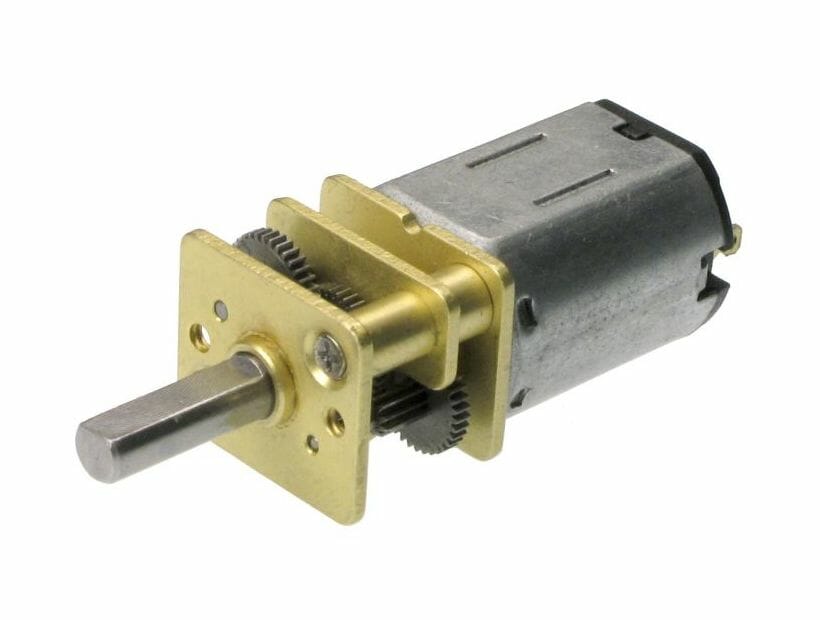

298:1 Mini Metal Gear Motor

GM14a

15.95 USD
Qty
Price
1
$15.95 ea.
2+
$12.85 ea.
50+
$11.95 ea.

A replacement for the GM14 that has more torque!


Description [Hide]

Practically identical to our GM14 Sanyo NA4S, this gear motor offers a bit more speed at less cost to you!

The major difference between this model and the GM14 is that the front faceplate is brass, not steel. For that trade-off, we're able to bring you a motor with similar performance at a better deal.

Running at 3V:

  • Free running RPM - 45
  • Free running Current - 33mA
  • Stall Torque - 35.1 in*oz
  • Stall Current - 589mA

Running at 6V:

  • Free running RPM - 77
  • Free running Current - 44mA
  • Stall Torque - 73.9 in*oz
  • Stall Current - 1059mA

Check out the Specs tab for additional statistics, or the resources tab for a downloadable PDF performance datasheet.
