150:1 Mini Metal Gear Motor

GM13a

15.95 USD
Qty
Price
1
$15.95 ea.
2+
$12.85 ea.
50+
$11.95 ea.

A bit slower than the GM13, but less current consumption. Less expensive, too!


Description [Hide]

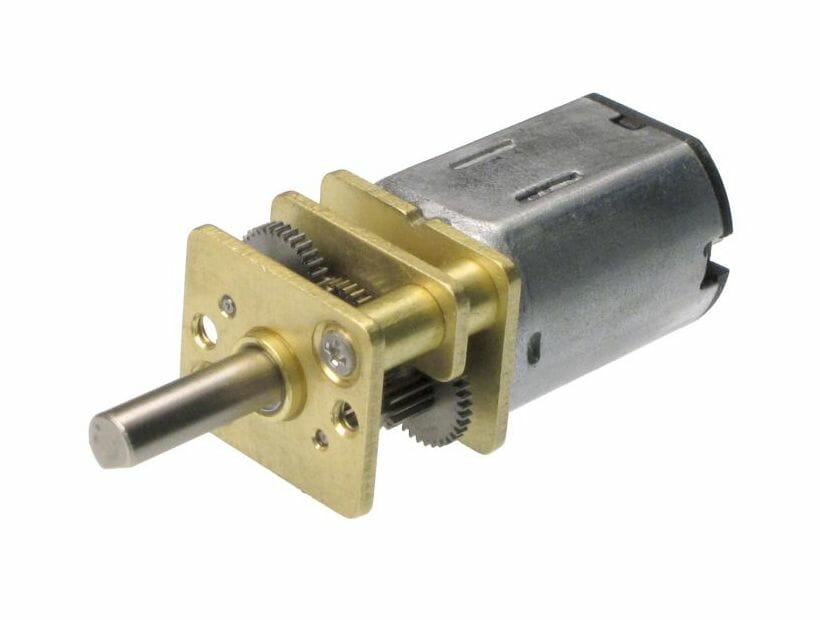

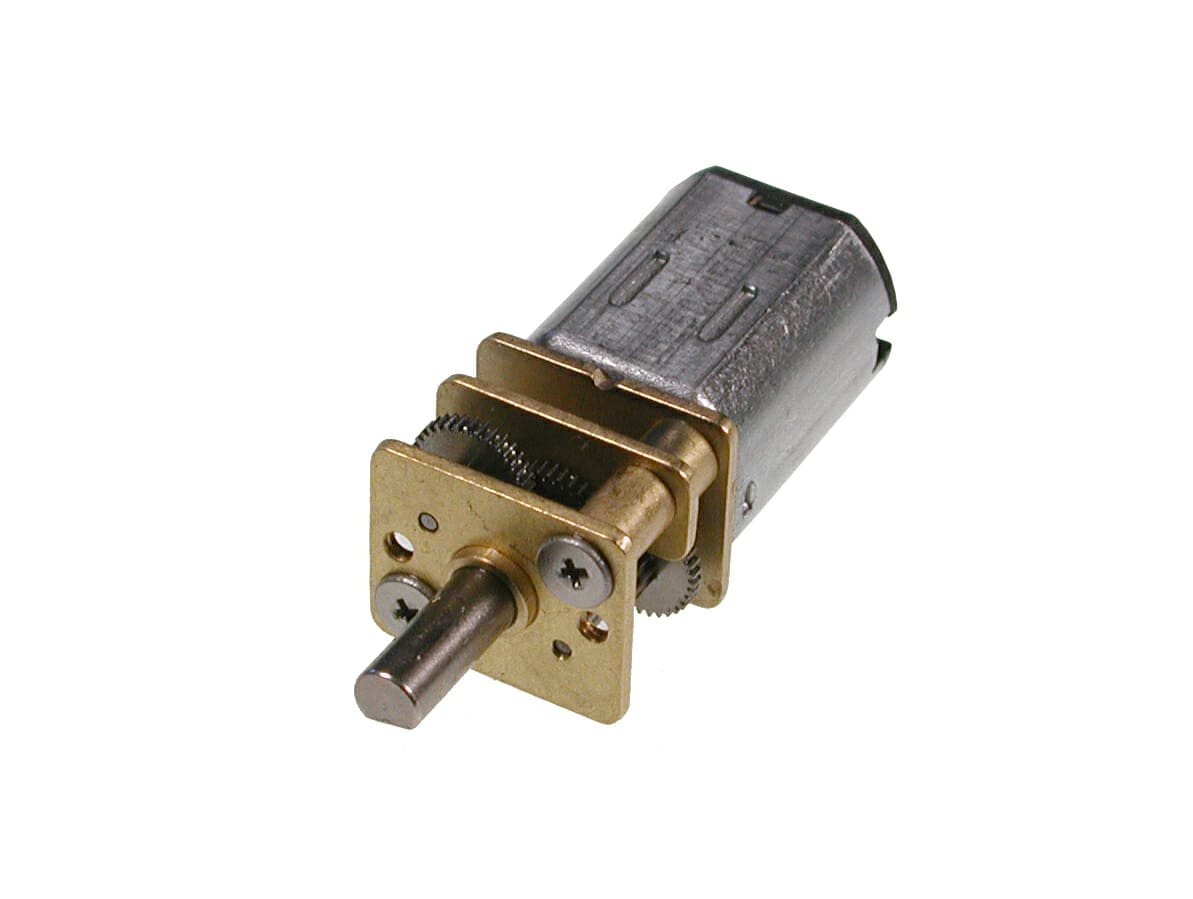

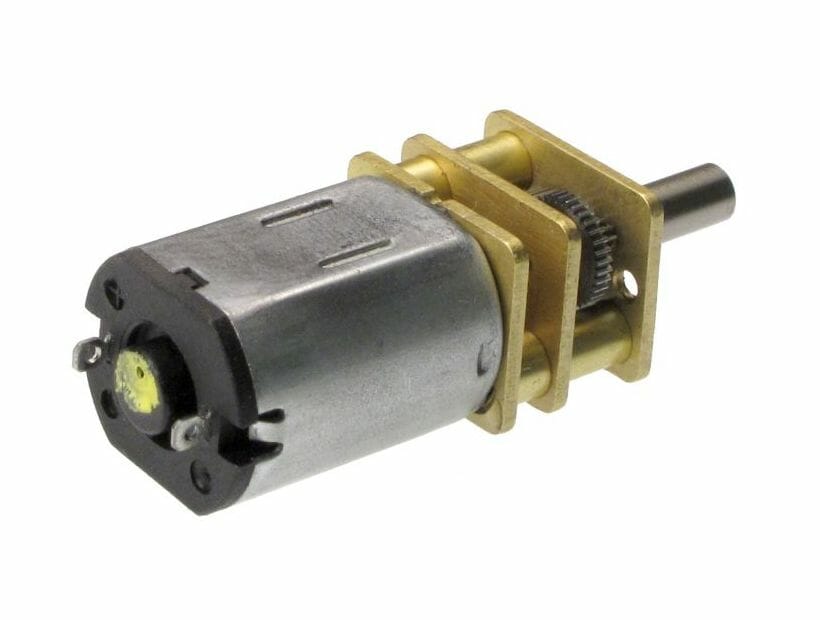

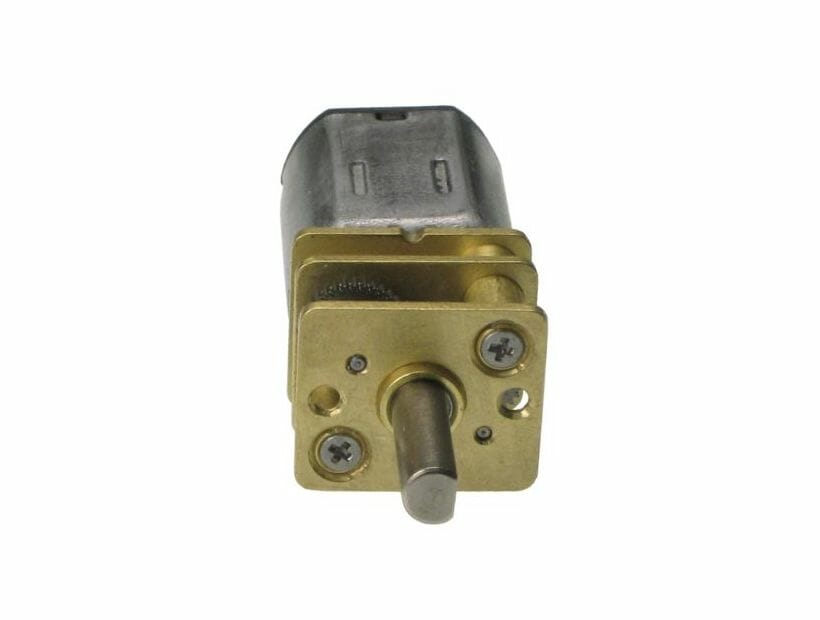

Practically identical to the now out-of-production GM13 Sanyo NA3S, this gear motor offers a bit more speed at less cost to you!

The major difference between this model and the GM13 is that the front faceplate is brass, not steel. For that trade-off, we're able to bring you a motor with similar performance at a better deal. Check the specifications:

Here are the performance measurements:

Running at 3V

  • Free running RPM - 58
  • Free running Current - 32mA
  • Stall Torque - 18.7 in*oz
  • Stall Current - 258mA

Running at 6V

  • Free running RPM - 109
  • Free running Current - 38mA
  • Stall Torque - 31.5 in*oz
  • Stall Current - 480mA

These motors have a shaft length of 8.6mm - check out the Specs tab for additional statistics, or the resources tab for a downloadable PDF performance datasheet.
