Gear Motor 10 - Geared pager motor

GM10

9.25 USD
Qty
Price
1
$9.25 ea.
50+
$8.75 ea.
100+
$8.50 ea.

Here by popular demand, and brought to you only from Solarbotics! The pager gear motor is geared 81:1 spins at 233 RPM and draws 13mA (118mA stall) at 3V giving 2.3in*oz.


Description [Hide]

81:1, 454RPM, 20mA (220mA stall) at 6V gives 3.17in*oz torque. Not bad, eh? And only available from Solarbotics!

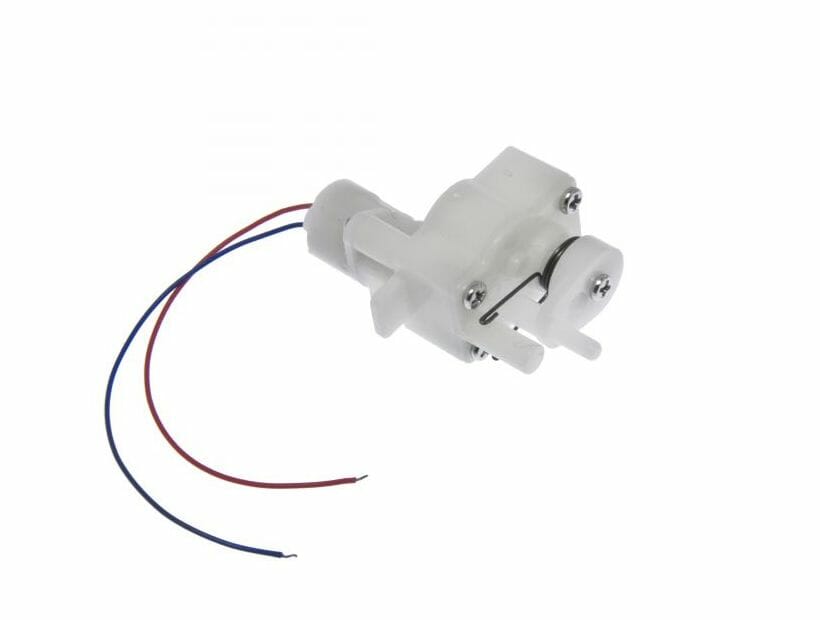

These little gear motors measure 20.8 x 29.0 x 25.4mm (0.82 x 1.14 x 1.00") and weigh in at 4.7g (0.17oz). The square output shaft measures 3.56mm (0.14") per side, and the leads measure 5cm (1.95") long.

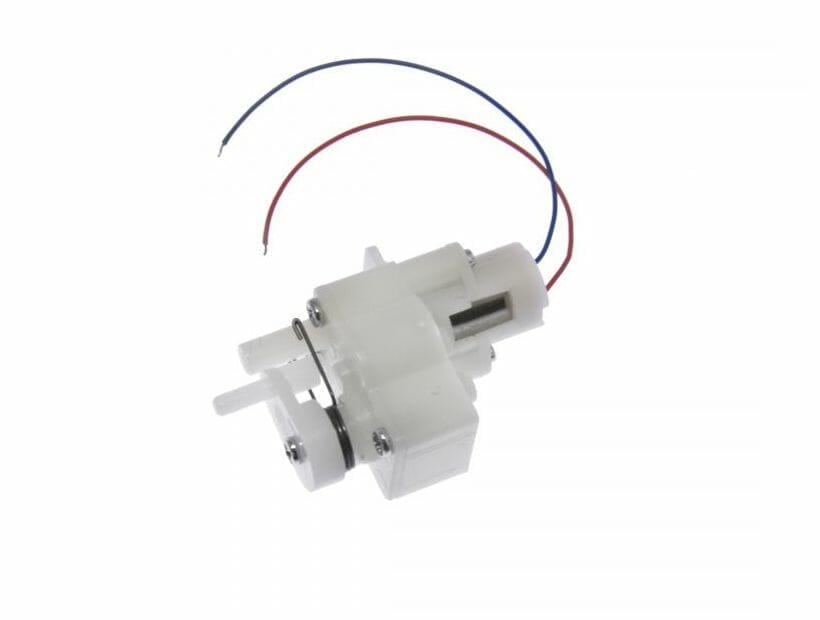

They're a bit funky in that they're not continuous rotation by default. They have a self-centering spring, so applying DC power will result in a 60 degree swing in one direction. Reversing power swings the output arm 60 degrees the other way. Remove the self-centering spring and clip the stops, and away you go!

This last picture is of our micro-sumo robot (5cm cube limit), and it is QUICK on a 7.4V LiPoly battery. These wheels and motors are a great combination!

Here's a link to a short gallery showing Bob Cook's "Al the Microsumo" using the GM10. VERY nice machining!
